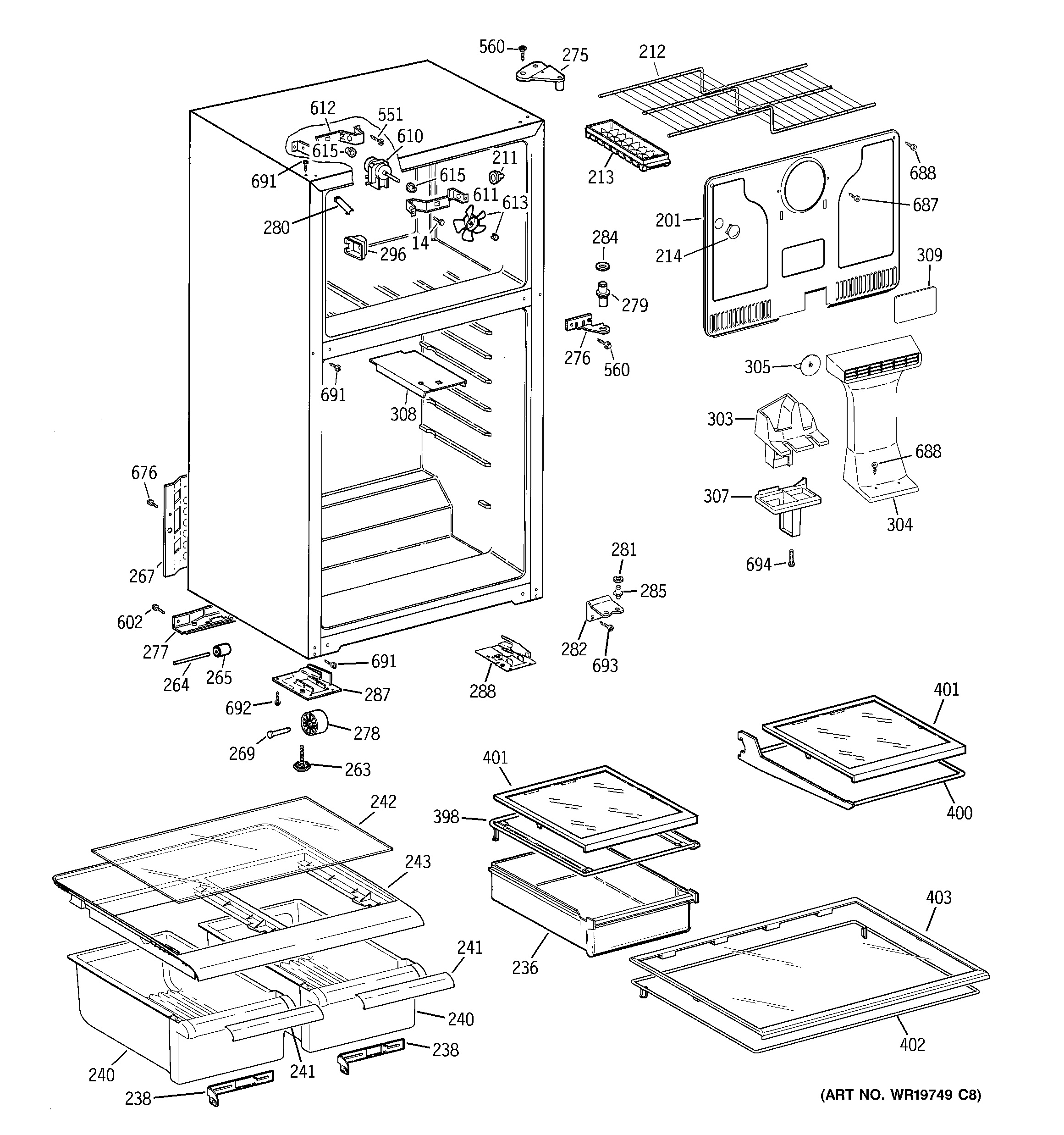

Assembly View for CABINET

14 — Diagram Number

SCREW 3-36 T HXW 3/8 S

WR01X10594

No Longer Available
Item has been replaced by
NLA ITEM

201 — Diagram Number

COVER EVAP ASM

WR17X11887

No Longer Available

Temporarily Out of Stock.

211 — Diagram Number

SUPPORT SHLF

WR02X8429

No Longer Available
Item has been replaced by
WR2X8429

212 — Diagram Number

Freezer Shelf Assembly

WR71X2086

^$92.34

Add to Cart

213 — Diagram Number

TRAY ICE MAKER

WR30X0311

No Longer Available
Item has been replaced by
WR30X311

214 — Diagram Number

REFRIGERATOR BUTTON PLUG

WR02X11760

^$6.07

Add to Cart

236 — Diagram Number

Refrigerator Meat Pan

WR32X1448

^$111.75

Add to Cart

238 — Diagram Number

SLIDE PAN VEG HUMIDITY

WR17X11658

No Longer Available
Item has been replaced by
NLA ITEM

240 — Diagram Number

PAN VEG HUMIDITY

WR32X10479

^$55.61

Add to Cart

241 — Diagram Number

TRIM VEG PAN HUMIDITY

WR38X10409

No Longer Available
Item has been replaced by
NLA ITEM

242 — Diagram Number

Refrigerator Glass Shelf

WR32X10480

^$96.08

Add to Cart

243 — Diagram Number

Refrigerator vegetable pan cover frame

WR17X11662

^$56.49

Add to Cart

263 — Diagram Number

GLIDER ADJ

WR02X7877

No Longer Available
Item has been replaced by
WR2X7877

264 — Diagram Number

AXLE WHEEL REAR

WR02X8214

No Longer Available
Item has been replaced by
NLA ITEM

265 — Diagram Number

WHEEL MOBILITY REAR

WR02X8245

No Longer Available
Item has been replaced by
NLA ITEM

267 — Diagram Number

COVER ACCESS

WR82X10112

No Longer Available
Item has been replaced by
NLA ITEM

269 — Diagram Number

REFRIGERATOR FRONT WHEEL AXLE

WR02X12267

No Longer Available
Item has been replaced by
NLA ITEM

275 — Diagram Number

HINGE TOP & PIN ASM

WR13X10332

No Longer Available

Temporarily Out of Stock.

276 — Diagram Number

HINGE CTR & PIN ASM

WR13X10420

No Longer Available

Temporarily Out of Stock.

277 — Diagram Number

REFRIGERATOR REAR SHELF RAIL

WR17X3188

No Longer Available
Item has been replaced by
NLA ITEM

278 — Diagram Number

WHEEL,REAR

WR02X8244

No Longer Available
Item has been replaced by
NLA ITEM

279 — Diagram Number

PIN HINGE CTR

WR02X8232

No Longer Available
Item has been replaced by
NLA ITEM

280 — Diagram Number

Refrigerator Corner Cap

WR02X10749

^$6.07

Add to Cart

281 — Diagram Number

WASHING MACHINE HINGE SHIM - BROWN

WR01X10146

No Longer Available
Item has been replaced by
WR01X27364

282 — Diagram Number

HINGE BTM

WR13X10331

No Longer Available
Item has been replaced by
NLA ITEM

284 — Diagram Number

SPACER DOOR FZ

WR01X1794

No Longer Available
Item has been replaced by
WR1X1794

285 — Diagram Number

Refrigerator metal hinge pin, with spacers

WR02X12238

No Longer Available
Item has been replaced by
WR02X27092

287 — Diagram Number

GUSSET LH

WR02X8709

No Longer Available
Item has been replaced by
NLA ITEM

288 — Diagram Number

GUSSET RH

WR02X8708

No Longer Available
Item has been replaced by
NLA ITEM

296 — Diagram Number

REFRIGERATOR ICE MAKER RECEPTACLE COVER

WR02X11123

^$6.07

Add to Cart

303 — Diagram Number

DUCT FOAM

WR02X12019

No Longer Available
Item has been replaced by
WR02X20092

304 — Diagram Number

DUCT AIR FZ

WR17X11891

No Longer Available
Item has been replaced by
NLA ITEM

305 — Diagram Number

REFRIGERATOR AIR ACTUATOR

WR02X12018

No Longer Available
Item has been replaced by
NLA ITEM

307 — Diagram Number

DIFFUSER AIR FF ASM

WR02X11793

No Longer Available
Item has been replaced by
NLA ITEM

309 — Diagram Number

REFRIGERATOR AIR DUCT GASKET

WR02X12020

No Longer Available
Item has been replaced by
NLA ITEM

398 — Diagram Number

SHELF GLASS FRAME M PAN

WR71X10088

No Longer Available
Item has been replaced by
NLA ITEM

400 — Diagram Number

Refrigerator Shelf Frame

WR71X10089

No Longer Available
Item has been replaced by
NLA ITEM

401 — Diagram Number

SHELF ENCAP SNAP ON

WR32X10125

No Longer Available
Item has been replaced by
NLA ITEM

402 — Diagram Number

Refrigerator Shelf Frame Without Glass

WR71X10845

No Longer Available

Temporarily Out of Stock.

403 — Diagram Number

SHELF FULL ASM ENCAP GLS

WR32X10481

No Longer Available
Item has been replaced by
NLA ITEM

551 — Diagram Number

Refrigerator 8-18 ab rndw 5/8 Screw

WR01X10789

^$5.67

Add to Cart

560 — Diagram Number

Screw

WR01X1249

No Longer Available
Item has been replaced by
NLA ITEM

602 — Diagram Number

SCR 1/4-14 AB IHW 3/4 S

WR01X10592

No Longer Available
Item has been replaced by
WR01X10617

610 — Diagram Number

MOTOR EVAP FAN

WR60X10285

No Longer Available
Item has been replaced by
WR60X21886

613 — Diagram Number

Refrigerator Evaporator Fan Blade

WR60X10205

^$12.71

Add to Cart

615 — Diagram Number

GROMMET EVAP FAN

WR02X13132

No Longer Available
Item has been replaced by
NLA ITEM

676 — Diagram Number

SCREW 10-16 AB HXW 1/2

WZ04X0263

No Longer Available
Item has been replaced by
NLA ITEM

687 — Diagram Number

SCR 8-15 AB IHXW 1/2 S

WR01X10589

^$6.07

Add to Cart

688 — Diagram Number

SCR 8-19 HI/LO TRP 1 S

WR01X10448

^$6.82

Add to Cart

691 — Diagram Number

SCREW 12-24 TT .700

WR01X1753

No Longer Available
Item has been replaced by
NLA ITEM

692 — Diagram Number

Refrigerator rear top corner cap mounting screw

WR01X10593

^$5.67

Add to Cart

693 — Diagram Number

SCR 12-24 TT OVT20 .900

WR01X10591

^$5.40

Add to Cart

694 — Diagram Number

SCREW 8-19 HI/LO PNP SS

WR01X1792

No Longer Available
Item has been replaced by
NLA ITEM

CABINET

(GTL17JBWDRBS)

53 Results
