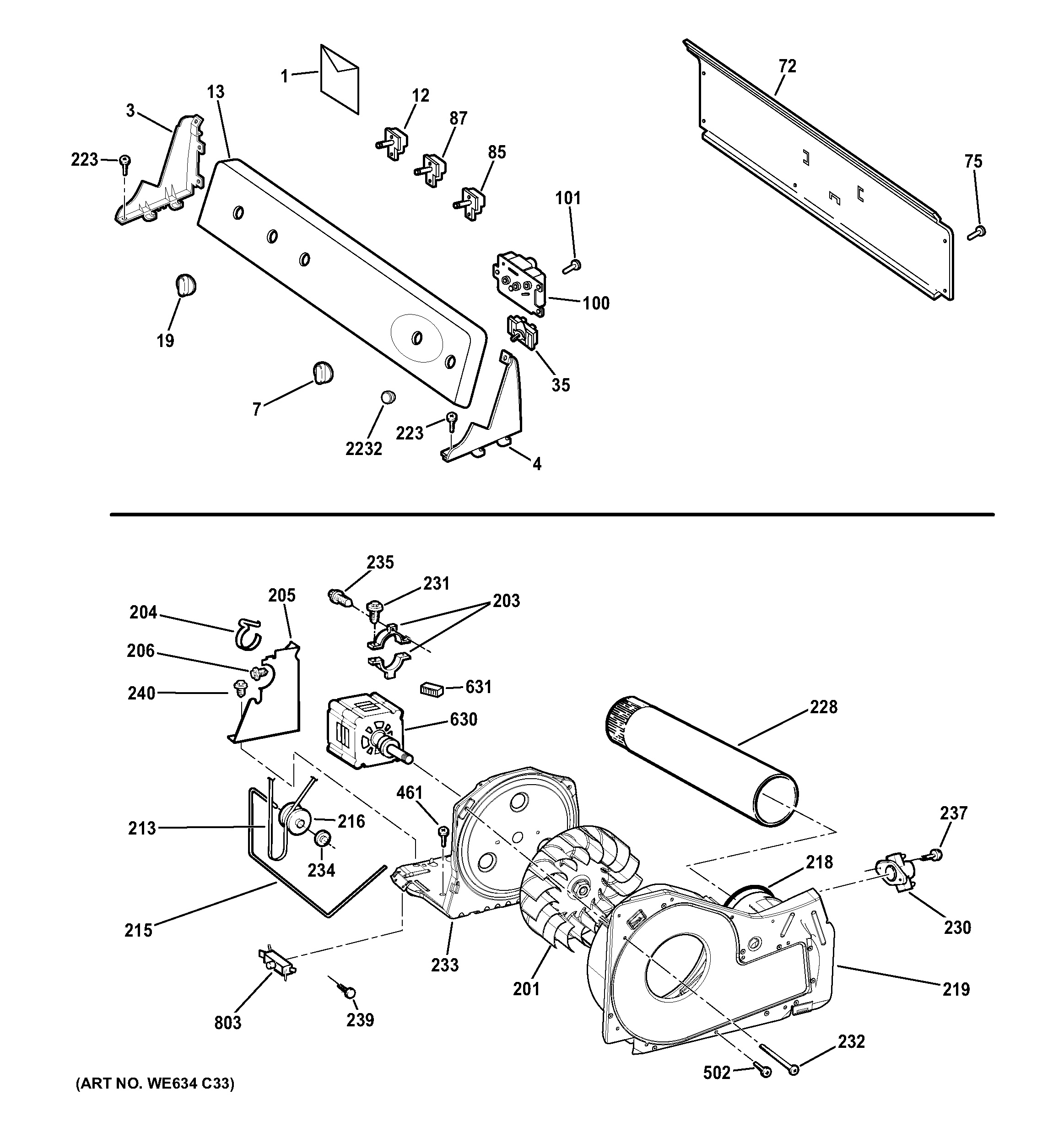

Assembly View for BACKSPLASH, BLOWER & MOTOR ASSEMBLY

3 — Diagram Number

END CAP RH

WE19X20466

No Longer Available
Item has been replaced by
NLA ITEM

4 — Diagram Number

END CAP LH

WE19X20467

^$10.29

Add to Cart

7 — Diagram Number

Dryer timer knob

WE1M856

No Longer Available
Item has been replaced by
WE01X20374

12 — Diagram Number

VARIABLE BUZZER

WE4M368

No Longer Available
Item has been replaced by
NLA ITEM

13 — Diagram Number

BACKSPLASH GRAPHIC ASSEMBLY

WE19X20573

No Longer Available
Item has been replaced by
NLA ITEM

19 — Diagram Number

KNOB AND CLIP ASM

WE01X20432

No Longer Available
Item has been replaced by
WE01X20378

35 — Diagram Number

Dryer Push To Start Switch

WE4M416

^$23.22

Add to Cart

72 — Diagram Number

PANEL BACK

WE19M1481

^$57.02

Add to Cart

75 — Diagram Number

Attachment screw phillips head

WE2M173

No Longer Available
Item has been replaced by
NLA ITEM

85 — Diagram Number

Dryer Rocker Switch

WE4M399

No Longer Available
Item has been replaced by
NLA ITEM

87 — Diagram Number

Dryer Temperature Control Switch

WE4M520

No Longer Available
Item has been replaced by
NLA ITEM

100 — Diagram Number

TIMER

WE04X20089

^$77.58

Add to Cart

101 — Diagram Number

SCR 30 X 20 IA PP

WE02X20846

No Longer Available
Item has been replaced by
NLA ITEM

201 — Diagram Number

BLOWER WHEEL

WE16X20393

^$37.85

Add to Cart

203 — Diagram Number

STRAP MOTOR

WE13X0200

No Longer Available
Item has been replaced by
WE13X30697

204 — Diagram Number

Dryer Motor Strap

WE1X921

^$32.42

Add to Cart

205 — Diagram Number

MOTOR SUPPORT

WE13M39

^$36.38

Add to Cart

206 — Diagram Number

SCREW GROUND

WE2M200

^$6.84

Add to Cart

213 — Diagram Number

BELT DRIVE

WE12X21574

No Longer Available
Item has been replaced by
WE03X29897

215 — Diagram Number

IDLER ARM

WE03X20434

^$86.83

Add to Cart

216 — Diagram Number

IDLER PULLEY

WE12X20395

No Longer Available
Item has been replaced by
WE03X31620

218 — Diagram Number

Dryer blower gasket (exhaust)

WE1M966

No Longer Available
Item has been replaced by
WE09X27636

219 — Diagram Number

BLOWER HOUSING ASM

WE14X20392

No Longer Available
Item has been replaced by
NLA ITEM

223 — Diagram Number

SCREW

WE2M189

No Longer Available
Item has been replaced by
NLA ITEM

228 — Diagram Number

EXHAUST DUCT

WE14X20421

No Longer Available
Item has been replaced by
NLA ITEM

230 — Diagram Number

THERMOSTAT BIAS DRUM OUT

WE4M216

^$90.32

Add to Cart

231 — Diagram Number

SCREW

WE2M187

No Longer Available
Item has been replaced by
WD02X10057

232 — Diagram Number

Screw

WE2M202

^$7.61

Add to Cart

233 — Diagram Number

MOTOR PLATE

WE13X20394

No Longer Available
Item has been replaced by
NLA ITEM

234 — Diagram Number

Dryer Nut/Cap

WE2M96

^$7.37

Add to Cart

235 — Diagram Number

SCR 10-16 X 1/2 AB

WE2M307

^$6.38

Add to Cart

237 — Diagram Number

SCREW

WE2M154

No Longer Available
Item has been replaced by
WD02X10057

239 — Diagram Number

SCR 6-20x0.84 AB PAN 6 QUADREX 1

WE2M167

No Longer Available
Item has been replaced by
WR2X9260

240 — Diagram Number

SCREW

WE1M280

^$7.59

Temporarily Out of Stock.

461 — Diagram Number

SCREW, GROUND

WZ05X0158

No Longer Available
Item has been replaced by
WZ5X158D

502 — Diagram Number

Clothes Dryer Screw #10 size

WE2M174

^$7.61

Add to Cart

630 — Diagram Number

MOTOR

WE17M66

No Longer Available
Item has been replaced by
WE17X22217

631 — Diagram Number

CONNECTOR MOTOR

WE1M650

No Longer Available
Item has been replaced by
NLA ITEM

803 — Diagram Number

SWITCH INTERLOCK

WD21X0557

No Longer Available
Item has been replaced by
WD21X10261

2232 — Diagram Number

Clothes dryer push to start button

WE1M659

^$7.20

Add to Cart

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

(GTDP280GD4WW)
