FRONT PANEL DOOR

(GTDP180ED0WW)

20 Results

See Parts List

1-877-959-8688

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger  |  Change Section/Diagram

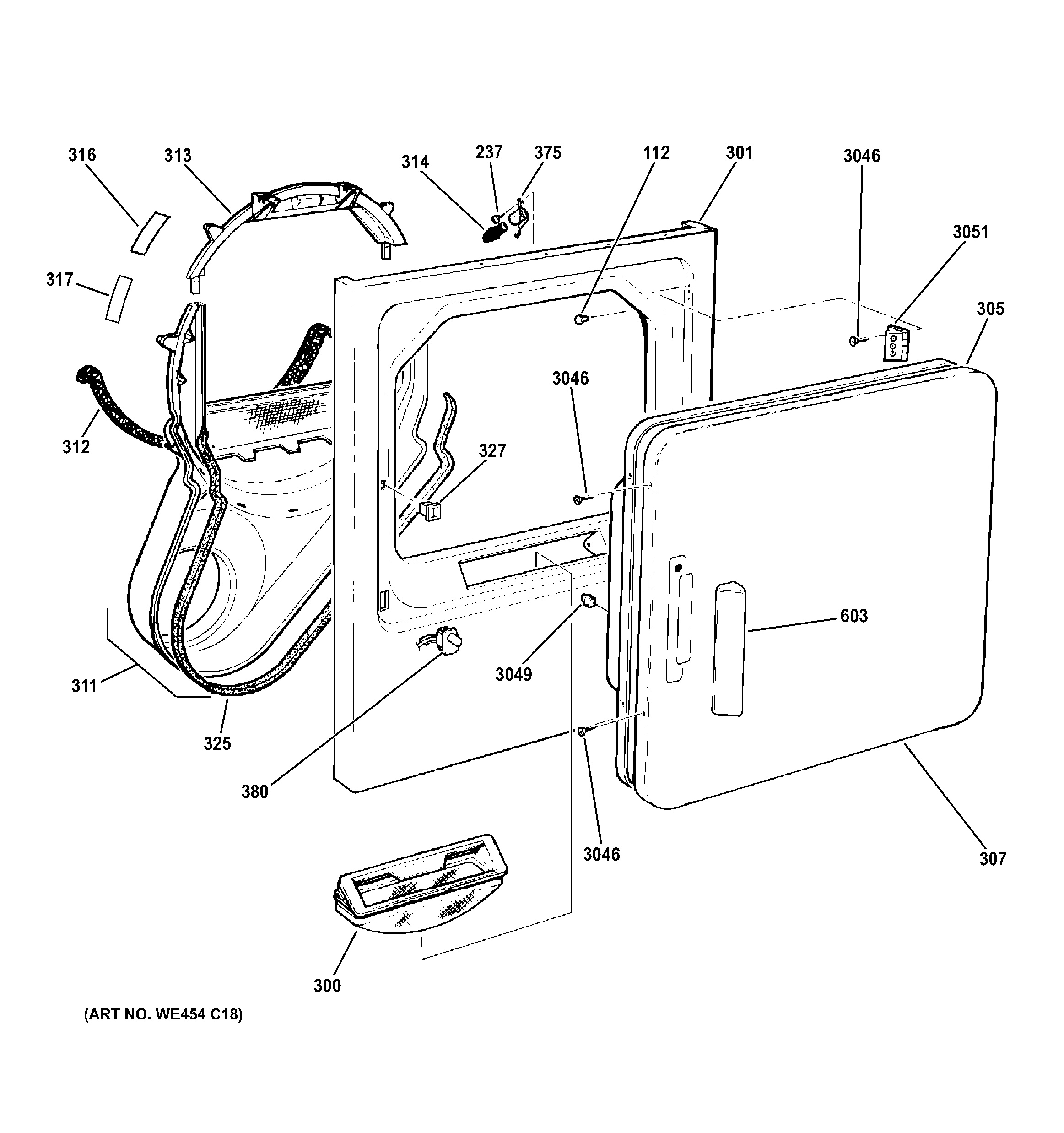

Use the diagram to find the number of the part you need.

Product Image
112 — Diagram Number
BEAUTY BUTTON-WHT

WR02X8693

No Longer Available
Item has been replaced by
WR01X21159

Product Image
237 — Diagram Number
SCREW

WE2M154

No Longer Available
Item has been replaced by
WD02X10057

Product Image
300 — Diagram Number
Dryer Lint Filter

WE18M53

No Longer Available
Item has been replaced by
WE18X25100

Product Image
301 — Diagram Number
FRONT PANEL WH

WE20M405

No Longer Available
Item has been replaced by
WE49X22295

Product Image
305 — Diagram Number
INNER DOOR&GSKT WH

WE10M111

No Longer Available
Item has been replaced by
WE49X22295

Product Image
307 — Diagram Number
OUTER DOOR WH

WE10M102

No Longer Available
Item has been replaced by
NLA ITEM

311 — Diagram Number
Dryer Air Duct Assembly

WE14M92

No Longer Available
Item has been replaced by
WE14X25080

312 — Diagram Number
Lower front drum dryer felt seal

WE9M30

No Longer Available
Item has been replaced by
WE09X27634

313 — Diagram Number
Dryer Front Drum Bearing

WE3M26

$36.80

Temporarily Out of Stock.

314 — Diagram Number
Dryer light bulb, 120 volt, 10 watts

WE4M305

No Longer Available
Item has been replaced by
WE05X20431

316 — Diagram Number
Dryer Front Bearing Drum Slide, Green

WE1M1067

No Longer Available
Item has been replaced by
WE03X37317

317 — Diagram Number
Dryer Front Bearing Drum Slide, White

WE1M504

No Longer Available
Item has been replaced by
WE03X37318

Product Image
325 — Diagram Number
GASKET SEAL HSNG EXH

WE00M169

No Longer Available
Item has been replaced by
WE1M825

327 — Diagram Number
Dryer Door Latch

WE1M536

No Longer Available
Item has been replaced by
WE1M1011

375 — Diagram Number
SOCKET ASM

WE5M48

No Longer Available
Item has been replaced by
NLA ITEM

380 — Diagram Number
Dryer Door Switch

WE4M415

$23.26

  Add to Cart

603 — Diagram Number
HANDLE DOOR

WE1M1026

No Longer Available
Item has been replaced by
WE01X20419

3046 — Diagram Number
Dryer Screw

WE2M196

$7.59

  Add to Cart

Product Image
3049 — Diagram Number
STRIKE DOOR

WE01X1192

No Longer Available
Item has been replaced by
WE1X1192

3051 — Diagram Number
Dryer Door Hinge

WE1M505

No Longer Available
Item has been replaced by
WE1M1033
