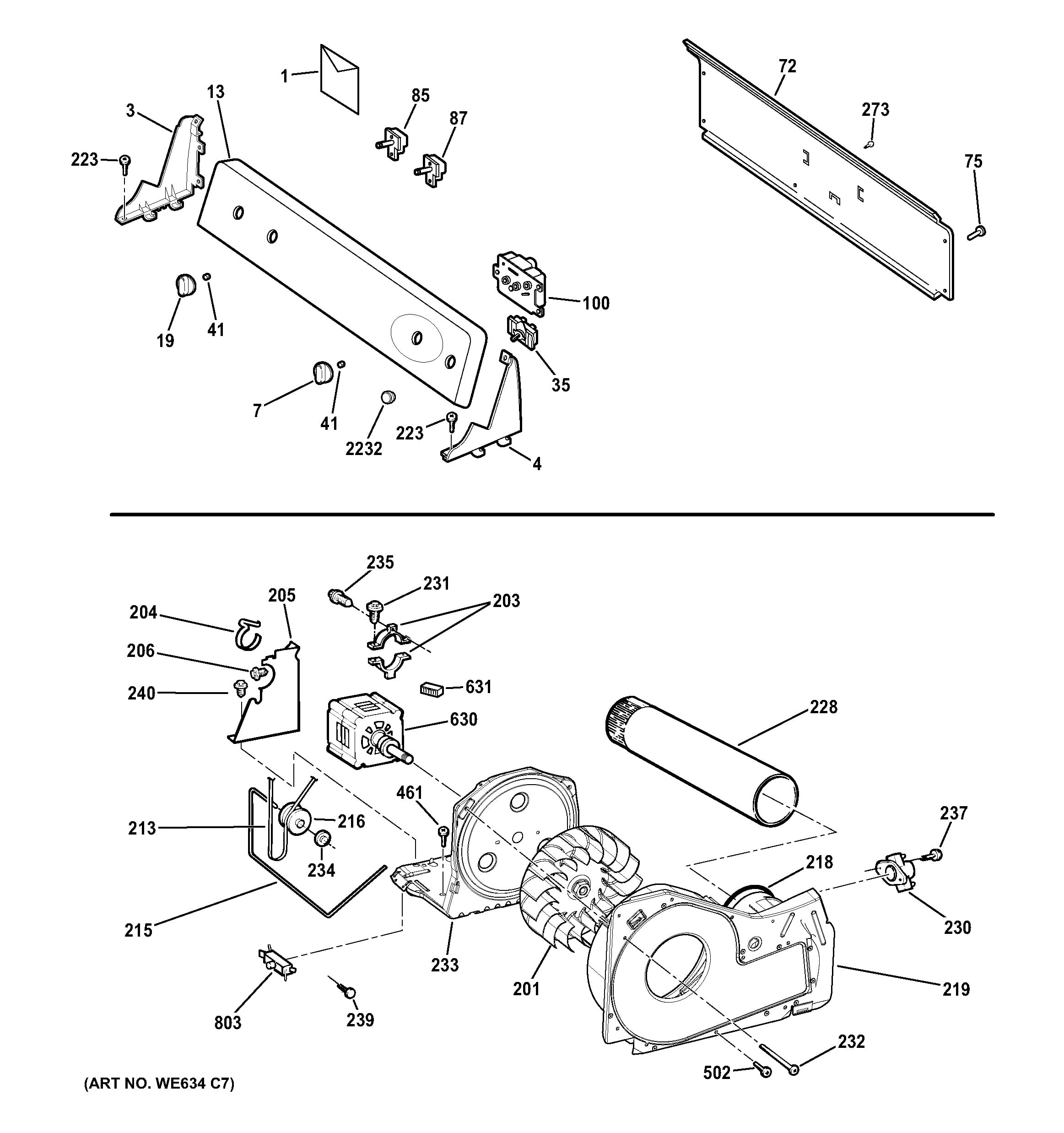

Assembly View for BACKSPLASH, BLOWER & DRIVE ASSEMBLY

3 — Diagram Number

END CAP LH WH

WE19M1474

No Longer Available
Item has been replaced by
WE49X22294

4 — Diagram Number

END CAP RH WH

WE19M1473

No Longer Available
Item has been replaced by
WE19X20467

7 — Diagram Number

Dryer timer knob

WE1M856

No Longer Available
Item has been replaced by
WE01X20374

13 — Diagram Number

BACKSPLASH ASM. WHITE

WE19M1722

No Longer Available
Item has been replaced by
WE19X22614

19 — Diagram Number

KNOB AND CLIP ASM

WE01X20432

No Longer Available
Item has been replaced by
WE01X20378

35 — Diagram Number

Dryer Push To Start Switch

WE4M416

^$23.22

Add to Cart

41 — Diagram Number

DRYER METAL KNOB CLIP INSERT

WE1X980

No Longer Available
Item has been replaced by
NLA ITEM

72 — Diagram Number

PANEL BACK

WE19M1725

No Longer Available
Item has been replaced by
WE19M1481

75 — Diagram Number

Attachment screw phillips head

WE2M173

No Longer Available
Item has been replaced by
NLA ITEM

85 — Diagram Number

Dryer Rocker Switch

WE4M399

No Longer Available
Item has been replaced by
NLA ITEM

87 — Diagram Number

ROTARY SWITCH 4TEMP REG

WE4M407

^$117.80

Add to Cart

100 — Diagram Number

DRYER TIMER

WE4M533

^$87.68

Add to Cart

201 — Diagram Number

BLOWER WHEEL W/NUT INSER

WE16M17

No Longer Available
Item has been replaced by
WE16X20393

203 — Diagram Number

STRAP MOTOR

WE13X0200

No Longer Available
Item has been replaced by
WE13X30697

204 — Diagram Number

Dryer Motor Strap

WE1X921

^$32.42

Add to Cart

205 — Diagram Number

MOTOR SUPPORT

WE13M39

^$36.38

Add to Cart

206 — Diagram Number

SCREW GROUND

WE2M200

^$6.84

Add to Cart

213 — Diagram Number

DRYER DRUM DRIVE BELT

WE12M29

No Longer Available
Item has been replaced by
WE03X29897

215 — Diagram Number

IDLER ARM SPRING

WE3M25

No Longer Available
Item has been replaced by
WE03X20434

216 — Diagram Number

PULLEY IDLER

WE12M8

No Longer Available
Item has been replaced by
WE03X31620

218 — Diagram Number

GASKET SEAL, HSNG EXH.

WE1M473

No Longer Available
Item has been replaced by
WE09X27636

219 — Diagram Number

BLOWER HOUSING ASM

WE14M199

No Longer Available
Item has been replaced by
NLA ITEM

223 — Diagram Number

SCREW

WE2M189

No Longer Available
Item has been replaced by
NLA ITEM

228 — Diagram Number

ELBOW EXHAUST

WE14M90

No Longer Available
Item has been replaced by
NLA ITEM

230 — Diagram Number

THERMOSTAT BIAS DRUM OUT

WE4M216

^$90.32

Add to Cart

231 — Diagram Number

SCREW

WE2M187

No Longer Available
Item has been replaced by
WD02X10057

232 — Diagram Number

Screw

WE2M202

^$7.61

Add to Cart

233 — Diagram Number

PLATE MOTOR

WE13M65

No Longer Available
Item has been replaced by
NLA ITEM

234 — Diagram Number

Dryer Nut/Cap

WE2M96

^$7.37

Add to Cart

235 — Diagram Number

SCR 10-16 X 1/2 AB

WE2M307

^$6.38

Add to Cart

237 — Diagram Number

SCREW

WE2M154

No Longer Available
Item has been replaced by
WD02X10057

239 — Diagram Number

SCR 6-20x0.84 AB PAN 6 QUADREX 1

WE2M167

No Longer Available
Item has been replaced by
WR2X9260

240 — Diagram Number

SCREW

WE1M280

^$7.59

Temporarily Out of Stock.

273 — Diagram Number

SCREW NO.8 ( GROUND )

WE2M228

^$7.59

Add to Cart

461 — Diagram Number

SCREW, GROUND

WZ05X0158

No Longer Available
Item has been replaced by
WZ5X158D

502 — Diagram Number

Clothes Dryer Screw #10 size

WE2M174

^$7.61

Add to Cart

630 — Diagram Number

Dryer motor third shaft and pulley

WE17M37

No Longer Available
Item has been replaced by
WE17X22217

631 — Diagram Number

CONNECTOR MOTOR

WE1M650

No Longer Available
Item has been replaced by
NLA ITEM

803 — Diagram Number

SWITCH INTERLOCK

WD21X0557

No Longer Available
Item has been replaced by
WD21X10261

2232 — Diagram Number

Clothes dryer push to start button

WE1M659

^$7.20

Add to Cart

BACKSPLASH, BLOWER & DRIVE ASSEMBLY

(GTDP180ED0WW)

40 Results
