DOOR KIT

(GSS25QFMBBB)

32 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

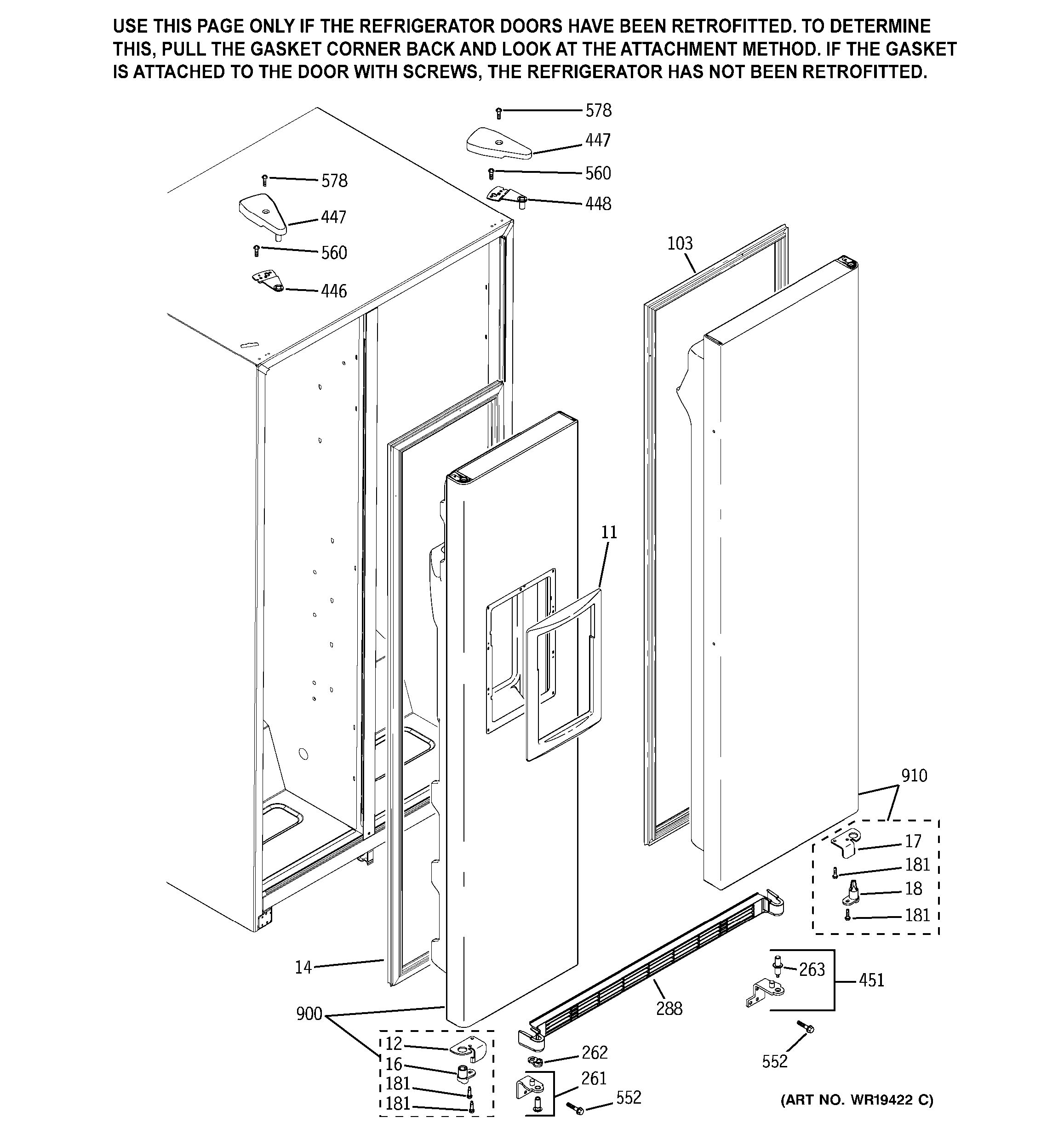

Use the diagram to find the number of the part you need.

11 — Diagram Number

TRIM RECESS DISP BK

WR38X10202

No Longer Available
Item has been replaced by
NLA ITEM

12 — Diagram Number

PLATE DOOR STOP FZ BK

WR02X10608

No Longer Available
Item has been replaced by
WR02X11466

14 — Diagram Number

GASKET DOOR FZ BLACK

WR24X10056

No Longer Available
Item has been replaced by
NLA ITEM

16 — Diagram Number

HINGE CAM & THIMBLE FZ

WR02X10566

No Longer Available
Item has been replaced by
NLA ITEM

17 — Diagram Number

PLATE DOOR STOP FF BK

WR02X10607

No Longer Available
Item has been replaced by
WR02X11465

18 — Diagram Number

HINGE CAM & THIMBLE FF

WR02X10567

No Longer Available

Temporarily Out of Stock.

87 — Diagram Number

SCREW IM MTG.

WZ04X0241

No Longer Available
Item has been replaced by
WZ4X241D

98 — Diagram Number

SCREW 8-36 T IHW 3/8 SN

WR01K0001

No Longer Available
Item has been replaced by
WR1K1

103 — Diagram Number

GASKET DOOR FF BK

WR24X10055

No Longer Available

Temporarily Out of Stock.

134 — Diagram Number

SCREW 6-10 PL FLP 1/2 S

WR01X10019

^$6.07

Add to Cart

153 — Diagram Number

SCREW RECESS DISP

WR01X1505

No Longer Available
Item has been replaced by
WR1X1505D

180 — Diagram Number

SCREW 6-32 PL IHW 3/8

WR01X1966

No Longer Available
Item has been replaced by
WE02X10011

181 — Diagram Number

SCR 10-32 TT HXW 3/4 S

WR01X10215

No Longer Available
Item has been replaced by
NLA ITEM

261 — Diagram Number

THRUST WASHER

WR01X10202

No Longer Available

Temporarily Out of Stock.

262 — Diagram Number

Refrigerator Cam Riser Closure Black

WR02X10568

No Longer Available

Temporarily Out of Stock.

263 — Diagram Number

PIN HINGE BTM ADJ

WR02X10592

No Longer Available
Item has been replaced by
NLA ITEM

264 — Diagram Number

Refrigerator Wheel

WR02X10695

^$7.87

Add to Cart

288 — Diagram Number

GRILLE BASE ASM BK

WR74X10056

No Longer Available

Temporarily Out of Stock.

446 — Diagram Number

HINGE TOP ASM FZ

WR13X10121

No Longer Available

Temporarily Out of Stock.

447 — Diagram Number

COVER HINGE BK

WR02X10609

No Longer Available

Temporarily Out of Stock.

448 — Diagram Number

HINGE TOP ASM FF

WR13X10122

No Longer Available

Temporarily Out of Stock.

451 — Diagram Number

HINGE BTM & PIN ASM

WR13X10154

No Longer Available

Temporarily Out of Stock.

551 — Diagram Number

Screw (8-18 AB RND 5/8SS

WZ04X0244

No Longer Available
Item has been replaced by
NLA ITEM

552 — Diagram Number

SCR 12-24 TT IH .975 S

WR01X10034

No Longer Available
Item has been replaced by
WR01X10600

556 — Diagram Number

HOUSING TERMINAL

WH12X0497

No Longer Available
Item has been replaced by
NLA ITEM

560 — Diagram Number

SCR 12-24 CA HX 7/8 S

WR01X10195

No Longer Available
Item has been replaced by
WR01X10650

578 — Diagram Number

SCREW 8-32 X 3/8

WZ02X0503

No Longer Available
Item has been replaced by
WZ2X464D

676 — Diagram Number

SCREW 10-16 AB HXW 1/2

WZ04X0263

No Longer Available
Item has been replaced by
NLA ITEM

686 — Diagram Number

SCREW 10-32 TT HXW 5/16

WR01X10252

No Longer Available
Item has been replaced by
WR01X10654

738 — Diagram Number

CLIP COND LOOP

WR02X7064

No Longer Available
Item has been replaced by
WR2X7064

805 — Diagram Number

CLAMP TUBE

WR02X3736

No Longer Available
Item has been replaced by
WR1X5278

900 — Diagram Number

DOOR FOAM ASSY FZ BLACK

WR78X10342

No Longer Available
Item has been replaced by
NLA ITEM
