FREEZER DOOR

(GSS25IYNEHFS)

30 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

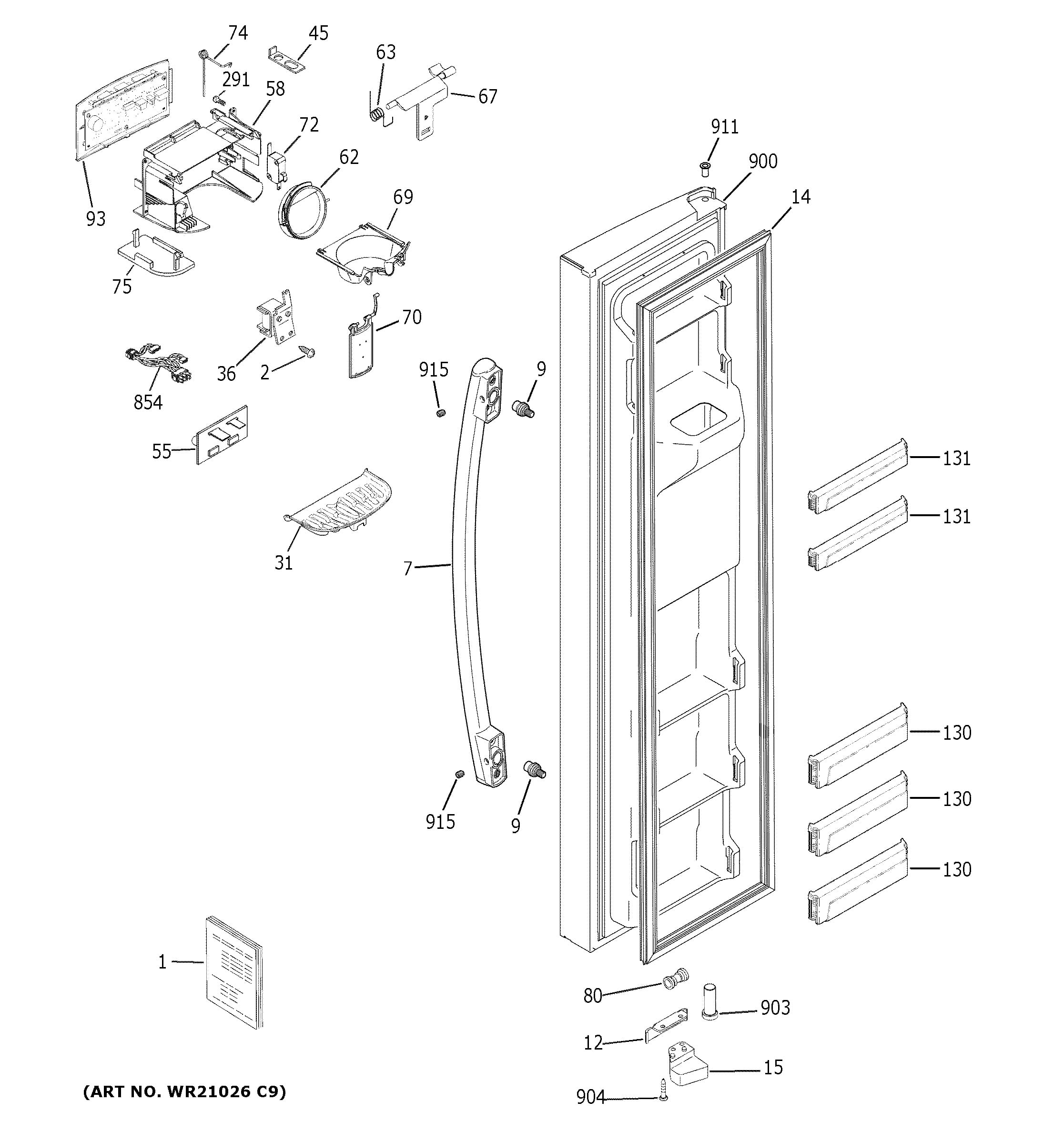

Use the diagram to find the number of the part you need.

2 — Diagram Number

SCR 4-24 PL PNP 3/4

WR02X12257

^$8.64

Add to Cart

7 — Diagram Number

DOOR HANDLE - STAINLESS STEEL

WR12X31076

^$80.86

Temporarily Out of Stock.

9 — Diagram Number

Refrigerator door handle fastener

WR01X11007

^$6.07

Add to Cart

12 — Diagram Number

FRESH FOOD DOOR STOP BLACK

WR01X28629

^$19.07

Add to Cart

14 — Diagram Number

GASKET

WR24X20455

^$78.08

Add to Cart

15 — Diagram Number

CAM CLOSURE FZ BK

WR02X10780

^$9.67

Add to Cart

31 — Diagram Number

SILVER DRIP TRAY

WR17X30997

^$41.75

Add to Cart

36 — Diagram Number

Refrigerator dispenser solenoid assembly

WR62X10055

^$51.27

Add to Cart

45 — Diagram Number

RETAINER RECESS DOOR

WR02X8818

No Longer Available
Item has been replaced by
WR2X8818

55 — Diagram Number

Refrigerator LED Light Board

WR55X10899

^$47.86

Add to Cart

58 — Diagram Number

HOUSING SHIELD DISP

WR17X12132

No Longer Available
Item has been replaced by
WR17X34251

62 — Diagram Number

Refrigerator dispenser door flap

WR17X11653

^$14.79

Temporarily Out of Stock.

63 — Diagram Number

Recess door spring

WR02X10585

^$6.08

Add to Cart

67 — Diagram Number

Refrigerator recessed door crank

WR17X10706

^$6.07

Add to Cart

69 — Diagram Number

DISPENSER ICE FUNNEL

WR17X21781

^$25.50

Add to Cart

70 — Diagram Number

PADDLE DISPENSER

WR17X27912

^$39.78

Add to Cart

72 — Diagram Number

SWITCH

WR23X10783

^$50.23

Add to Cart

74 — Diagram Number

SPRING TORSION

WR02X12256

^$8.81

Add to Cart

75 — Diagram Number

REFRIGERATOR LED HOUSING COVER

WR02X13405

^$8.56

Add to Cart

80 — Diagram Number

Refrigerator Quick Connector for Plastic Water Line 5/16 in. to 5/16 in.

WR02X11330

^$6.06

Temporarily Out of Stock.

93 — Diagram Number

GREY USER INTERFACE AND BOARD

WR55X31006

^$156.94

Add to Cart

130 — Diagram Number

SHELF DOOR FZ BOTTOM

WR71X24432

No Longer Available
Item has been replaced by
WR71X38335

131 — Diagram Number

SHELF DOOR FZ UPPER

WR71X24431

No Longer Available
Item has been replaced by
WR17X38320

291 — Diagram Number

SCREW 8-10 PL PNP 1/2 S

WR01X10221

No Longer Available
Item has been replaced by
WR01X10649

854 — Diagram Number

HARNESS RECESS DISP

WR23X10695

^$18.02

Add to Cart

900 — Diagram Number

SS FREEZER DOOR

WR78X30998

^$526.19

Add to Cart

903 — Diagram Number

THIMBLE DOOR

WR01X10953

^$8.58

Add to Cart

904 — Diagram Number

SCR 10-16

WR01X10582

No Longer Available
Item has been replaced by
WR01X10611

911 — Diagram Number

THIMBLE DOOR TOP BB

WR01X10975

^$7.01

Add to Cart

915 — Diagram Number

SET SCREW (9.5MM)

WR01X20424

^$6.13

Add to Cart
