FREEZER SECTION

(GSS23GYPBCFS)

38 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

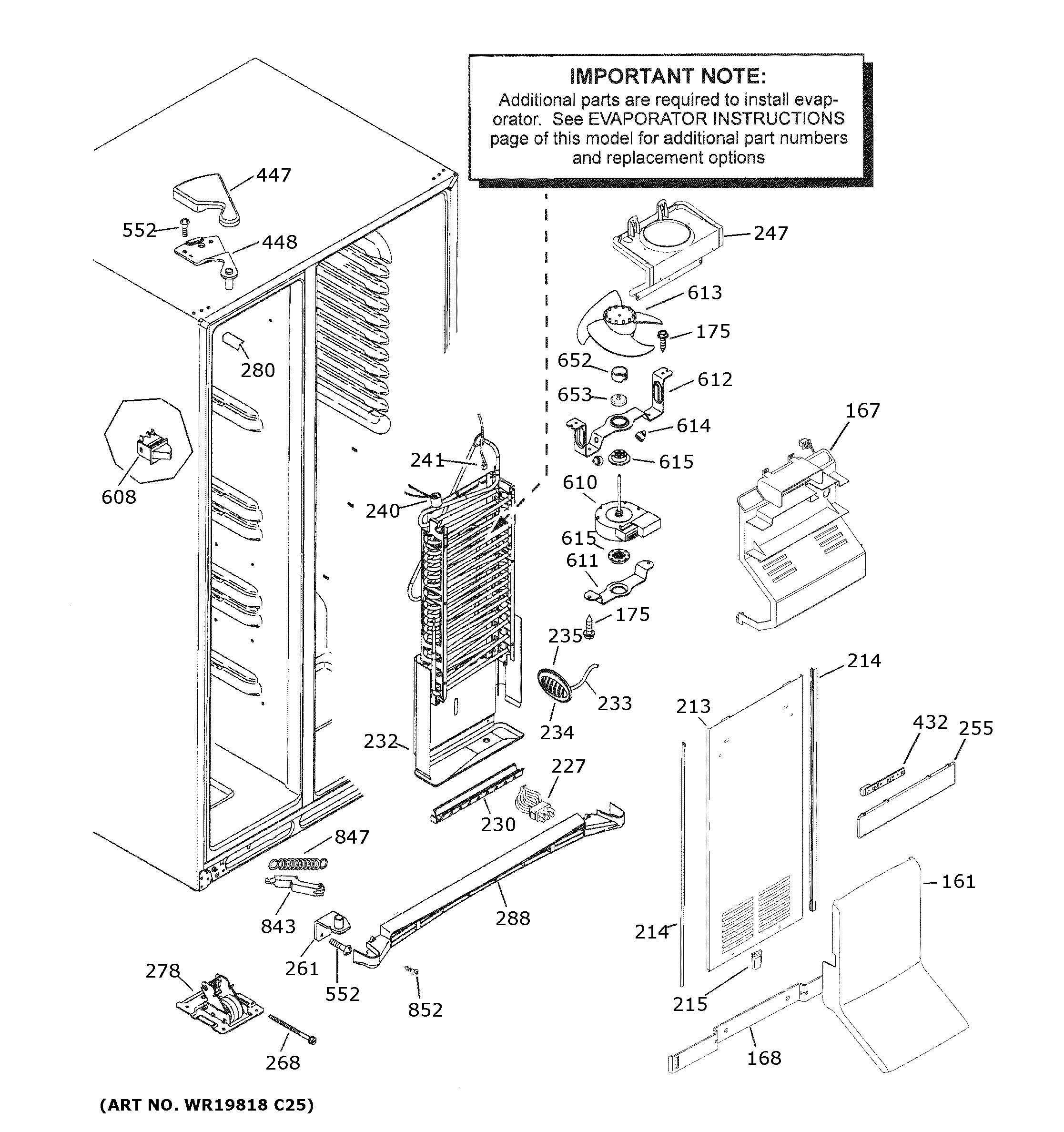

Use the diagram to find the number of the part you need.

161 — Diagram Number

TOWER AIR FREEZER LOWER

WR17X11961

^$43.11

Add to Cart

167 — Diagram Number

DUCT FZ ASSEMBLY

WR17X35050

^$33.26

Add to Cart

168 — Diagram Number

BRACKET FZ TOWER LOWER

WR02X12060

^$9.20

Add to Cart

175 — Diagram Number

SCREW 8-18 AB IHW 5/8 S

WR01X10035

No Longer Available
Item has been replaced by
WR01X10652

213 — Diagram Number

COVER EVAP

WR17X12522

^$62.33

Add to Cart

214 — Diagram Number

GASKET EVAP COVER

WR14X10196

^$9.10

Add to Cart

215 — Diagram Number

BRACKET FZ TOWER UPPER

WR01X10211

^$8.73

Add to Cart

227 — Diagram Number

HARNESS AC FZ INTERMEDIA

WR23X28890

^$44.48

Add to Cart

230 — Diagram Number

HEATER HARNESS DEF ASM

WR51X10097

No Longer Available
Item has been replaced by
WR51X10101

232 — Diagram Number

SHIELD ASM TROUGH

WR17X11949

^$71.36

Add to Cart

233 — Diagram Number

SENSOR TEMPERATURE

WR55X10939

No Longer Available
Item has been replaced by
WR55X10025

234 — Diagram Number

Refrigerator grille sensor

WR02X10647

^$7.05

Add to Cart

235 — Diagram Number

Refrigerator Thermistor Shunt Cover

WR02X10668

^$6.97

Add to Cart

240 — Diagram Number

Refrigerator Defrost Thermostat

WR50X10065

^$58.18

Add to Cart

241 — Diagram Number

Refrigerator temperature sensor

WR55X10025

^$15.98

Add to Cart

247 — Diagram Number

ORIFICE EVAP ASM

WR17X35049

No Longer Available
Item has been replaced by
WR14X42105

255 — Diagram Number

INSERT PLENUM

WR17X38448

^$14.44

Add to Cart

261 — Diagram Number

HINGE BTM & PIN ASSY

WR13X10160

^$41.92

Add to Cart

268 — Diagram Number

SCREW MOBILITY

WR01X10609

No Longer Available
Item has been replaced by
WR01X10210

278 — Diagram Number

MOBILITY FRONT ASSEMBLY

WR02X12274

^$41.38

Add to Cart

280 — Diagram Number

CAP CORNER OC

WR02X13791

^$8.63

Add to Cart

288 — Diagram Number

Refrigerator vent grille

WR74X10247

^$25.71

Add to Cart

432 — Diagram Number

Refrigerator LED Light Board

WR55X26671

^$95.15

Temporarily Out of Stock.

447 — Diagram Number

COVER HINGE

WR02X20434

^$13.03

Add to Cart

448 — Diagram Number

Refrigerator Top Hinge and Pin Assembly

WR13X10216

^$26.86

Add to Cart

552 — Diagram Number

Refrigerator Screw 12-24 TT HX 7/8 S

WR01X10792

^$6.07

Add to Cart

608 — Diagram Number

SWITCH LIGHT

WR23X25635

^$19.52

Add to Cart

610 — Diagram Number

FGREFRIGERATOR EVAPORATOR FAN

WR60X30370

No Longer Available
Item has been replaced by
WR60X10307

611 — Diagram Number

BRACKET EVAP FAN LARGE

WR02X10764

^$9.04

Temporarily Out of Stock.

612 — Diagram Number

BRACKET ORIFICE PAN

WR02X10653

^$11.80

Add to Cart

613 — Diagram Number

EVAPORATOR FAN BLADE

WR60X30922

^$77.68

Temporarily Out of Stock.

614 — Diagram Number

Refrigerator Grommet Lid Bumper

WR02X10540

^$6.07

Add to Cart

615 — Diagram Number

Refrigerator Evaporator Fan Grommet Red

WR02X12008

^$6.09

Add to Cart

652 — Diagram Number

Refrigerator Compression Ring

WR02X12149

^$6.07

Add to Cart

653 — Diagram Number

Refrigerator dust cap

WR02X10322

^$14.82

Add to Cart

843 — Diagram Number

Refrigerator hinge lever assembly black

WR11X10010

^$20.56

Temporarily Out of Stock.

847 — Diagram Number

SPRING CLOSURE

WR01X2027

No Longer Available
Item has been replaced by
WR1X2027

852 — Diagram Number

Screw #8-18 5/8" long

WR01X10858

^$8.47

Add to Cart
