FREEZER DOOR

(GSS23GYPBCFS)

27 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

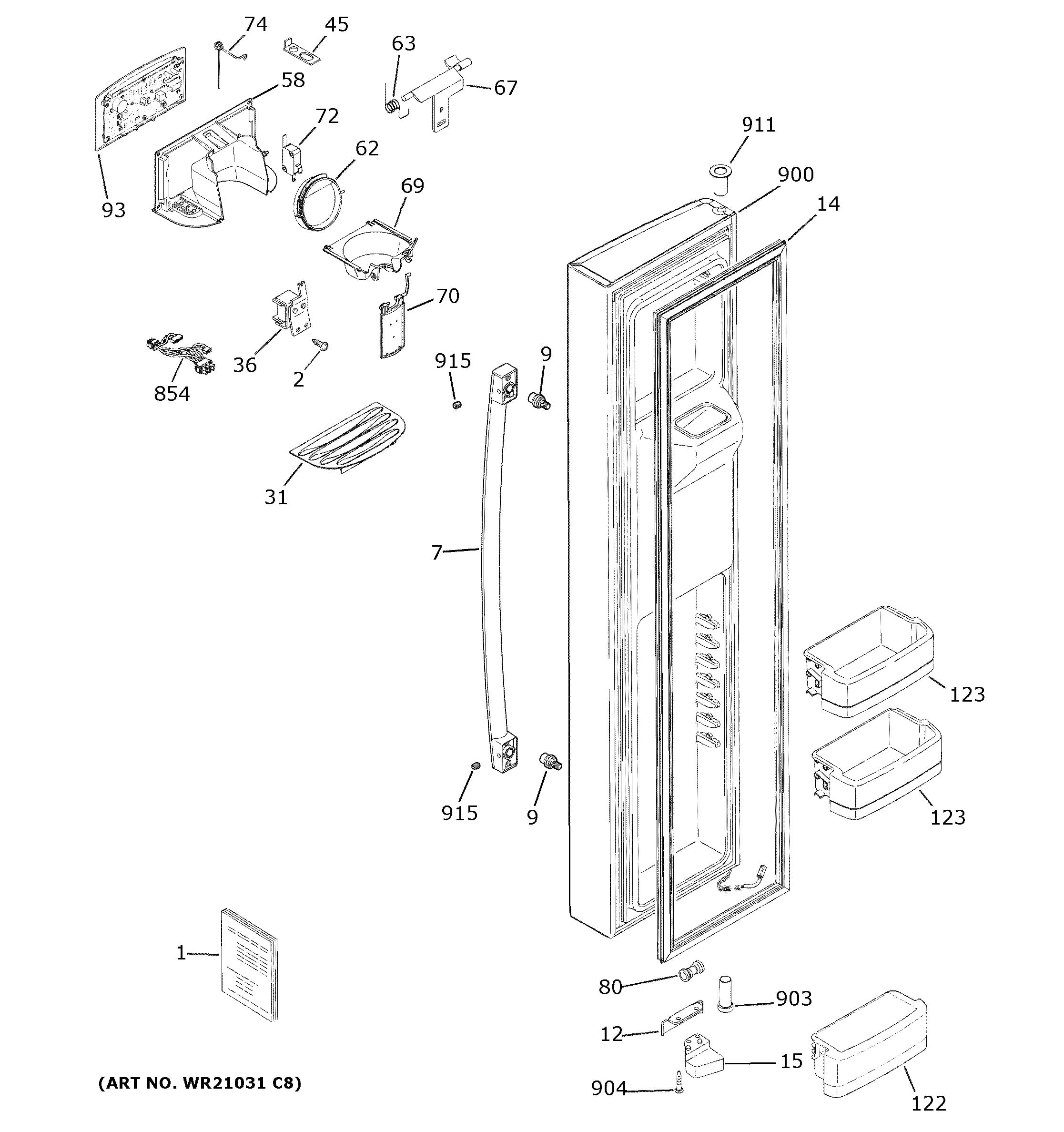

Use the diagram to find the number of the part you need.

2 — Diagram Number

SCR 4-24 PL PNP 3/4

WR02X12257

^$8.64

Add to Cart

7 — Diagram Number

ARC HANDLE ASSEMBLY STAINLESS STEEL

WR12X34906

No Longer Available
Item has been replaced by
WR12X48088

9 — Diagram Number

Refrigerator door handle fastener

WR01X11007

^$6.07

Temporarily Out of Stock.

12 — Diagram Number

Refrigerator Door Stop (Black)

WR02X10782

^$16.81

Add to Cart

14 — Diagram Number

REFRIGERATOR DOOR GASKET - BLACK

WR24X20454

^$71.04

Temporarily Out of Stock.

15 — Diagram Number

CAM CLOSURE FZ BK

WR02X10780

^$9.67

Add to Cart

31 — Diagram Number

GRILL RECESS STAINLESS STEEL

WR74X38445

^$13.40

Add to Cart

36 — Diagram Number

Refrigerator dispenser solenoid assembly

WR62X10055

^$51.27

Temporarily Out of Stock.

45 — Diagram Number

RETAINER RECESS DOOR

WR02X8818

No Longer Available
Item has been replaced by
WR2X8818

58 — Diagram Number

HOUSING SHIELD DISP GREY

WR17X34253

^$24.33

Add to Cart

62 — Diagram Number

Refrigerator dispenser door flap

WR17X11653

^$14.79

Temporarily Out of Stock.

63 — Diagram Number

SPRING RECESS DOOR

WR02X12059

^$6.37

Add to Cart

67 — Diagram Number

CRANK DOOR RECESS

WR17X11953

^$13.41

Add to Cart

69 — Diagram Number

DISPENSER ICE FUNNEL

WR17X21781

^$25.50

Add to Cart

70 — Diagram Number

PADDLE ASSEMBLY

WR17X20449

^$24.14

Add to Cart

72 — Diagram Number

SWITCH

WR23X10783

^$50.23

Add to Cart

74 — Diagram Number

SPRING TORSION

WR02X12256

^$8.81

Add to Cart

80 — Diagram Number

Refrigerator Quick Connector for Plastic Water Line 5/16 in. to 5/16 in.

WR02X11330

^$6.06

Temporarily Out of Stock.

93 — Diagram Number

INTERFACE DISPENSER ASSEMBLY GREY

WR55X34887

^$118.14

Add to Cart

122 — Diagram Number

MODULE SHELF FZ FIXED

WR71X10649

^$82.52

Add to Cart

123 — Diagram Number

MODULE SHELF FZ

WR71X10650

^$68.87

Temporarily Out of Stock.

854 — Diagram Number

HARNESS RECESS DISP

WR23X34250

^$15.80

Add to Cart

900 — Diagram Number

DOOR FOAM ASSEMBLY FZ - STAINLESS STEEL

WR78X35025

^$443.30

Add to Cart

903 — Diagram Number

Refrigerator Bottom Freezer Door Thimble - Black

WR01X10234

^$7.74

Add to Cart

904 — Diagram Number

SCR 10-16

WR01X10582

No Longer Available
Item has been replaced by
WR01X10611

911 — Diagram Number

THIMBLE DOOR

WR01X10956

^$8.67

Add to Cart

915 — Diagram Number

SET SCREW (9.5MM)

WR01X20424

^$6.13

Add to Cart
