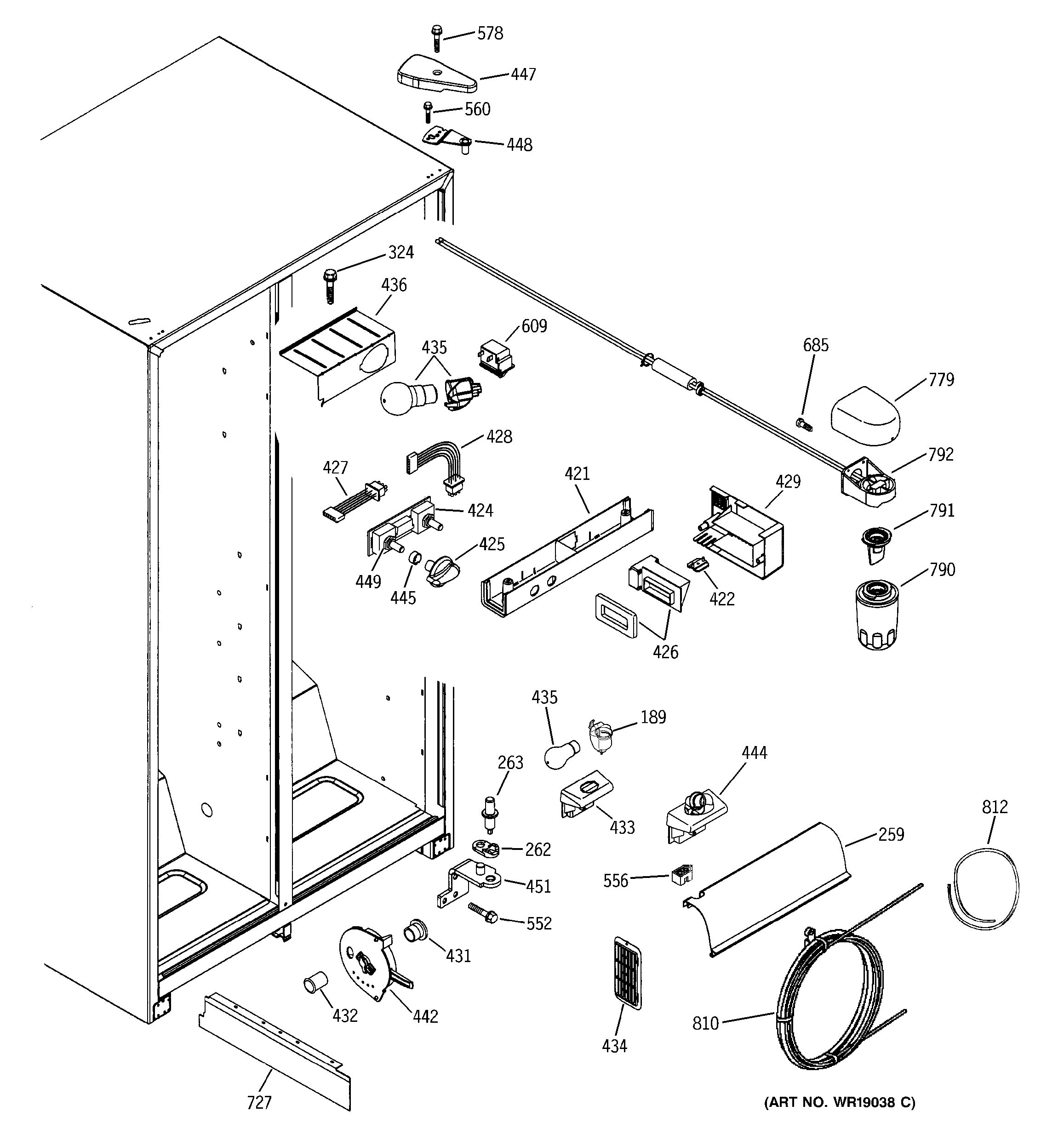

Assembly View for FRESH FOOD SECTION

189 — Diagram Number

SOCKET LAMP

WR02X11127

No Longer Available
Item has been replaced by
NLA ITEM

259 — Diagram Number

Refrigerator lower light shield

WR17X10725

^$19.59

Add to Cart

262 — Diagram Number

Refrigerator Cam Riser Closure Black

WR02X10568

No Longer Available

Temporarily Out of Stock.

263 — Diagram Number

PIN HINGE BTM ADJ

WR02X10592

No Longer Available
Item has been replaced by
NLA ITEM

421 — Diagram Number

REFRIGERATOR CONTROL HOUSING

WR17X10716

No Longer Available

Temporarily Out of Stock.

421 — Diagram Number

REFRIGERATOR CONTROL HOUSING GASKET

WR14X10044

No Longer Available

Temporarily Out of Stock.

424 — Diagram Number

BOARD ASM ENCODER

WR55X10040

No Longer Available
Item has been replaced by
WR55X10150

425 — Diagram Number

REFRIGERATOR CONTROL KNOB

WR02X10570

No Longer Available

Temporarily Out of Stock.

426 — Diagram Number

DAMPER & THERMISTER ASM

WR60X10079

No Longer Available
Item has been replaced by
NLA ITEM

426 — Diagram Number

REFRIGERATOR DAMPER GASKET

WR14X10047

^$5.67

Add to Cart

427 — Diagram Number

HARNESS LT & SW

WR23X10246

No Longer Available

Temporarily Out of Stock.

428 — Diagram Number

REFRIGERATOR LIGHT & SWITCH HARNESS

WR23X10245

No Longer Available

Temporarily Out of Stock.

429 — Diagram Number

COVER DAMPER

WR02X10618

No Longer Available

Temporarily Out of Stock.

431 — Diagram Number

CAP MULLION DUCT

WR02X9299

No Longer Available
Item has been replaced by
WR2X9299

432 — Diagram Number

REFRIGERATOR DUCT MULLION

WR02X10561

^$5.67

Add to Cart

433 — Diagram Number

HOUSING LAMP SOCKET

WR02X11126

No Longer Available

Temporarily Out of Stock.

434 — Diagram Number

REFRIGERATOR AIR RETURN GRILLE

WR17X10262

No Longer Available
Item has been replaced by
NLA ITEM

435 — Diagram Number

Refrigerator light socket

WR02X10591

^$6.11

Add to Cart

435 — Diagram Number

Bulbs - 60W soft white - 2 pack

60A

No Longer Available
Item has been replaced by
40A15

436 — Diagram Number

REFRIGERATOR LIGHT REFLECTOR

WR02X10578

No Longer Available
Item has been replaced by
NLA ITEM

442 — Diagram Number

REFRIGERATOR MEAT PAN CONTROL

WR17X10060

No Longer Available
Item has been replaced by
NLA ITEM

444 — Diagram Number

REFRIGERATOR LOWER LIGHT HOUSING

WR23X10247

No Longer Available

Temporarily Out of Stock.

445 — Diagram Number

RING COMPRESSION

WR02X10581

No Longer Available
Item has been replaced by
WR02X12149

447 — Diagram Number

COVER HINGE BK

WR02X10609

No Longer Available

Temporarily Out of Stock.

448 — Diagram Number

HINGE TOP ASM FF

WR13X10122

No Longer Available

Temporarily Out of Stock.

451 — Diagram Number

HINGE BTM & PIN ASM

WR13X10154

No Longer Available

Temporarily Out of Stock.

552 — Diagram Number

SCR 12-24 TT IH .975 S

WR01X10034

No Longer Available
Item has been replaced by
WR01X10600

556 — Diagram Number

HOUSING TERMINAL

WH12X0497

No Longer Available
Item has been replaced by
NLA ITEM

560 — Diagram Number

SCR 12-24 CA HX 7/8 S

WR01X10195

No Longer Available
Item has been replaced by
WR01X10650

578 — Diagram Number

SCREW 8-32 X 3/8

WZ02X0503

No Longer Available
Item has been replaced by
WZ2X464D

609 — Diagram Number

SWITCH LIGHT

WR23X10162

No Longer Available
Item has been replaced by
WR23X37285

685 — Diagram Number

SCREW, ICE SHELF

WR01X1804

No Longer Available
Item has been replaced by
WR01X10606

727 — Diagram Number

SEPARATOR AIR HISIDE

WR17X10723

No Longer Available
Item has been replaced by
NLA ITEM

790 — Diagram Number

GE® Replacement Water Filter

GWF

No Longer Available
Item has been replaced by
MWFP

791 — Diagram Number

PLUG BYPASS FILTER

WR02X10577

No Longer Available
Item has been replaced by
WR17X22070

792 — Diagram Number

FILTER ASSY AND TUBE

WR17X11028

No Longer Available
Item has been replaced by
WR02X45206

810 — Diagram Number

WATER STORAGE COIL

WR17X11140

No Longer Available
Item has been replaced by
WR17X10734

812 — Diagram Number

TUBE PLASTIC

WR17X11141

No Longer Available
Item has been replaced by
WR17X11324

FRESH FOOD SECTION

(GSS22SGMCBS)

38 Results
