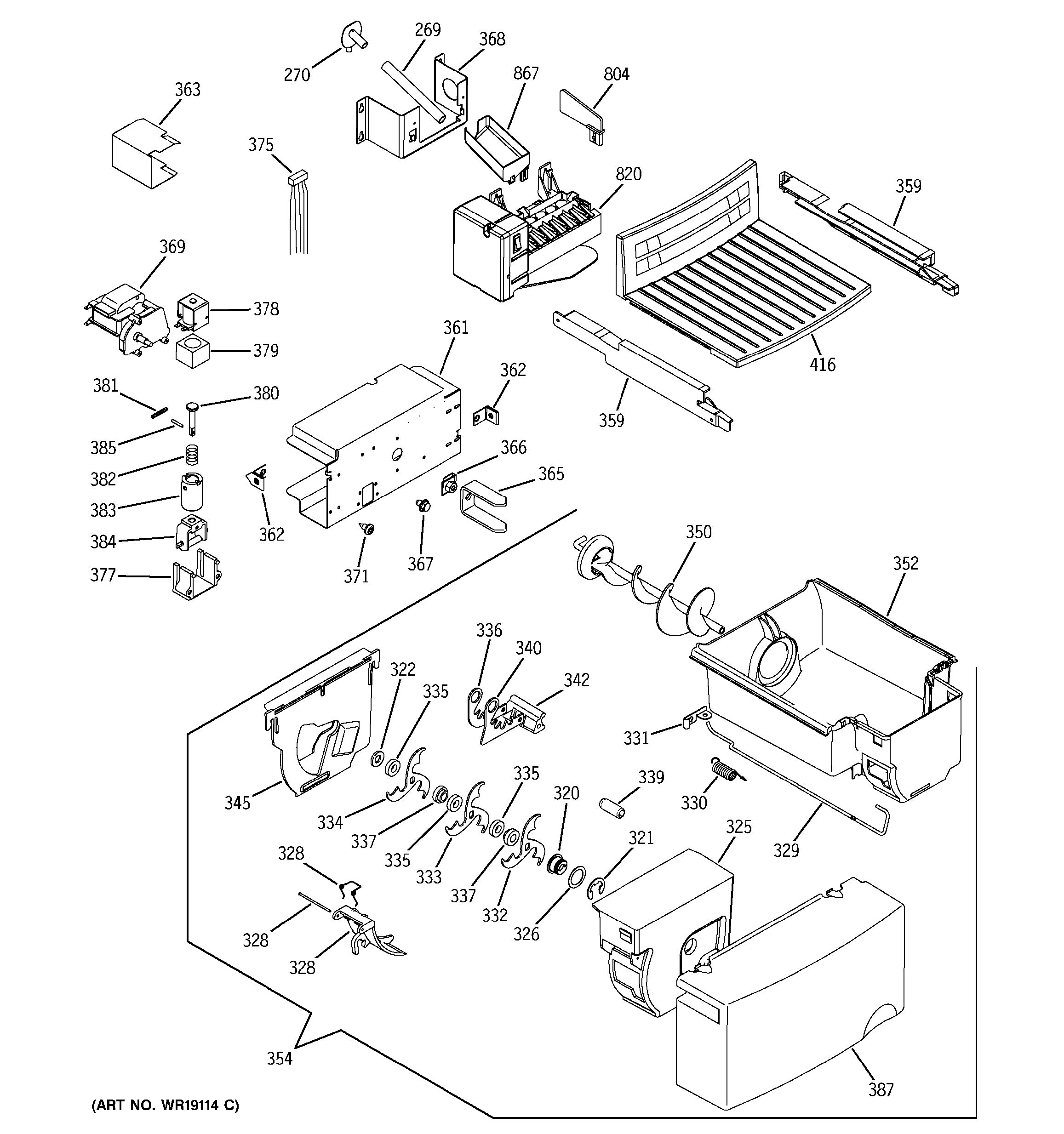

Assembly View for ICE MAKER & DISPENSER

269 — Diagram Number

FILL TUBE ASSY

WR02X10960

No Longer Available
Item has been replaced by
WR17X11168

270 — Diagram Number

GROMMET AND TUBE ASM

WR17X11082

No Longer Available
Item has been replaced by
WR17X11168

270 — Diagram Number

GROMMET AND GASKET ASSEMBLY

WR02X10967

^$20.83

Add to Cart

320 — Diagram Number

NUT AUGER FRT DISP

WR01X10189

No Longer Available
Item has been replaced by
NLA ITEM

321 — Diagram Number

RETAINER RING E

WR01X1367

No Longer Available
Item has been replaced by
WR1X1367D

322 — Diagram Number

REFRIGERATOR CRUSHER MIDDLE SPACER

WR02X11266

No Longer Available
Item has been replaced by
NLA ITEM

325 — Diagram Number

HOUSING CRUSHER DISPLAY

WR17X10717

No Longer Available
Item has been replaced by
WR17X11505

326 — Diagram Number

WASHER

WR01X1366

No Longer Available
Item has been replaced by
WR1X1366D

328 — Diagram Number

Refrigerator ice bucket deflector

WR17X10703

^$7.59

Add to Cart

328 — Diagram Number

SPRING ICE DEFLECTOR

WR02X4561

No Longer Available
Item has been replaced by
WR2X4561

328 — Diagram Number

PIN DEFLECTOR DISP

WR02X4143

No Longer Available
Item has been replaced by
WR2X4143

329 — Diagram Number

WIRE ACTUATOR DISP

WR17X10735

No Longer Available
Item has been replaced by
WR17X11403

330 — Diagram Number

SPRING DEFLECTOR

WR02X10583

No Longer Available
Item has been replaced by
WR02X11768

331 — Diagram Number

RETAINER SPRING

WR02X10580

^$7.70

Add to Cart

332 — Diagram Number

REFRIGERATOR DISPENSER MOVING BLADES

WR17X11239

^$20.68

Add to Cart

333 — Diagram Number

REFRIGERATOR DISPENSER MOVING BLADES

WR17X11240

^$13.42

Add to Cart

334 — Diagram Number

REFRIGERATOR DISPENSER MOVING BLADES

WR17X11241

^$62.70

Add to Cart

337 — Diagram Number

SPACER CRUSHER STATIONAR

WR02X4138

No Longer Available
Item has been replaced by
WR2X4138

340 — Diagram Number

REFRIGERATOR ICE CRUSHER STATIONARY BLADE

WR17X2058

^$12.02

Add to Cart

342 — Diagram Number

REFRIGERATOR STATIONARY BLADES

WR02X10691

^$75.43

Add to Cart

345 — Diagram Number

COVER CRUSHER HSG DISP

WR17X11237

No Longer Available
Item has been replaced by
WR17X11497

350 — Diagram Number

061 FGKit Includes Buck

WR17X10690

No Longer Available
Item has been replaced by
NLA ITEM

352 — Diagram Number

Refrigerator Ice Dispenser Bucket

WR30X10017

^$72.42

Add to Cart

354 — Diagram Number

BUCKET & AUGER ASM

WR17X11248

No Longer Available
Item has been replaced by
WR17X23191

359 — Diagram Number

GLIDE BUCKET LH DISP

WR72X10047

No Longer Available
Item has been replaced by
WR72X10169

359 — Diagram Number

GLIDE BUCKET RH DISP

WR72X10048

No Longer Available
Item has been replaced by
WR72X10145

362 — Diagram Number

BRACKET SHELF

WR02X10971

No Longer Available
Item has been replaced by
NLA ITEM

363 — Diagram Number

SHIELD CRUSHER MTR

WR02X11128

No Longer Available
Item has been replaced by
WR02X11295

365 — Diagram Number

DRIVE AUGER DISPLAY

WR02X10565

No Longer Available
Item has been replaced by
WR02X11941

366 — Diagram Number

Refrigerator j nut

WR01X10190

No Longer Available
Item has been replaced by
NLA ITEM

367 — Diagram Number

SCREW 8-18 TPT 1/4

WR01X10198

No Longer Available
Item has been replaced by
WR01X10618

368 — Diagram Number

BRACKET IM MOUNTING

WR02X10981

No Longer Available

Temporarily Out of Stock.

369 — Diagram Number

MOTOR CRUSHER DISP

WR60X10056

No Longer Available
Item has been replaced by
WR60X10258

371 — Diagram Number

SCREW 10-18 HI/LO HXW 1/

WR01X10192

No Longer Available
Item has been replaced by
WR01X10619

375 — Diagram Number

REFRIGERATOR DISPLAY MOTOR HARNESS

WR23X10157

No Longer Available

Temporarily Out of Stock.

377 — Diagram Number

SADDLE SOLENOID

WR02X7309

No Longer Available
Item has been replaced by
WR2X7309

378 — Diagram Number

SOLENOID ARM ASM

WR62X0058

No Longer Available
Item has been replaced by
WR62X23154

379 — Diagram Number

Refrigerator Shroud Solenoid

WR17X1063

^$5.00

Add to Cart

380 — Diagram Number

Refrigerator Ice Crusher Solenoid Plunger

WR17X1064

No Longer Available
Item has been replaced by
WR62X26536

381 — Diagram Number

PIN SPIRAL

WR02X4257

No Longer Available
Item has been replaced by
WR62X26536

382 — Diagram Number

SPRING SOLENOID LINKAGE

WR02X4258

No Longer Available
Item has been replaced by
WR62X26536

383 — Diagram Number

COLLAR SOLENOID DISPLAY

WR17X1065

No Longer Available
Item has been replaced by
WR62X26536

384 — Diagram Number

STIRRUP SOLENOID DISPLAY

WR17X1066

No Longer Available
Item has been replaced by
WR62X26536

385 — Diagram Number

PIN SPIRAL

WR02X4259

No Longer Available
Item has been replaced by
WR62X26536

387 — Diagram Number

COVER BUCKET DISP

WR17X10769

No Longer Available
Item has been replaced by
NLA ITEM

416 — Diagram Number

SHELF CHILLER

WR71X10394

No Longer Available
Item has been replaced by
NLA ITEM

804 — Diagram Number

Refrigerator Ice Maker Guard Rail

WR29X10054

^$6.07

Add to Cart

820 — Diagram Number

ELECTRONIC IM-DOM

WR30X10012

No Longer Available
Item has been replaced by
WR30X10093

867 — Diagram Number

CUP FILL IM

WR29X10047

No Longer Available
Item has been replaced by
WR29X10092

ICE MAKER & DISPENSER

(GSS22SGMCBS)

49 Results
