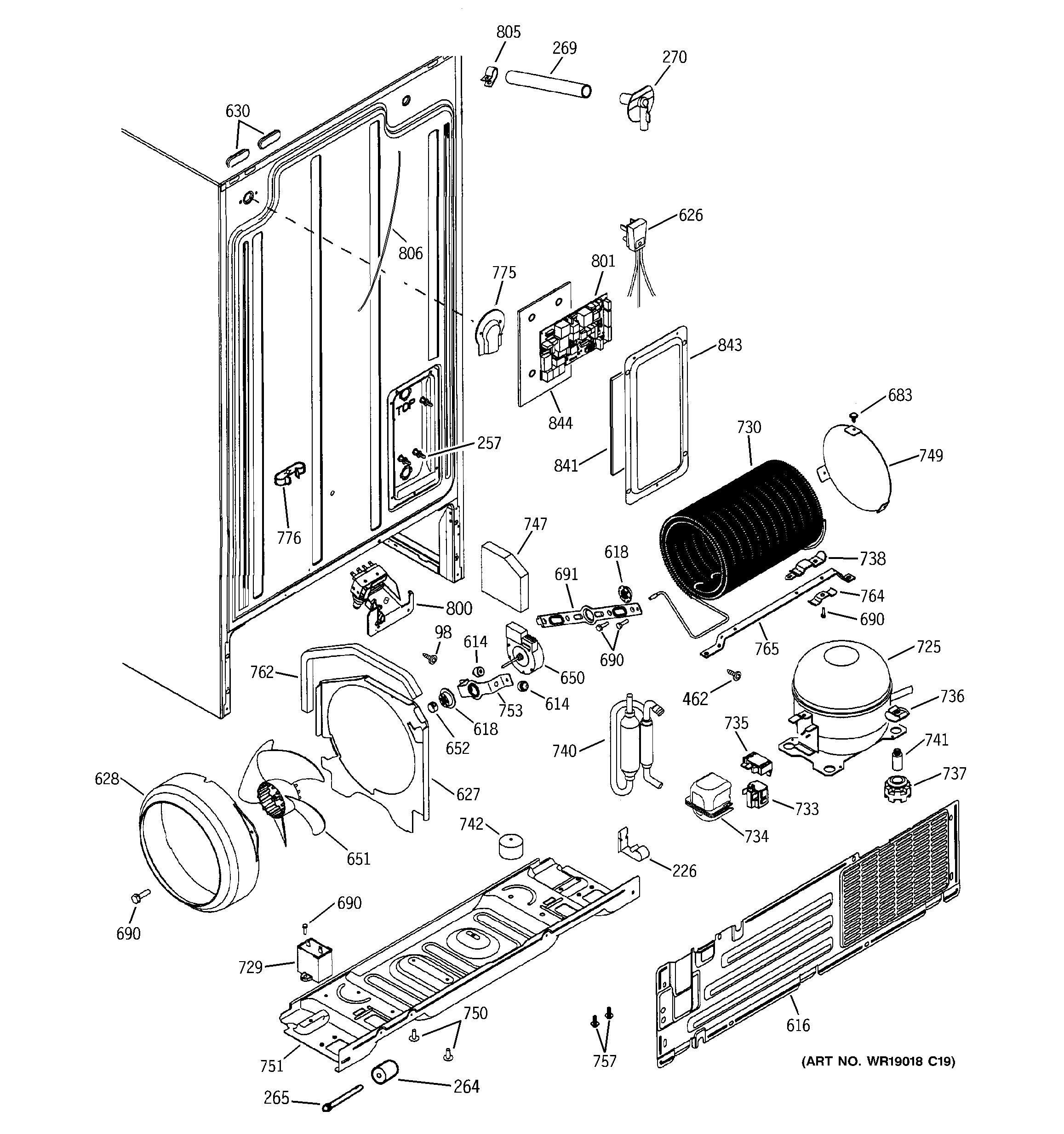

Assembly View for SEALED SYSTEM & MOTHER BOARD

98 — Diagram Number

SCREW 8-36 T IHW 3/8 SN

WR01K0001

No Longer Available
Item has been replaced by
WR1K1

226 — Diagram Number

REFRIGERATOR DRAIN TUBE CLIP

WR02X10558

No Longer Available
Item has been replaced by
NLA ITEM

257 — Diagram Number

CONTROL BOARD FASTENER

WR02X10159

No Longer Available

Temporarily Out of Stock.

264 — Diagram Number

Refrigerator Wheel

WR02X10695

^$7.87

Add to Cart

265 — Diagram Number

AXLE WHEEL

WR01X10039

No Longer Available
Item has been replaced by
NLA ITEM

269 — Diagram Number

FILL TUBE ASSY

WR02X10960

No Longer Available
Item has been replaced by
WR17X11168

270 — Diagram Number

GROMMET AND TUBE ASM

WR17X11082

No Longer Available
Item has been replaced by
WR17X11168

270 — Diagram Number

GROMMET AND GASKET ASSEMBLY

WR02X10967

^$20.83

Add to Cart

462 — Diagram Number

SCR 8-18 AB HXW 1/2 S

WZ06X0136

No Longer Available
Item has been replaced by
NLA ITEM

614 — Diagram Number

Refrigerator Grommet Lid Bumper

WR02X10540

^$6.07

Add to Cart

616 — Diagram Number

COVER ACCESS ASM

WR82X10074

No Longer Available
Item has been replaced by
NLA ITEM

618 — Diagram Number

GROMMET FAN MOTOR

WR02X10520

^$7.41

Add to Cart

626 — Diagram Number

CORD POWER ASS'Y

WR23X0108

No Longer Available
Item has been replaced by
WR23X10300

627 — Diagram Number

BAFFLE CONDENSER

WR17X10691

No Longer Available
Item has been replaced by
WR17X35527

628 — Diagram Number

SHROUD CONDENSER

WR17X10726

No Longer Available
Item has been replaced by
WR17X35527

630 — Diagram Number

PLUG BUTTON BK

WR02X8525

No Longer Available
Item has been replaced by
NLA ITEM

650 — Diagram Number

MOTOR DC COND FAN

WR60X10065

No Longer Available
Item has been replaced by
WR60X10209

651 — Diagram Number

BLADE COND FAN ASSY

WR60X10049

No Longer Available
Item has been replaced by
WR60X24484

652 — Diagram Number

RING COMPRESSION FAN

WR02X10509

No Longer Available
Item has been replaced by
WR02X12149

683 — Diagram Number

PUSH FASTENER

WR02X10562

^$6.09

Add to Cart

690 — Diagram Number

SCR 8-32 T HXW 3/8 S

WR01X1466

No Longer Available
Item has been replaced by
WZ5X158D

691 — Diagram Number

BRACKET COND FAN - REAR

WR02X10593

^$13.59

Add to Cart

725 — Diagram Number

COMPRESSOR REPL. ASM.

WR87X10041

No Longer Available
Item has been replaced by
WR87X10226

729 — Diagram Number

CAPACITOR

WR62X0080

No Longer Available
Item has been replaced by
WR55X24065

730 — Diagram Number

CONDENSER REPL ASSEMBLY

WR84X10022

^$363.90

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

733 — Diagram Number

PTCR

WR07X10033

No Longer Available
Item has been replaced by
WR07X10057

735 — Diagram Number

OVERLOAD

WR08X10026

No Longer Available
Item has been replaced by
NLA ITEM

736 — Diagram Number

CLIP COMPRESSOR MOUNT

WR02X8203

No Longer Available
Item has been replaced by
WR2X8203

737 — Diagram Number

GROMMET COMPRESSOR

WR02X10099

No Longer Available
Item has been replaced by
WR02X40305

738 — Diagram Number

CLIP COND LOOP

WR02X7064

No Longer Available
Item has been replaced by
WR2X7064

740 — Diagram Number

DRYER FILTER ASS'Y

WR86X0096

No Longer Available
Item has been replaced by
WR86X25269

741 — Diagram Number

STUD MTG COMPR

WR01X1779

No Longer Available
Item has been replaced by
WR1X1779

747 — Diagram Number

REFRIGERATOR SIDE INSULATION

WR82X10073

No Longer Available
Item has been replaced by
NLA ITEM

749 — Diagram Number

BAFFLE COND AIR

WR17X10694

No Longer Available
Item has been replaced by
WR17X13159

750 — Diagram Number

SCREW 10-32 TR 1/2

WR01X1786

No Longer Available
Item has been replaced by
WR1X1786

753 — Diagram Number

BRKT COND FAN (MTG)

WR02X10521

No Longer Available
Item has been replaced by
WR02X11863

757 — Diagram Number

SCREW 10-32 TT HXW 5/16

WR01X10252

No Longer Available
Item has been replaced by
WR01X10654

762 — Diagram Number

FOAM STRIP SE ADH

WR14X10053

^$5.67

Add to Cart

764 — Diagram Number

CLIP, CONDENSER MOUNT

WR02X9000

No Longer Available
Item has been replaced by
WR2X9000

765 — Diagram Number

Bracket Condenser Bar

WR17X10763

^$8.35

Add to Cart

775 — Diagram Number

COVER WATER LINE

WR02X10047

No Longer Available
Item has been replaced by
WR17X13124

776 — Diagram Number

CLAMP TUBE

WR02X10522

^$6.07

Add to Cart

800 — Diagram Number

REFRIGERATOR WATER VALVE ASSEMBLY

WR57X10032

No Longer Available
Item has been replaced by
WR57X33326

801 — Diagram Number

BOARD ASM MAIN CONTROL

WR55X10109

No Longer Available
Item has been replaced by
WR55X10942

805 — Diagram Number

CLAMP TUBE

WR02X3736

No Longer Available
Item has been replaced by
WR1X5278

806 — Diagram Number

TUBE PLASTIC

WR17X10733

No Longer Available
Item has been replaced by
WR17X11625

841 — Diagram Number

INSULATOR MAIN BOARD

WR02X10599

No Longer Available

Temporarily Out of Stock.

843 — Diagram Number

COVER ENCLOSURE

WR17X10700

No Longer Available

Temporarily Out of Stock.

844 — Diagram Number

REFRIGERATOR MAIN BOARD INSULATOR

WR02X10569

No Longer Available

Temporarily Out of Stock.

SEALED SYSTEM & MOTHER BOARD

(GSS22SGMCBS)

49 Results
