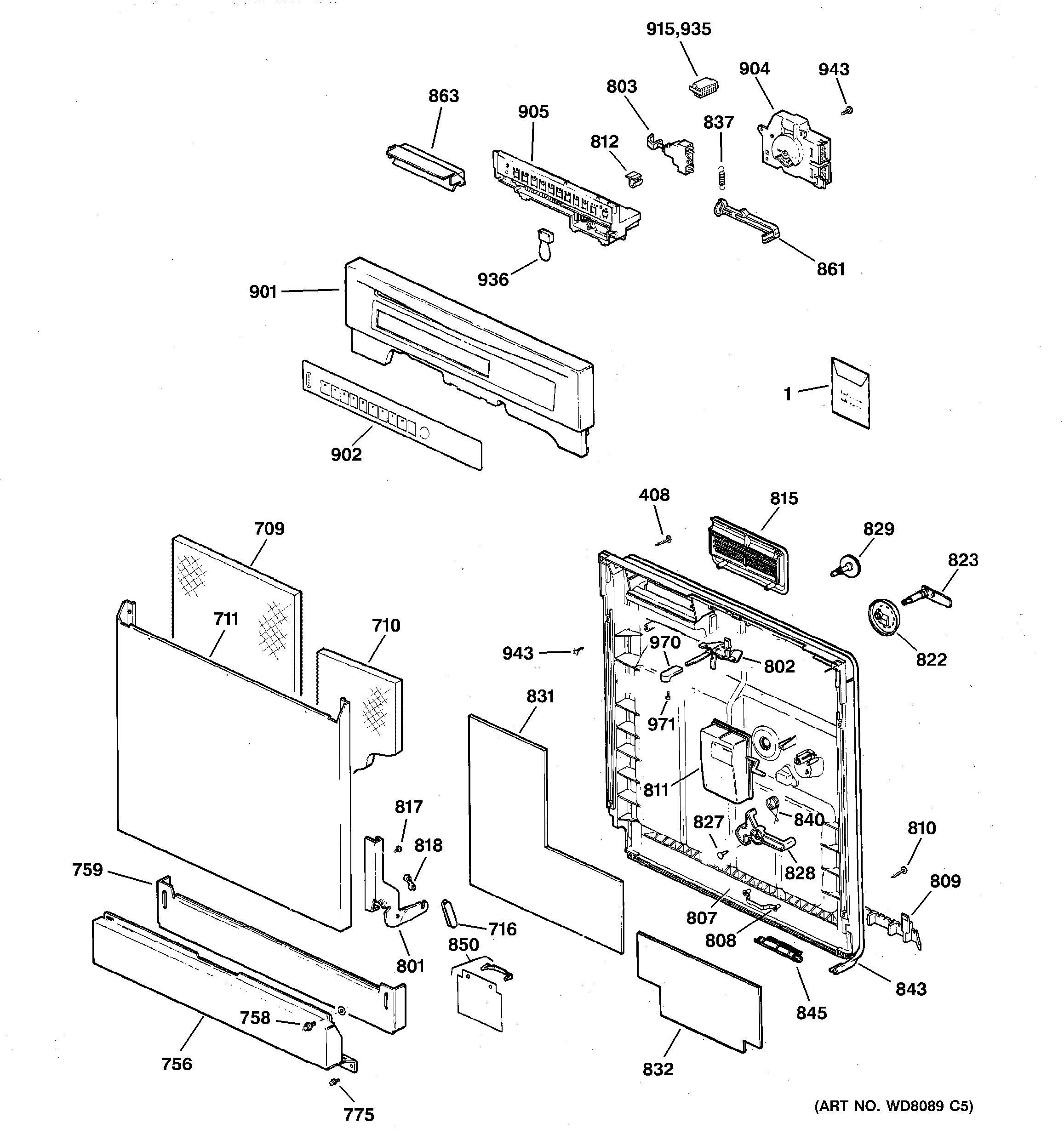

Assembly View for ESCUTCHEON & DOOR ASSEMBLY

408 — Diagram Number

SCREW 8-32X5/8

WD02X0296

No Longer Available
Item has been replaced by
WD2X296

709 — Diagram Number

INSULATION

WD01X10084

No Longer Available

Temporarily Out of Stock.

710 — Diagram Number

DISHWASHER INSULATION

WD01X10083

No Longer Available

Temporarily Out of Stock.

711 — Diagram Number

PANEL FRONT - LONG SS

WD31X10022

No Longer Available
Item has been replaced by
NLA ITEM

716 — Diagram Number

Dishwasher hinge link

WD14X10009

^$6.07

Add to Cart

756 — Diagram Number

PANEL ACCESS ASM SS

WD27X10073

No Longer Available
Item has been replaced by
NLA ITEM

758 — Diagram Number

Screw 8-32 thread - 5/16" long - hex/Philips head

WD02X10056

No Longer Available

Temporarily Out of Stock.

758 — Diagram Number

SCR 8-18 PL HXW 3/8 S

WD02X10114

No Longer Available
Item has been replaced by
WD02X10061

759 — Diagram Number

PANEL TOE KICK - BLACK

WD27X10068

^$196.70

Add to Cart

775 — Diagram Number

Dishwasher Screw

WD02X10057

^$6.07

Add to Cart

801 — Diagram Number

ARM HINGE COMPLETE LH

WD14X10007

No Longer Available

Temporarily Out of Stock.

801 — Diagram Number

ARM HINGE COMPLETE RH

WD14X10008

No Longer Available
Item has been replaced by
NLA ITEM

802 — Diagram Number

Dishwasher Door Latch Assembly

WD13X10003

^$27.20

Add to Cart

803 — Diagram Number

Dishwasher Interlock Switch

WD06X10002

^$51.32

Add to Cart

807 — Diagram Number

Dishwasher plastic inner door

WD31X10004

^$339.90

Temporarily Out of Stock.

808 — Diagram Number

CLIP HARNESS

WD01X10110

^$5.67

Add to Cart

810 — Diagram Number

SCR 8-18 AB TR 7/8 S

WD02X10099

No Longer Available
Item has been replaced by
WD02X10106

811 — Diagram Number

RINSE AID INJ ASM

WD12X0398

No Longer Available
Item has been replaced by
WD35X10346

812 — Diagram Number

ADHESIVE CLIP

WR02X4039

No Longer Available
Item has been replaced by
WR01X11064

815 — Diagram Number

Dishwasher door vent

WD12X10026

^$8.17

Add to Cart

817 — Diagram Number

SCR 8-32 PNT 1/2 S

WD01X0550

No Longer Available
Item has been replaced by
WD1X550

818 — Diagram Number

BEARING HINGE ARM

WD12X10025

No Longer Available
Item has been replaced by
NLA ITEM

822 — Diagram Number

COVER DETERGENT CUP

WD16X0297

No Longer Available
Item has been replaced by
WD16X297

823 — Diagram Number

SHAFT/HANDLE DET CUP TM

WD16X0313

No Longer Available
Item has been replaced by
WD16X313

827 — Diagram Number

FASTENER (DET CVR SHAFT)

WD02X0425

No Longer Available
Item has been replaced by
NLA ITEM

828 — Diagram Number

LATCH DETERGENT CUP

WD16X10005

No Longer Available
Item has been replaced by
WD16X10011

829 — Diagram Number

INDICATOR ASM JET DRY

WD12X10037

No Longer Available
Item has been replaced by
WD12X10284

831 — Diagram Number

MASTIC DOOR

WD01X10025

No Longer Available
Item has been replaced by
NLA ITEM

832 — Diagram Number

DAMPER SOUND

WD01X1469

No Longer Available
Item has been replaced by
NLA ITEM

837 — Diagram Number

SPRING TIMER LEVER

WD03X0749

No Longer Available
Item has been replaced by
WD3X749

840 — Diagram Number

DETERGENT TRIP SPRING

WD03X0764

No Longer Available
Item has been replaced by
WD3X764

843 — Diagram Number

GASKET

WD08X10014

No Longer Available
Item has been replaced by
WD08X10057

845 — Diagram Number

Dishwasher door gasket insert

WD08X10015

No Longer Available
Item has been replaced by
NLA ITEM

850 — Diagram Number

DRIP SHIELD

WD12X0338

No Longer Available
Item has been replaced by
WD12X338

861 — Diagram Number

LEVER SWITCH

WD12X10019

No Longer Available
Item has been replaced by
NLA ITEM

863 — Diagram Number

VENT ASSY

WD12X10020

No Longer Available

Temporarily Out of Stock.

901 — Diagram Number

ESCUTCHEON BLACK

WD34X10036

No Longer Available
Item has been replaced by
NLA ITEM

901 — Diagram Number

ESCUTCHEON & INSERT ASM

WD34X10778

No Longer Available
Item has been replaced by
NLA ITEM

902 — Diagram Number

INSERT ESCUTCHEON

WD34X10777

No Longer Available
Item has been replaced by
NLA ITEM

904 — Diagram Number

SEQUENCE SWITCH

WD21X10101

No Longer Available
Item has been replaced by
NLA ITEM

905 — Diagram Number

CONTROL ASM

WD21X10116

No Longer Available

Temporarily Out of Stock.

936 — Diagram Number

HARNESS

WD21X10151

No Longer Available

Temporarily Out of Stock.

943 — Diagram Number

SCREW ESCUTCHEON FRAME

WZ05X0219

No Longer Available
Item has been replaced by
WZ5X219D

970 — Diagram Number

KNOB, LATCH HANDLE BK

WD09X0351

No Longer Available
Item has been replaced by
WD9X351

971 — Diagram Number

SCREW LATCH KNOB

WZ02X0045

No Longer Available
Item has been replaced by
WZ2X45D

ESCUTCHEON & DOOR ASSEMBLY

(GSD5560G00SS)

45 Results
