MOTOR-PUMP MECHANISM

(GSD2220Z05BB)

25 Results

See Parts List

1-877-959-8688

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger  |  Change Section/Diagram

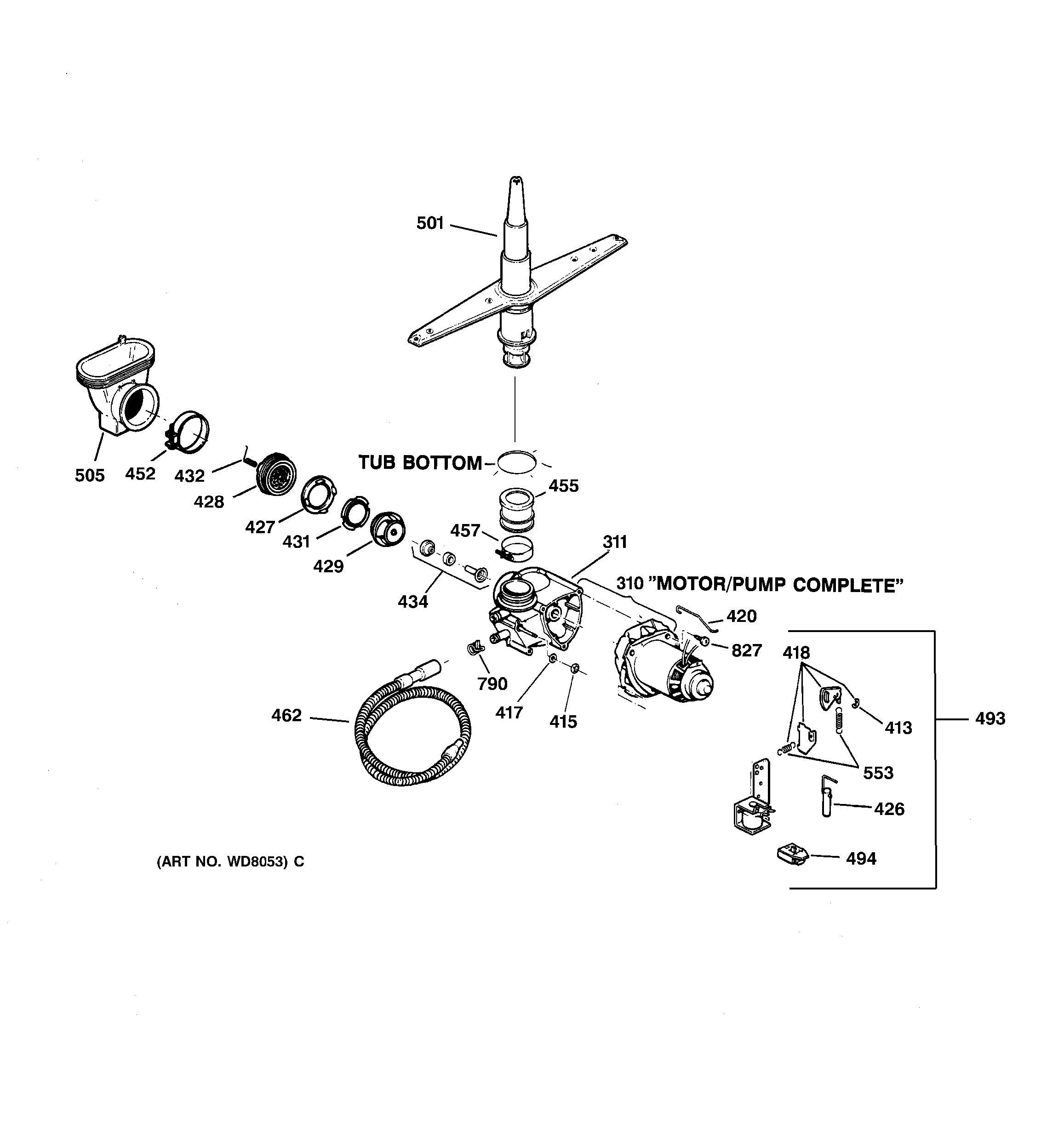

Use the diagram to find the number of the part you need.

Product Image
310 — Diagram Number
MECHANISM ASM

WD26X10007

No Longer Available
Item has been replaced by
WD26X10013

311 — Diagram Number
HOUSING PUMP ASSY

WD19X10020

$76.40

  Add to Cart

Product Image
413 — Diagram Number
PS RETAINER

WD03X0487

No Longer Available
Item has been replaced by
WD3X487D

Product Image
415 — Diagram Number
FASTENER PUSHNUT

WD02X0429

No Longer Available
Item has been replaced by
WR2X7054

Product Image
417 — Diagram Number
GATE SHAFT SEAL

WD08X0181

No Longer Available
Item has been replaced by
WD8X181

Product Image
426 — Diagram Number
ARMATURE LINK ASSEMBLY

WD01X1316

No Longer Available
Item has been replaced by
WD1X1316

Product Image
427 — Diagram Number
BASE WEAR RING

WD12X0354

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
429 — Diagram Number
IMPELLER ASM

WD19X0060

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
431 — Diagram Number
RING WEAR

WD01X1341

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
432 — Diagram Number
SPRING CUTTER

WD01X1487

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
434 — Diagram Number
PUMP SEAL ASM

WD19X10001

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
452 — Diagram Number
CLAMP, SUMP

WD01X1392

No Longer Available
Item has been replaced by
WD1X1392

Product Image
455 — Diagram Number
CONNECTOR PUMP ASM

WD18X0214

No Longer Available
Item has been replaced by
WD18X214

Product Image
457 — Diagram Number
CLAMP (PUMP CONNECTOR)

WD01X1376

No Longer Available
Item has been replaced by
WD1X1376

462 — Diagram Number
Dishwasher Drain Hose

WD24X10014

$27.20

  Add to Cart

493 — Diagram Number
Dishwasher Drain Solenoid Kit

WD21X10060

$55.20

  Add to Cart

Product Image
493 — Diagram Number
BRACKET & SOLENOID

WD21X10057

No Longer Available
Item has been replaced by
WD21X10060

Product Image
493 — Diagram Number
BRACKET & SOLENOID

WD21X10071

No Longer Available
Item has been replaced by
WD21X10268

Product Image
494 — Diagram Number
HOUSING SPECIAL

WD01X1459

No Longer Available
Item has been replaced by
WD1X1459

Product Image
501 — Diagram Number
SPRAY ARM ASM

WD22X0154

No Longer Available
Item has been replaced by
WD22X154

Product Image
505 — Diagram Number
INLET SUMP

WD18X0213

No Longer Available
Item has been replaced by
WD18X213

Product Image
553 — Diagram Number
GATE ARM SPRINGS

WD03X0721

No Longer Available
Item has been replaced by
WD3X721

Product Image
790 — Diagram Number
CONNECTOR PLUG CLAMP

WH01X2036

No Longer Available
Item has been replaced by
WH1X2036

790 — Diagram Number
Dishwasher Hose Clamp

WD01X10065

$5.67

  Add to Cart

Product Image
827 — Diagram Number
FASTENER (DET CVR SHAFT)

WD02X0425

No Longer Available
Item has been replaced by
NLA ITEM
