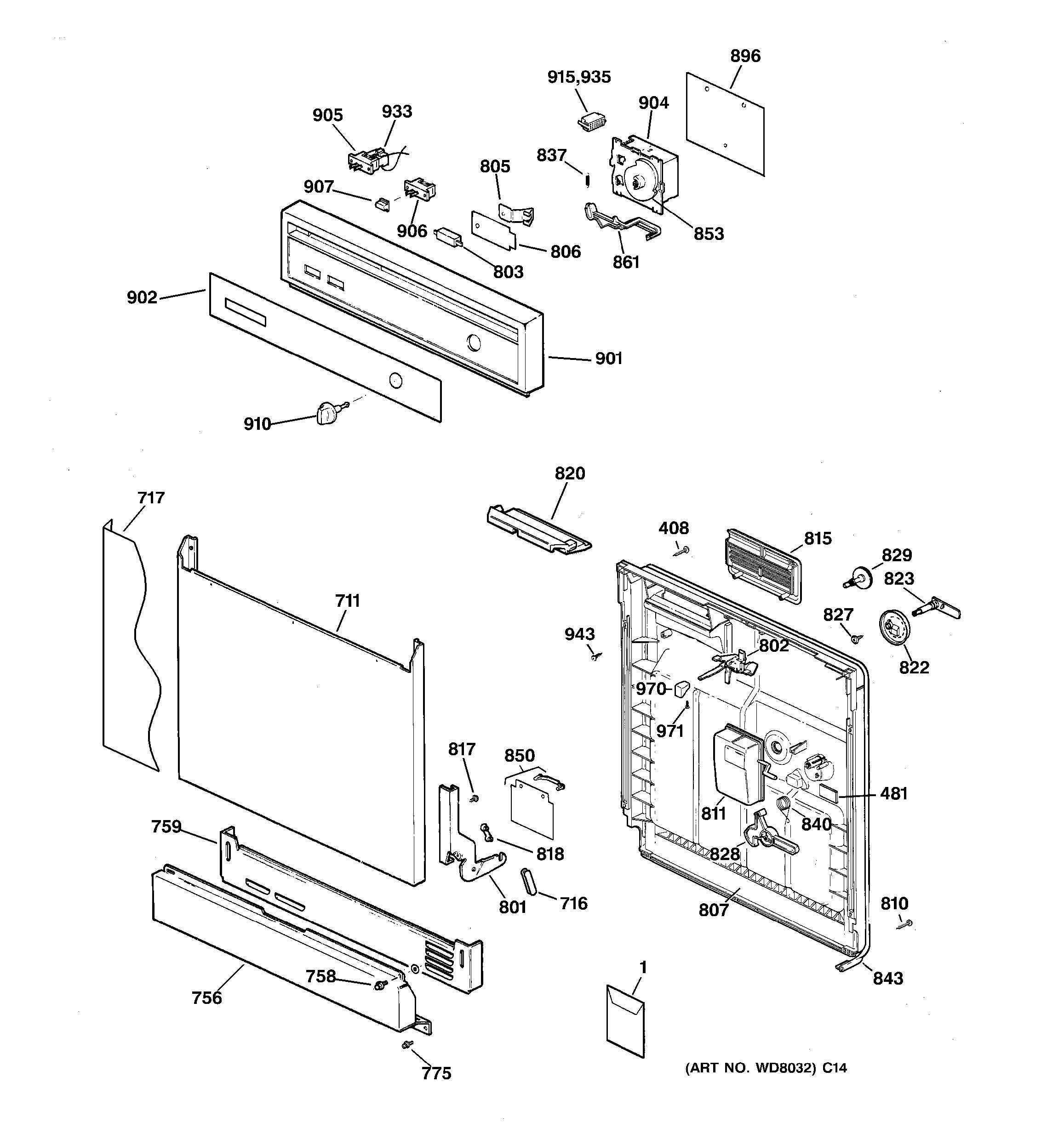

Assembly View for ESCUTCHEON & DOOR ASSEMBLY

408 — Diagram Number

SCREW 8-32X5/8

WD02X0296

No Longer Available
Item has been replaced by
WD2X296

481 — Diagram Number

DEFLECTOR

WD01X10016

No Longer Available

Temporarily Out of Stock.

711 — Diagram Number

PANEL FRONT BK

WD31X10010

No Longer Available

Temporarily Out of Stock.

716 — Diagram Number

Dishwasher hinge link

WD14X10009

^$6.07

Add to Cart

717 — Diagram Number

DOOR PANEL COVER BK

WD27X10043

No Longer Available

Temporarily Out of Stock.

756 — Diagram Number

PANEL ACCESS ASM BK

WD27X10033

No Longer Available
Item has been replaced by
NLA ITEM

758 — Diagram Number

Screw 8-32 thread - 5/16" long - hex/Philips head

WD02X10056

No Longer Available

Temporarily Out of Stock.

759 — Diagram Number

TOE KICK ASM BK

WD27X10009

No Longer Available

Temporarily Out of Stock.

775 — Diagram Number

Dishwasher Screw

WD02X10057

^$6.07

Add to Cart

775 — Diagram Number

Screw

WD02X5166

No Longer Available
Item has been replaced by
WD2X5166

801 — Diagram Number

ARM HINGE COMPLETE LH

WD14X10007

No Longer Available

Temporarily Out of Stock.

801 — Diagram Number

ARM HINGE COMPLETE RH

WD14X10008

No Longer Available
Item has been replaced by
NLA ITEM

802 — Diagram Number

Dishwasher Door Latch Assembly

WD13X10003

^$27.20

Add to Cart

803 — Diagram Number

SWITCH INTERLOCK

WD21X0557

No Longer Available
Item has been replaced by
WD21X10261

805 — Diagram Number

LEAF SWITCH

WD01X1363

No Longer Available
Item has been replaced by
WD1X1363

806 — Diagram Number

SHIELD SWITCH

WD12X0370

No Longer Available
Item has been replaced by
WD12X370

807 — Diagram Number

Dishwasher plastic inner door

WD31X10004

^$339.90

Temporarily Out of Stock.

810 — Diagram Number

SCR 8-18X7/8 BT

WD02X0322

No Longer Available
Item has been replaced by
WD2X322

811 — Diagram Number

RINSE AID INJ ASM

WD12X0398

No Longer Available
Item has been replaced by
WD35X10346

815 — Diagram Number

Dishwasher door vent

WD12X10026

^$8.17

Add to Cart

817 — Diagram Number

SCR 8-32 PNT 1/2 S

WD01X0550

No Longer Available
Item has been replaced by
WD1X550

818 — Diagram Number

BEARING HINGE ARM

WD12X10025

No Longer Available
Item has been replaced by
NLA ITEM

820 — Diagram Number

VENT PAD

WD01X1467

No Longer Available
Item has been replaced by
WD1X1467

822 — Diagram Number

COVER DETERGENT CUP

WD16X0297

No Longer Available
Item has been replaced by
WD16X297

823 — Diagram Number

SHAFT/HANDLE DET CUP TM

WD16X0313

No Longer Available
Item has been replaced by
WD16X313

827 — Diagram Number

FASTENER (DET CVR SHAFT)

WD02X0425

No Longer Available
Item has been replaced by
NLA ITEM

827 — Diagram Number

FASTENER (DET CVR SHAFT)

WD02X0425

No Longer Available
Item has been replaced by
NLA ITEM

828 — Diagram Number

LATCH DETERGENT CUP

WD16X10005

No Longer Available
Item has been replaced by
WD16X10011

829 — Diagram Number

CAP FILL

WD12X10024

No Longer Available
Item has been replaced by
WD12X10284

837 — Diagram Number

SPRING TIMER LEVER

WD03X0749

No Longer Available
Item has been replaced by
WD3X749

840 — Diagram Number

DETERGENT TRIP SPRING

WD03X0764

No Longer Available
Item has been replaced by
WD3X764

843 — Diagram Number

GASKET

WD08X10014

No Longer Available
Item has been replaced by
WD08X10057

850 — Diagram Number

DRIP SHIELD

WD12X0338

No Longer Available
Item has been replaced by
WD12X338

853 — Diagram Number

CAM TIMER

WD16X10001

No Longer Available
Item has been replaced by
NLA ITEM

861 — Diagram Number

DETERGENT TIMER LEVER

WD12X0324

No Longer Available
Item has been replaced by
WD12X324

896 — Diagram Number

SHIELD TIMER

WD12X0429

No Longer Available
Item has been replaced by
WD31X10141

902 — Diagram Number

INSERT ESCUTCHEON

WD34X10052

No Longer Available

Temporarily Out of Stock.

904 — Diagram Number

Dishwasher Timer

WD21X10013

No Longer Available
Item has been replaced by
NLA ITEM

905 — Diagram Number

SWITCH PUSHBUTTON

WD21X0806

No Longer Available
Item has been replaced by
NLA ITEM

906 — Diagram Number

SWITCH PUSHBUTTON CYCLE

WD21X0732

No Longer Available
Item has been replaced by
NLA ITEM

910 — Diagram Number

KNOB TIMER

WD09X0349

No Longer Available
Item has been replaced by
WD9X349

933 — Diagram Number

COVER SW

WD12X10016

^$5.67

Temporarily Out of Stock.

943 — Diagram Number

SCREW ESCUTCHEON FRAME

WZ05X0219

No Longer Available
Item has been replaced by
WZ5X219D

970 — Diagram Number

KNOB, LATCH HANDLE BK

WD09X0351

No Longer Available
Item has been replaced by
WD9X351

971 — Diagram Number

SCREW LATCH KNOB

WZ02X0045

No Longer Available
Item has been replaced by
WZ2X45D

ESCUTCHEON & DOOR ASSEMBLY

(GSD2220Z05BB)
