MOTOR-PUMP MECHANISM

(GSD2100N10BB)

32 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

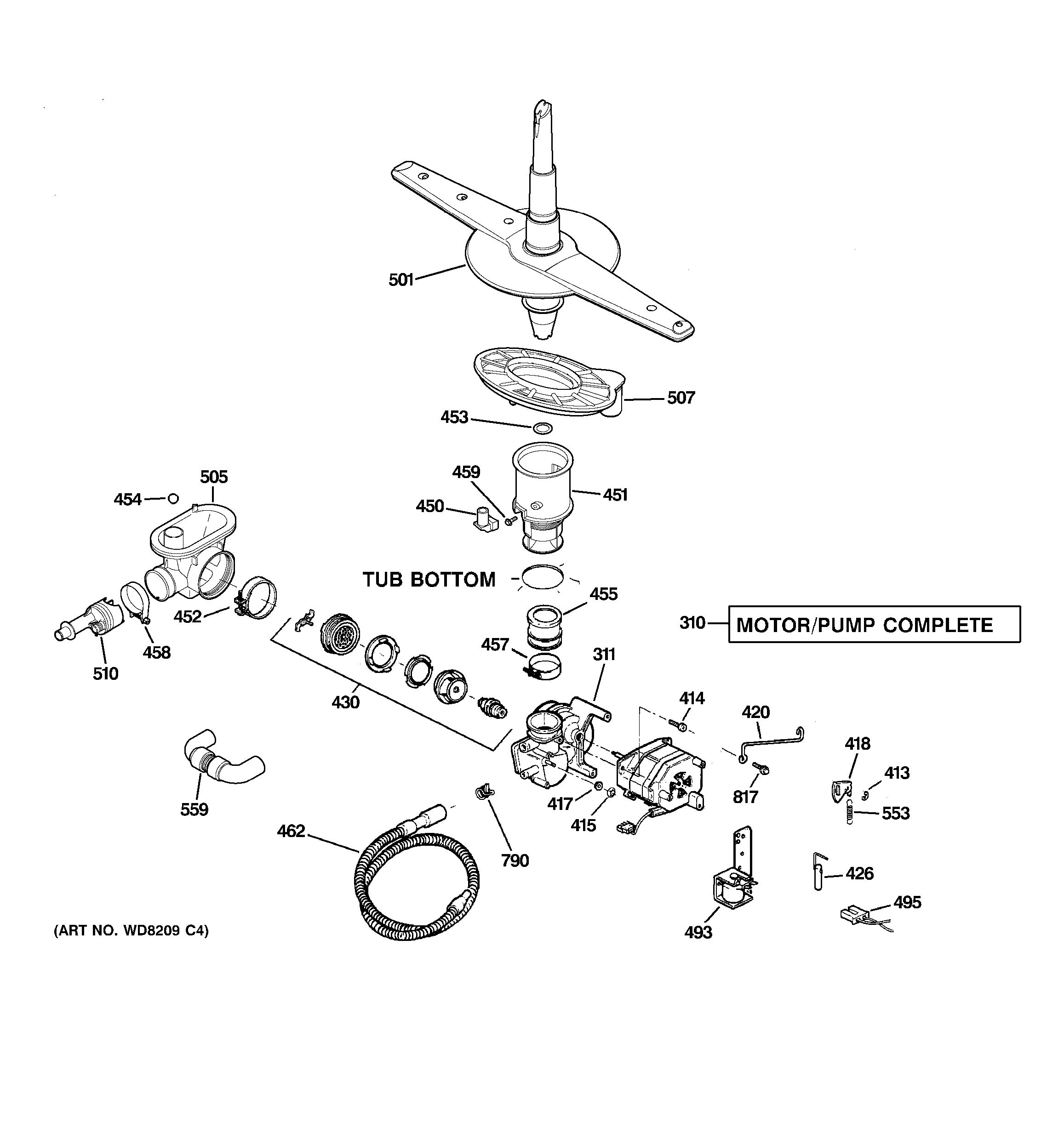

Use the diagram to find the number of the part you need.

310 — Diagram Number

MECHANISM S/S ASM

WD26X10035

No Longer Available
Item has been replaced by
WD26X10051

311 — Diagram Number

HOUSING PUMP ASSY

WD19X10020

^$76.40

Add to Cart

413 — Diagram Number

PS RETAINER

WD03X0487

No Longer Available
Item has been replaced by
WD3X487D

414 — Diagram Number

SCREW MECH HANGER

WD02X0444

No Longer Available
Item has been replaced by
WD2X444

415 — Diagram Number

FASTENER PUSHNUT

WD02X0429

No Longer Available
Item has been replaced by
WR2X7054

417 — Diagram Number

GATE SHAFT SEAL

WD08X0181

No Longer Available
Item has been replaced by
WD8X181

418 — Diagram Number

ARM VALVE

WD01X10343

No Longer Available
Item has been replaced by
WD01X22721

426 — Diagram Number

ARMATURE LINK ASSEMBLY

WD01X1316

No Longer Available
Item has been replaced by
WD1X1316

430 — Diagram Number

BLADE CUTTER

WD19X10039

^$20.40

Add to Cart

450 — Diagram Number

DISHWASHER COUPLER

WD01X10342

^$5.67

Add to Cart

451 — Diagram Number

Dishwasher spray arm base

WD12X10244

^$78.75

Add to Cart

452 — Diagram Number

CLAMP, SUMP

WD01X1392

No Longer Available
Item has been replaced by
WD1X1392

453 — Diagram Number

BEARING SPRAY ARM

WD01X10340

^$5.46

Add to Cart

454 — Diagram Number

BALL FILTER - WHITE

WD12X10246

No Longer Available
Item has been replaced by
WD12X10408

455 — Diagram Number

CONNECTOR PUMP ASM

WD18X0214

No Longer Available
Item has been replaced by
WD18X214

457 — Diagram Number

CLAMP (PUMP CONNECTOR)

WD01X1376

No Longer Available
Item has been replaced by
WD1X1376

458 — Diagram Number

CLAMP

WD01X10341

^$10.29

Add to Cart

459 — Diagram Number

Dishwasher HEX HEAD SCREW 8-16 1/2 STAINLESS STEEL

WD02X10067

^$6.07

Add to Cart

462 — Diagram Number

Dishwasher Drain Hose

WD24X10014

^$27.20

Add to Cart

493 — Diagram Number

Dishwasher Drain Solenoid Assembly

WD21X10268

^$30.14

Add to Cart

495 — Diagram Number

HSNG SPECIAL-DRAIN SOLEN

WD21X10356

^$5.67

Add to Cart

501 — Diagram Number

DISHWASHER LOWER SPRAY ARM ASSEMBLY

WD22X10054

No Longer Available
Item has been replaced by
WD22X10055

505 — Diagram Number

Dishwasher Sump Inlet

WD18X10039

^$17.75

Add to Cart

507 — Diagram Number

FINE FILTER ASSEMBLY

WD12X10243

No Longer Available
Item has been replaced by
NLA ITEM

510 — Diagram Number

CHAMBER COLLECTION

WD12X10245

No Longer Available
Item has been replaced by
NLA ITEM

553 — Diagram Number

GATE ARM SPRINGS

WD03X0721

No Longer Available
Item has been replaced by
WD3X721

559 — Diagram Number

Dishwasher Chamber Hose

WD24X10041

^$6.93

Add to Cart

790 — Diagram Number

CONNECTOR PLUG CLAMP

WH01X2036

No Longer Available
Item has been replaced by
WH1X2036

790 — Diagram Number

Dishwasher Hose Clamp

WD01X10065

^$5.67

Add to Cart

790 — Diagram Number

CONNECTOR PLUG CLAMP

WH01X2036

No Longer Available
Item has been replaced by
WH1X2036

817 — Diagram Number

SCR 8-32 PNT 1/2 S

WD01X0550

No Longer Available
Item has been replaced by
WD1X550

817 — Diagram Number

SCREW HANGER

WD02X0445

No Longer Available
Item has been replaced by
WD02X10141
