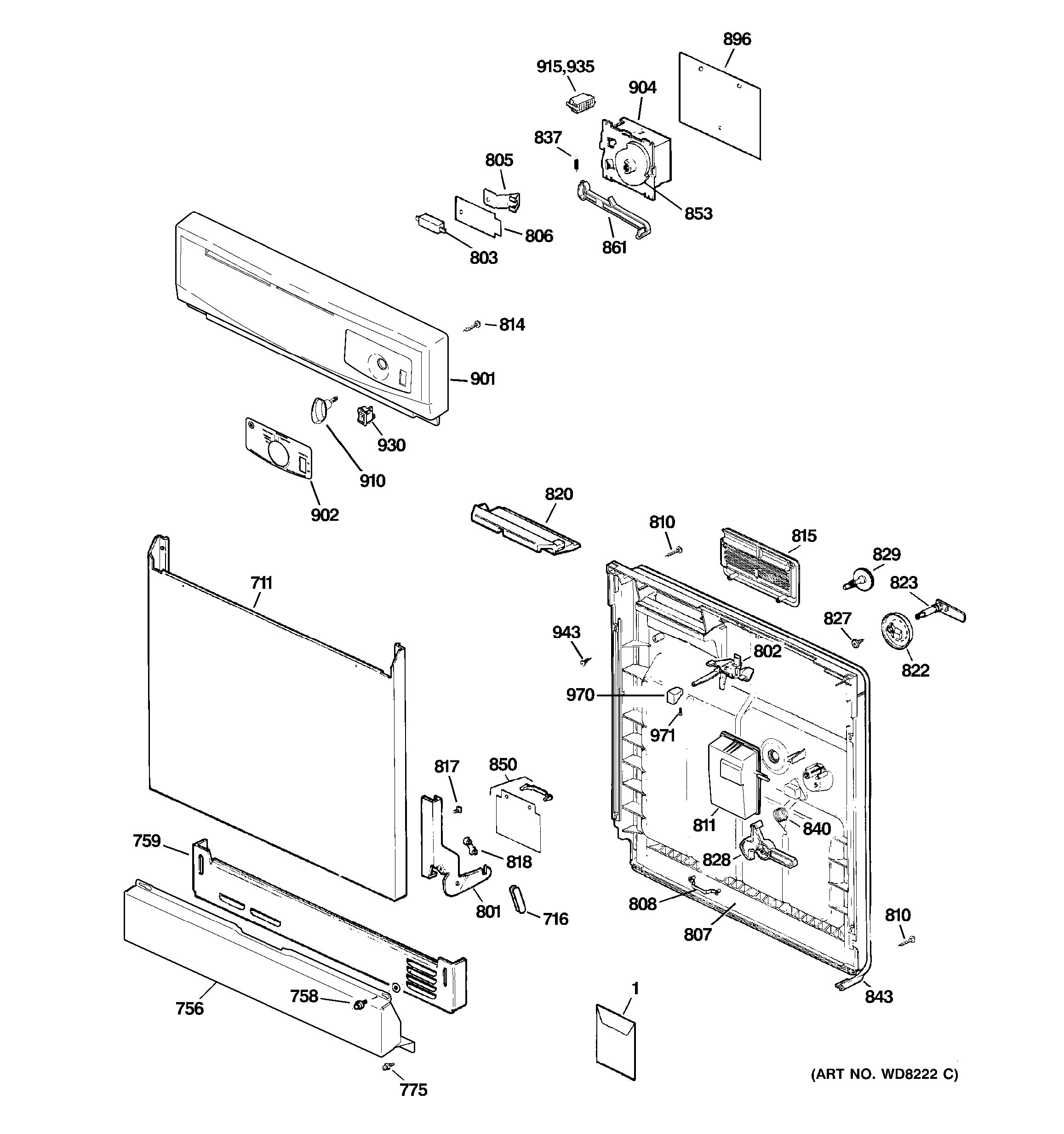

Assembly View for ESCUTCHEON & DOOR ASSEMBLY

703 — Diagram Number

STUD ROLLER - UPPER

WD12X10266

No Longer Available
Item has been replaced by
WD35X21039

704 — Diagram Number

Dishwasher Stud Roller-Lower Rack

WD12X10265

No Longer Available
Item has been replaced by
WD35X21038

711 — Diagram Number

Dishwasher Front Panel Black

WD31X10024

^$19.50

Add to Cart

716 — Diagram Number

Dishwasher hinge link

WD14X10009

^$6.07

Add to Cart

742 — Diagram Number

Screw

WD02X5166

No Longer Available
Item has been replaced by
WD2X5166

756 — Diagram Number

Dishwasher finished access panel black

WD27X10223

No Longer Available
Item has been replaced by
NLA ITEM

758 — Diagram Number

SCR 8-32 HXP 1/4 S

WD02X10162

^$5.67

Add to Cart

759 — Diagram Number

PANEL TOE KICK - BLACK

WD27X10068

^$196.70

Add to Cart

775 — Diagram Number

SCR 10-16 HXW 3/8 S

WD02X10127

No Longer Available
Item has been replaced by
NLA ITEM

801 — Diagram Number

ARM HINGE LH

WD14X10029

^$15.23

Add to Cart

801 — Diagram Number

ARM HINGE RH

WD14X10030

^$15.23

Add to Cart

802 — Diagram Number

Dishwasher Door Latch Assembly

WD13X10003

^$27.20

Add to Cart

803 — Diagram Number

Dishwasher All Purpose Switch

WD21X10261

^$17.78

Add to Cart

805 — Diagram Number

LEAF SWITCH

WD01X1363

No Longer Available
Item has been replaced by
WD1X1363

806 — Diagram Number

SHIELD SWITCH

WD12X0370

No Longer Available
Item has been replaced by
WD12X370

807 — Diagram Number

Dishwasher plastic inner door

WD31X10004

^$339.90

Add to Cart

808 — Diagram Number

CLIP HARNESS

WD01X10110

^$5.67

Add to Cart

810 — Diagram Number

SCREW 8-32X5/8

WD02X0296

No Longer Available
Item has been replaced by
WD2X296

810 — Diagram Number

SCREW 8-18AB TR 7/8S

WD02X10106

^$5.67

Add to Cart

811 — Diagram Number

KIT RINSE AID DISPENSER

WD12X10264

^$27.62

Add to Cart

814 — Diagram Number

SCR 8-10 PL TRP 1/2 S

WD02X10104

^$5.67

Add to Cart

815 — Diagram Number

Dishwasher door vent

WD12X10026

^$8.17

Add to Cart

817 — Diagram Number

SCR 8-32 PNT 1/2 S

WD01X0550

No Longer Available
Item has been replaced by
WD1X550

817 — Diagram Number

SCREW HANGER

WD02X0445

No Longer Available
Item has been replaced by
WD02X10141

818 — Diagram Number

BEARING HINGE ARM

WD12X10025

No Longer Available
Item has been replaced by
NLA ITEM

820 — Diagram Number

VENT PAD

WD01X1467

No Longer Available
Item has been replaced by
WD1X1467

822 — Diagram Number

COVER DETERGENT CUP

WD16X0297

No Longer Available
Item has been replaced by
WD16X297

823 — Diagram Number

SHAFT/HANDLE DET CUP TM

WD16X0313

No Longer Available
Item has been replaced by
WD16X313

826 — Diagram Number

SCR 8-18 B POR 1/4 SS

WD02X10130

^$5.67

Add to Cart

827 — Diagram Number

FASTENER (DET CVR SHAFT)

WD02X0425

No Longer Available
Item has been replaced by
NLA ITEM

828 — Diagram Number

Dishwasher detergent cup dispenser arm

WD16X10011

^$13.10

Add to Cart

829 — Diagram Number

CAP FILL

WD12X10024

No Longer Available
Item has been replaced by
WD12X10284

837 — Diagram Number

SPRING TIMER LEVER

WD03X0749

No Longer Available
Item has been replaced by
WD3X749

840 — Diagram Number

DETERGENT TRIP SPRING

WD03X0764

No Longer Available
Item has been replaced by
WD3X764

843 — Diagram Number

DISHWASHER DOOR GASKET

WD08X10057

^$79.40

Add to Cart

850 — Diagram Number

DRIP SHIELD

WD12X0338

No Longer Available
Item has been replaced by
WD12X338

853 — Diagram Number

CAM TIMER

WD16X10010

No Longer Available
Item has been replaced by
NLA ITEM

861 — Diagram Number

DETERGENT TIMER LEVER

WD12X0324

No Longer Available
Item has been replaced by
WD12X324

896 — Diagram Number

SHIELD TIMER

WD12X0429

No Longer Available
Item has been replaced by
WD31X10141

901 — Diagram Number

ESCUTCHEON & INSERT ASM

WD34X11303

No Longer Available
Item has been replaced by
NLA ITEM

901 — Diagram Number

ESCUTCHEON

WD34X11331

No Longer Available
Item has been replaced by
WD34X11844

902 — Diagram Number

INSERT ESCUTCHEON

WD34X11353

No Longer Available

Temporarily Out of Stock.

904 — Diagram Number

TIMER

WD21X10350

No Longer Available
Item has been replaced by
WD21X33643

910 — Diagram Number

Dishwasher timer knob

WD09X10024

^$5.40

Add to Cart

915 — Diagram Number

HOUSING TERMINAL

WD01X10349

^$7.04

Add to Cart

930 — Diagram Number

SWITCH ROCKER

WD21X10083

No Longer Available
Item has been replaced by
NLA ITEM

943 — Diagram Number

SCREW ESCUTCHEON FRAME

WZ05X0219

No Longer Available
Item has been replaced by
WZ5X219D

970 — Diagram Number

KNOB, LATCH HANDLE BK

WD09X0351

No Longer Available
Item has been replaced by
WD9X351

971 — Diagram Number

SCREW LATCH KNOB

WZ02X0045

No Longer Available
Item has been replaced by
WZ2X45D

ESCUTCHEON & DOOR ASSEMBLY

(GSD2100N10BB)

49 Results
