MACHINE COMPARTMENT

(GNE27JYMNFFS)

33 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

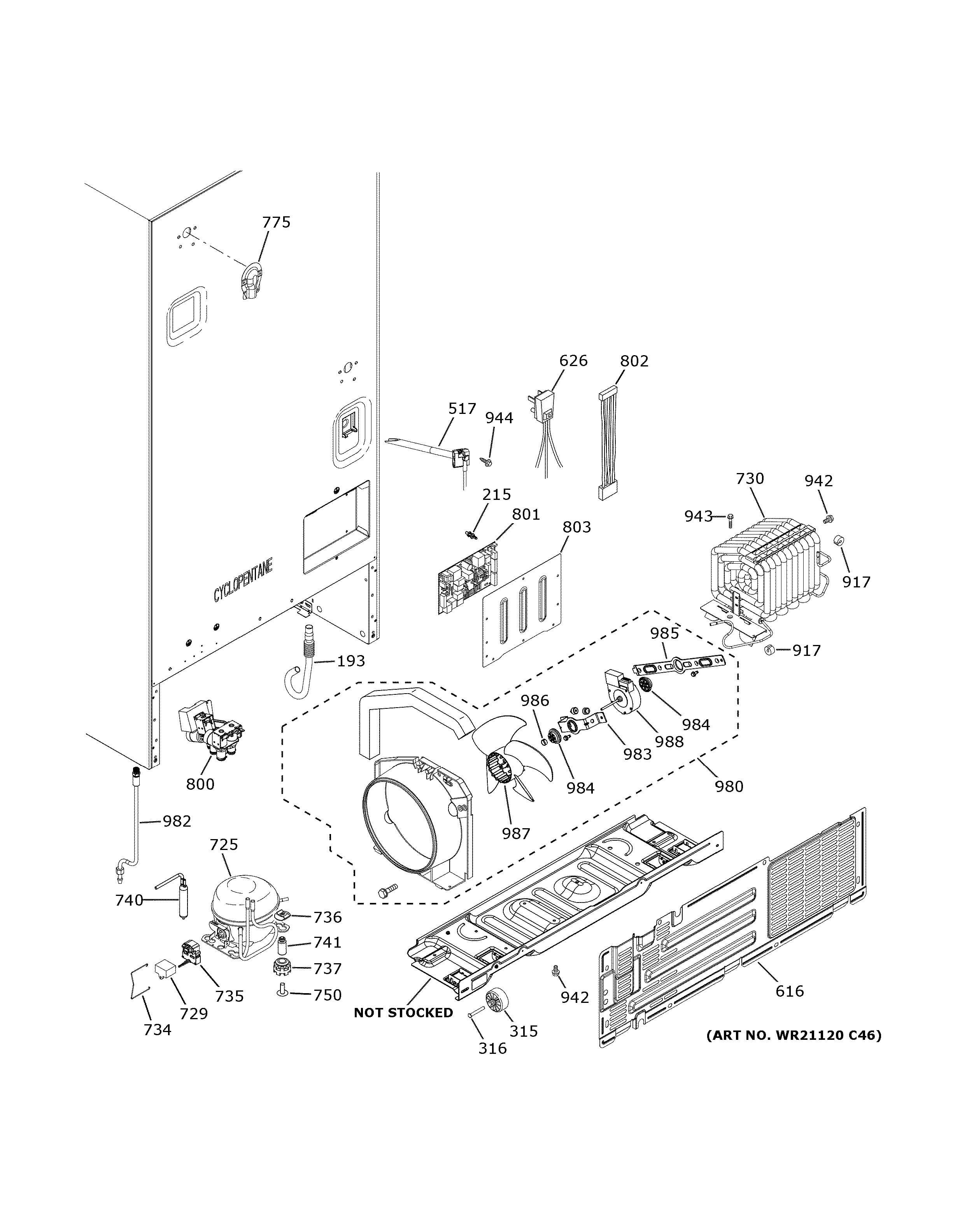

Use the diagram to find the number of the part you need.

193 — Diagram Number

DRAIN TUBE

WR02X30155

^$18.99

Add to Cart

215 — Diagram Number

STAND OFF

WR02X10663

^$6.99

Add to Cart

315 — Diagram Number

MOBILITY WHEEL

WR02X30159

^$19.72

Add to Cart

316 — Diagram Number

MOBILITY WHEEL PIN

WR02X30160

^$17.63

Add to Cart

517 — Diagram Number

GROMMET AND TUBE IM ASM

WR29X24766

^$96.73

Add to Cart

616 — Diagram Number

COVER ACCESS ASSEMBLY

WR82X22767

^$46.60

Add to Cart

626 — Diagram Number

POWER CORD

WR23X30131

^$32.79

Add to Cart

725 — Diagram Number

COMPRESSOR ASM

WR87X27951

No Longer Available
Item has been replaced by
WR87X10224

729 — Diagram Number

CAPACITOR 12 uF

WR55X23731

No Longer Available
Item has been replaced by
WR55X24064

730 — Diagram Number

L-FIN AL CONDENSER 10 PASS

WR87X32326

^$92.12

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

734 — Diagram Number

CLIP RETAINER MEI

WR02X26153

^$6.09

Add to Cart

735 — Diagram Number

OVERLOAD PTCR COMBO

WR08X25466

^$17.07

Add to Cart

736 — Diagram Number

CLIP COMPRESSOR MOUNT

WR02X8203

No Longer Available
Item has been replaced by
WR2X8203

737 — Diagram Number

GROMMET

WR02X22869

No Longer Available
Item has been replaced by
WR02X40305

740 — Diagram Number

DRYER FILTER ASS'Y

WR86X0096

No Longer Available
Item has been replaced by
WR86X25269

741 — Diagram Number

STUD MTG COMPR

WR01X1779

No Longer Available
Item has been replaced by
WR1X1779

750 — Diagram Number

SCREW 10-32 TR 1/2

WR01X1786

No Longer Available
Item has been replaced by
WR1X1786

775 — Diagram Number

COVER WATER LINE

WR17X13124

^$6.07

Temporarily Out of Stock.

800 — Diagram Number

VALVE ISOLATION ASSEMBLY

WR57X30891

No Longer Available
Item has been replaced by
WR57X30890

801 — Diagram Number

BOARD ASM MAIN CONTROL

WR55X35267

No Longer Available
Item has been replaced by
WR55X46945

802 — Diagram Number

HARNESS BOARD INDIV

WR23X26787

^$47.18

Add to Cart

803 — Diagram Number

Refrigerator Main Board Enclosure

WR02X12025

^$21.24

Add to Cart

917 — Diagram Number

GROMMET

WR02X13573

^$6.97

Add to Cart

942 — Diagram Number

SCREW 10-32 TT HXW 5/16

WR01X10252

No Longer Available
Item has been replaced by
WR01X10654

943 — Diagram Number

SCREW 10-16 B HXW 1/4 S

WR01X25308

^$8.94

Add to Cart

944 — Diagram Number

SCREW 8-18 AB IHW 5/8 S

WR01X10035

No Longer Available
Item has been replaced by
WR01X10652

980 — Diagram Number

CONDENSER FAN & HOUSING

WR60X29573

^$100.81

Add to Cart

982 — Diagram Number

TUBE LEAD

WR02X13774

^$20.80

Add to Cart

983 — Diagram Number

BRKT COND FAN (MTG)

WR02X10521

No Longer Available
Item has been replaced by
WR02X11863

985 — Diagram Number

BRACKET COND FAN - REAR

WR02X10593

^$13.59

Add to Cart

986 — Diagram Number

GROMMET FAN MOTOR

WR02X10520

^$7.41

Add to Cart

987 — Diagram Number

BLADE CONF FAN ASM

WR60X24484

^$24.16

Add to Cart

988 — Diagram Number

MOTOR DC COND FAN

WR60X24483

No Longer Available
Item has been replaced by
WR60X10209
