FREEZER SHELVES

(GNE27JYMNFFS)

14 Results

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

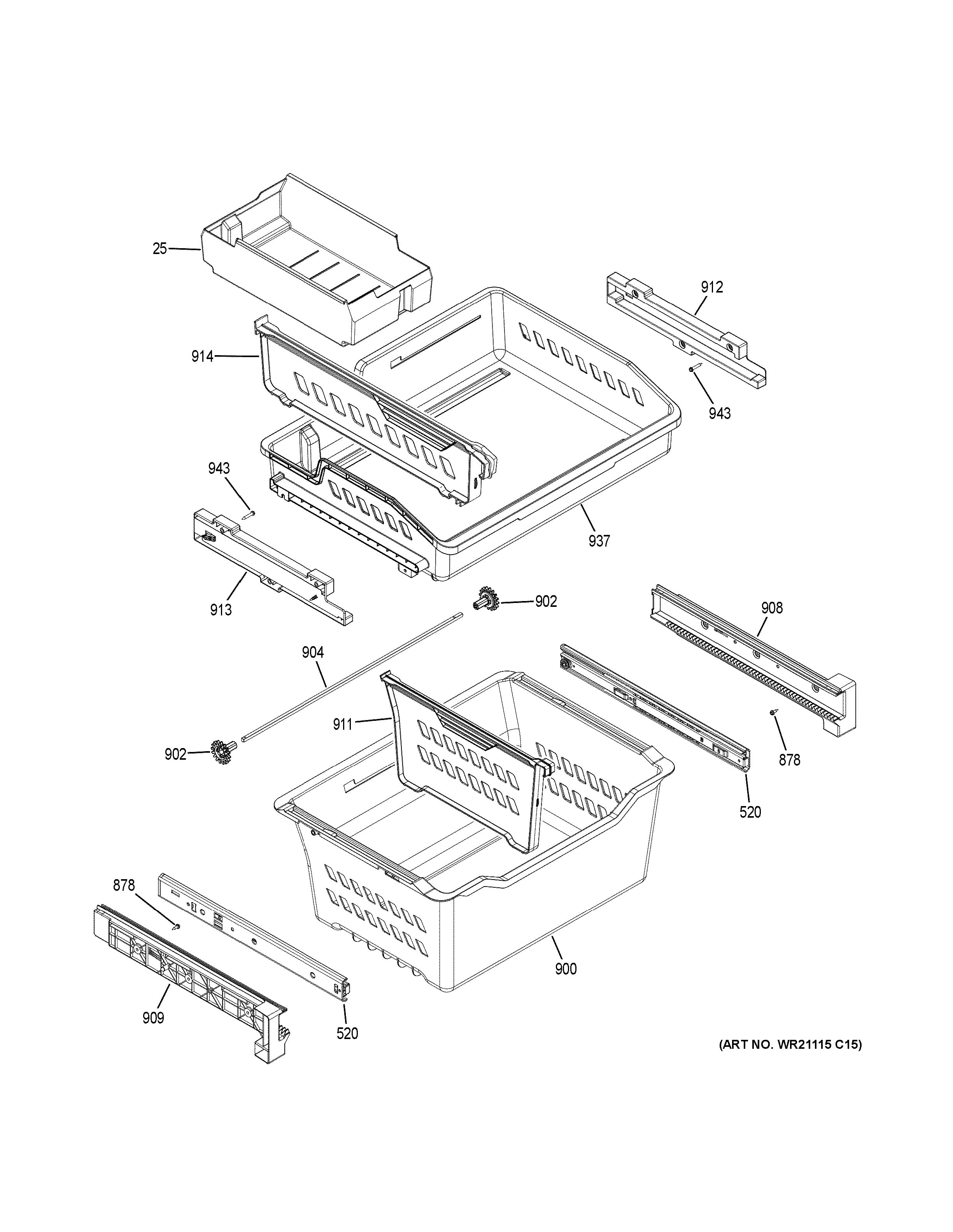

View Larger | Change Section/Diagram

25 — Diagram Number

FREEZER ICE BUCKET

WR30X30260

^$54.31

520 — Diagram Number

SLIDE BASKET LOWER FZ

WR72X24815

^$216.54

878 — Diagram Number

SCR 10-14 PL FLT20 3/4 S

WR01X10939

^$6.99

900 — Diagram Number

FREEZER LOWER BASKET

WR71X30122

^$169.92

902 — Diagram Number

GEAR PINION RH

WR02X13387

^$40.47

904 — Diagram Number

CROSS BAR PINION

WR02X32247

^$28.93

908 — Diagram Number

HOLDER SLIDE FZ RH

WR72X24767

^$151.95

909 — Diagram Number

HOLDER SLIDE FZ LH

WR72X24768

^$151.95

911 — Diagram Number

DIVIDER BASKET LOWER FZ

WR02X24849

^$125.16

912 — Diagram Number

SLIDE BASKET UPPER RH

WR72X24868

^$101.29

913 — Diagram Number

SLIDE BASKET UPPER LH

WR72X24869

^$101.29

914 — Diagram Number

DIVIDER

WR02X27906

^$29.18

937 — Diagram Number

FREEZER UPPER BASKET

WR71X30132

^$125.11

943 — Diagram Number

SCREW 10-16 B HXW 1/4 S

WR01X25308

^$8.94
