MACHINE COMPARTMENT

(GNE25JMKBFES)

32 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

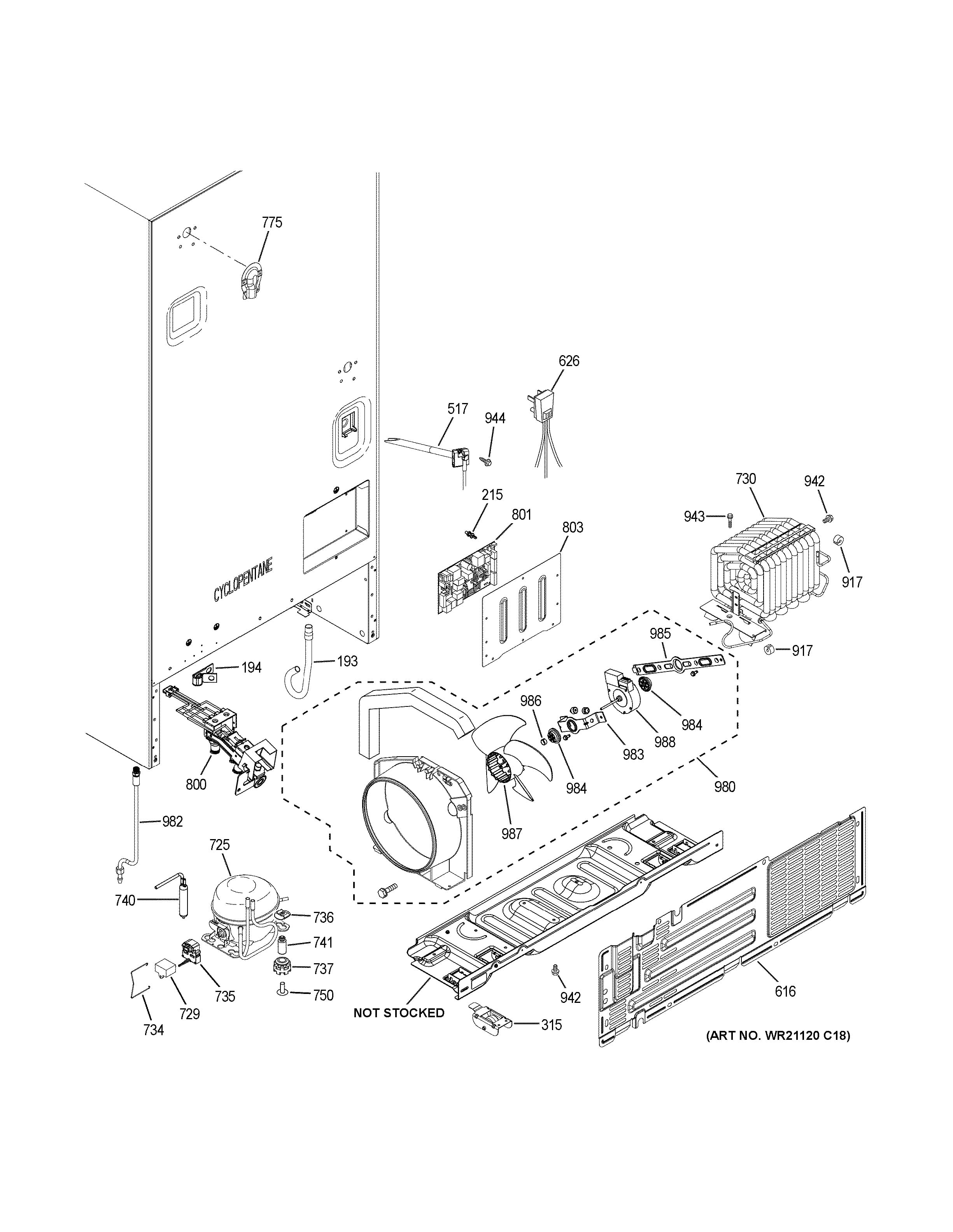

Use the diagram to find the number of the part you need.

193 — Diagram Number

TUBE DRAIN

WR02X11426

^$12.87

Add to Cart

194 — Diagram Number

CLAMP CABLE

WR01X10684

^$13.28

Add to Cart

215 — Diagram Number

STAND OFF

WR02X10663

^$6.99

Add to Cart

315 — Diagram Number

MOBILITY BACK ASM

WR02X24943

^$117.95

Add to Cart

517 — Diagram Number

GROMMET AND TUBE IM ASM

WR29X24766

^$96.73

Add to Cart

616 — Diagram Number

COVER ACCESS

WR82X10110

No Longer Available
Item has been replaced by
WR82X10103

626 — Diagram Number

POWER CORD

WR23X30131

^$32.79

Add to Cart

725 — Diagram Number

Refrigerator Compressor Kit

WR87X10224

^$396.40

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

729 — Diagram Number

CAPACITOR

WR62X20693

No Longer Available
Item has been replaced by
WR55X24064

730 — Diagram Number

CONDENSER ASSEMBLY

WR87X24809

^$117.72

Not Available for Online Consumer Purchase
Call 1.800.432.2737 to Schedule Service.

734 — Diagram Number

CLIP RETAINER COMBO

WR02X22564

^$14.12

Add to Cart

735 — Diagram Number

REFRIGERATOR OVERLOAD

WR08X21100

^$80.71

Add to Cart

736 — Diagram Number

CLIP COMPRESSOR MOUNT

WR02X8203

No Longer Available
Item has been replaced by
WR2X8203

737 — Diagram Number

GROMMET COMPRESSOR

WR02X10099

No Longer Available
Item has been replaced by
WR02X40305

740 — Diagram Number

DRYER FILTER ASS'Y

WR86X0096

No Longer Available
Item has been replaced by
WR86X25269

741 — Diagram Number

STUD MTG COMPR

WR01X1779

No Longer Available
Item has been replaced by
WR1X1779

750 — Diagram Number

SCREW 10-32 TR 1/2

WR01X1786

No Longer Available
Item has been replaced by
WR1X1786

775 — Diagram Number

COVER WATER LINE

WR17X13124

^$6.07

Temporarily Out of Stock.

800 — Diagram Number

VALVE ISOLATION ASM

WR57X26569

No Longer Available
Item has been replaced by
WR57X30890

801 — Diagram Number

REFRIGERATOR CONTROL BOARD

WR55X26586

^$277.37

Add to Cart

803 — Diagram Number

COVER MAIN BOARD ASM

WR02X25127

^$62.80

Add to Cart

917 — Diagram Number

GROMMET

WR02X13573

^$6.97

Add to Cart

942 — Diagram Number

SCREW 10-32 TT HXW 5/16

WR01X10252

No Longer Available
Item has been replaced by
WR01X10654

943 — Diagram Number

SCREW 10-16 B HXW 1/4 S

WR01X25308

^$8.94

Add to Cart

944 — Diagram Number

SCREW 8-18 AB IHW 5/8 S

WR01X10035

No Longer Available
Item has been replaced by
WR01X10652

980 — Diagram Number

COND FAN & HOUSING ASSEMBLY

WR60X25869

^$182.37

Add to Cart

982 — Diagram Number

TUBE LEAD

WR02X13774

^$20.80

Add to Cart

983 — Diagram Number

BRKT COND FAN (MTG)

WR02X10521

No Longer Available
Item has been replaced by
WR02X11863

985 — Diagram Number

BRACKET COND FAN - REAR

WR02X10593

^$13.59

Add to Cart

986 — Diagram Number

GROMMET FAN MOTOR

WR02X10520

^$7.41

Add to Cart

987 — Diagram Number

BLADE CONF FAN ASM

WR60X24484

^$24.16

Temporarily Out of Stock.

988 — Diagram Number

MOTOR DC COND FAN

WR60X24483

No Longer Available
Item has been replaced by
WR60X10209
