SUSPENSION, PUMP & DRIVE COMPONENTS

(GLWN2800D0WS)

12 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

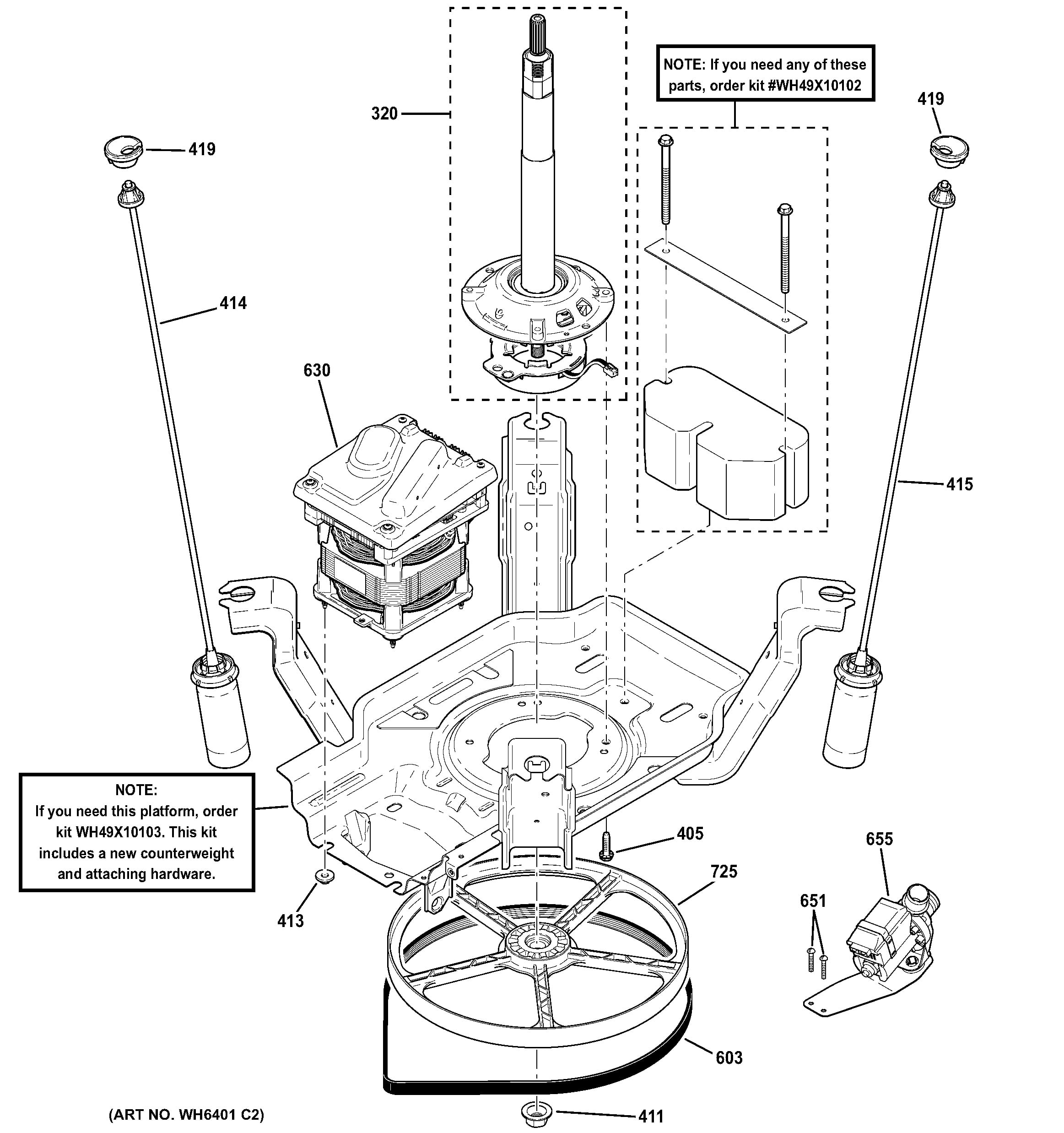

View Larger | Change Section/Diagram

320 — Diagram Number

Washing Machine Shaft & Tube Assembly

WH38X10019

^$209.20

Add to Cart

405 — Diagram Number

SCR 1/4-20 B HXW 3/4 SNS

WH02X1201

No Longer Available
Item has been replaced by
WH2X1201

411 — Diagram Number

NUT PULLEY

WH02X1203

No Longer Available
Item has been replaced by
WH2X1203

413 — Diagram Number

HEX NUT OVERMOLD ASM

WH02X10233

No Longer Available
Item has been replaced by
NLA ITEM

414 — Diagram Number

Washing Machine Front Rod & Spring Assembly

WH16X10158

^$26.96

Add to Cart

415 — Diagram Number

Washing Machine Rear Rod & Spring Assembly

WH16X10159

^$91.83

Add to Cart

419 — Diagram Number

Washer Socket Support Rod

WH01X10001

^$6.07

Add to Cart

603 — Diagram Number

Washing machine drive belt

WH01X10302

^$18.84

Add to Cart

630 — Diagram Number

Laundry motor and inverter assembly

WH20X10092

No Longer Available
Item has been replaced by
NLA ITEM

651 — Diagram Number

SCREW 1/4-20 TPT 1H 1/2

WH02X10123

^$5.67

Add to Cart

655 — Diagram Number

WASHING MACHINE DRAIN PUMP MOTOR

WH23X10043

^$66.07

Add to Cart

725 — Diagram Number

WASHING MACHINE DRIVE PULLEY

WH07X10019

^$42.11

Add to Cart
