TUB, BASKET & AGITATOR

(GLWN2800D0WS)

23 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

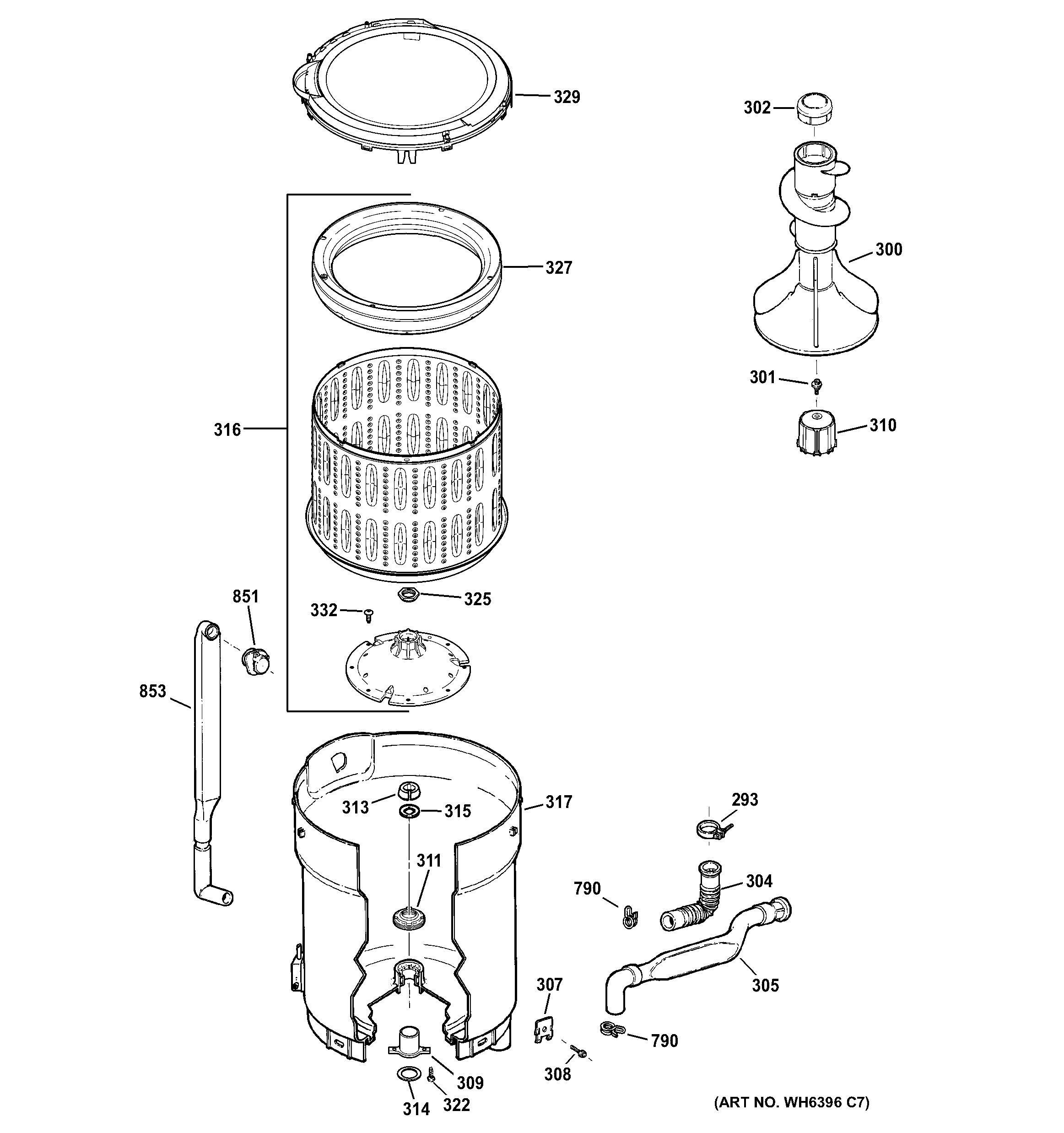

View Larger | Change Section/Diagram

293 — Diagram Number

CLAMP TUB OUTLET

WH01X10134

No Longer Available
Item has been replaced by
NLA ITEM

300 — Diagram Number

Washer Agitator Assembly

WH43X10034

^$70.49

Add to Cart

301 — Diagram Number

Washing machine screw 1/4-20 MCH HXW 5/8 S

WH02X10237

^$2.84

Add to Cart

302 — Diagram Number

DISPENSER ASM.

WH43X0139

No Longer Available
Item has been replaced by
WH43X139

304 — Diagram Number

Washing Machine Drain Hose Connector

WH41X10163

No Longer Available
Item has been replaced by
WH41X22935

305 — Diagram Number

HOSE DRAIN ASM

WH41X10285

No Longer Available
Item has been replaced by
NLA ITEM

307 — Diagram Number

CLAMP - TUB

WH01X2730

No Longer Available
Item has been replaced by
WH1X2730

308 — Diagram Number

SCREW 5/16-18 TPT IHW S N

WH02X10267

^$5.67

Add to Cart

309 — Diagram Number

BEARING TUB

WH02X1198

No Longer Available
Item has been replaced by
WH2X1198

310 — Diagram Number

WASHING MACHINE AGITATOR COUPLING

WH43X10032

^$14.23

Add to Cart

313 — Diagram Number

RING SPLIT

WH02X1195

No Longer Available
Item has been replaced by
NLA ITEM

314 — Diagram Number

WASHER TUB BEARING

WH02X1197

No Longer Available
Item has been replaced by
WH2X1197

315 — Diagram Number

FLAT WASHER

WH02X1199

No Longer Available
Item has been replaced by
WH2X1199

316 — Diagram Number

WASHER BASKET, HUB, & RING

WH45X10112

No Longer Available
Item has been replaced by
NLA ITEM

317 — Diagram Number

Washer Tub Assembly

WH45X20473

^$87.05

Add to Cart

322 — Diagram Number

Screw

WH02X1194

No Longer Available
Item has been replaced by
WE02X30757

325 — Diagram Number

NUT HUB

WH02X1193

No Longer Available
Item has been replaced by
WH2X1193

327 — Diagram Number

BALANCE RING ASSEMBLY

WH45X10114

No Longer Available
Item has been replaced by
NLA ITEM

329 — Diagram Number

COVER TUB

WH45X10113

No Longer Available
Item has been replaced by
WH45X10134

332 — Diagram Number

Laundry screw 10-32 B TRT-25 5/8

WH02X10139

^$6.07

Add to Cart

790 — Diagram Number

CONNECTOR PLUG CLAMP

WH01X2036

No Longer Available
Item has been replaced by
WH1X2036

851 — Diagram Number

GASKET FLOOD HEAD

WH01X2729

No Longer Available
Item has been replaced by
WH1X2729

853 — Diagram Number

HOSE FLOOD

WH41X10297

No Longer Available
Item has been replaced by
NLA ITEM
