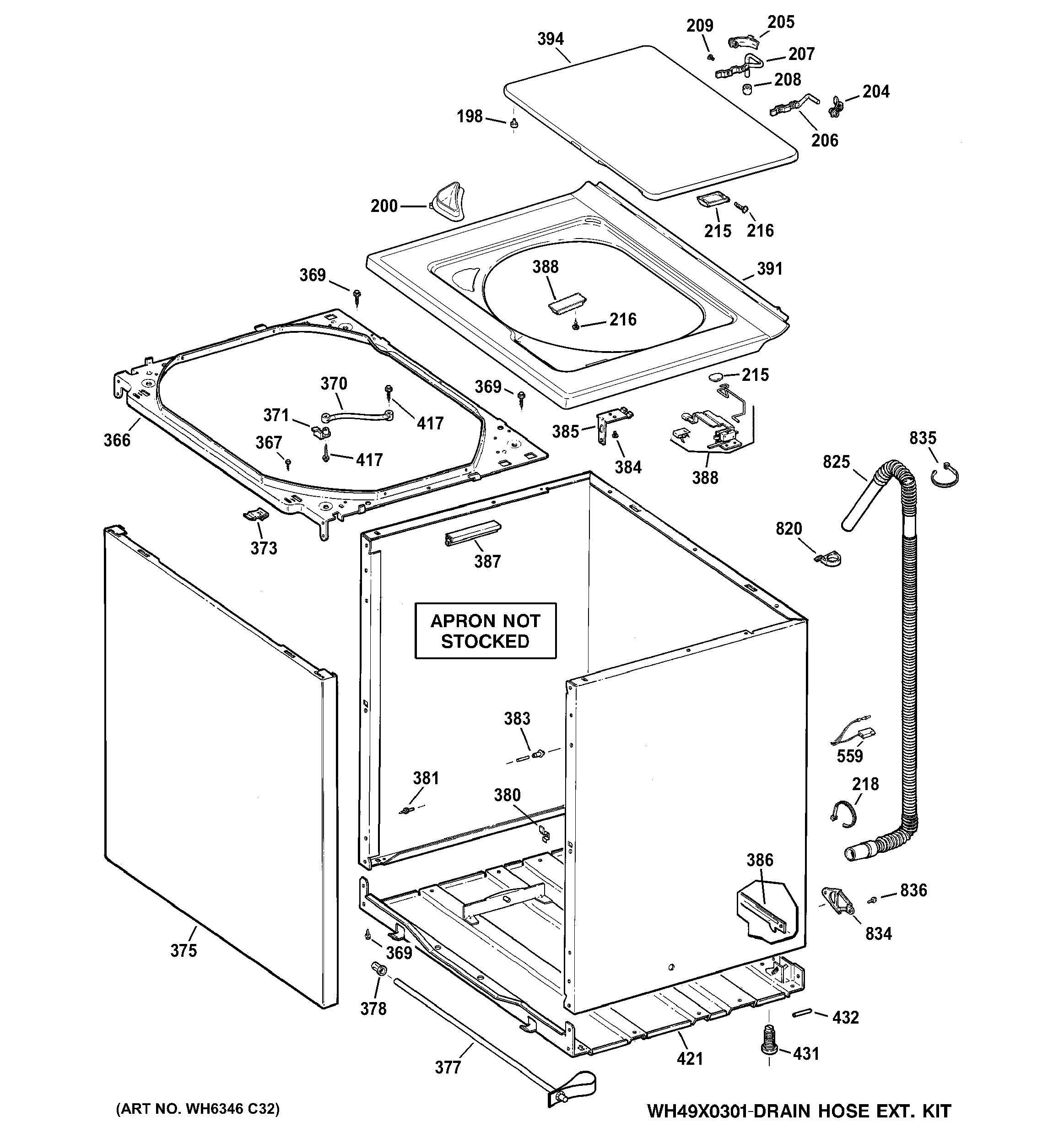

Assembly View for CABINET, COVER & FRONT PANEL

198 — Diagram Number

BUMPER LID

WH01X2722

No Longer Available
Item has been replaced by
WH1X2722

200 — Diagram Number

FUNNEL BLEACH

WH01X10057

No Longer Available
Item has been replaced by
NLA ITEM

204 — Diagram Number

BUSHING HINGE (SINGLE)

WH01X2741

No Longer Available
Item has been replaced by
WH1X2741

205 — Diagram Number

Washer Hinge Bushing

WH01X10025

^$14.17

Add to Cart

206 — Diagram Number

HINGE WIREFORM (SHORT)

WH01X2740

No Longer Available
Item has been replaced by
WH1X2740

207 — Diagram Number

HINGE WIREFORM (LONG)

WH01X2743

No Longer Available
Item has been replaced by
NLA ITEM

208 — Diagram Number

BUMPER HINGE

WH01X2742

No Longer Available
Item has been replaced by
NLA ITEM

209 — Diagram Number

Screw

WH02X1211

No Longer Available
Item has been replaced by
WH2X1211

215 — Diagram Number

Washing Machine Lid Switch Magnet

WH12X10276

^$8.09

Add to Cart

216 — Diagram Number

Washer Screw 8-16

WH02X10217

No Longer Available
Item has been replaced by
NLA ITEM

218 — Diagram Number

Washer Wire Tie

WH01X10217

No Longer Available
Item has been replaced by
WH01X10704

366 — Diagram Number

WELD ASM ROD SUPPORT

WH46X10269

No Longer Available
Item has been replaced by
WH46X10270

367 — Diagram Number

SCREW ESCUTCHEON FRAME

WZ05X0219

No Longer Available
Item has been replaced by
WZ5X219D

369 — Diagram Number

SCR 8-18 AB IHW 7/16 SN

WH02X1217

No Longer Available
Item has been replaced by
WH2X1217

370 — Diagram Number

STRAP DAMPING

WH01X10046

No Longer Available
Item has been replaced by
NLA ITEM

371 — Diagram Number

RETAINER STRAP

WH01X2726

No Longer Available
Item has been replaced by
WH1X2726

373 — Diagram Number

Washing machine clip

WH02X10279

^$6.07

Add to Cart

375 — Diagram Number

PANEL & BRACE ASM WH

WH46X10109

No Longer Available
Item has been replaced by
WH46X10281

377 — Diagram Number

BAR SHIPPING

WH46X0344

No Longer Available
Item has been replaced by
WH46X25157

378 — Diagram Number

BUTTON PLUG

WH01X2745

No Longer Available
Item has been replaced by
WH1X2745

380 — Diagram Number

CLIP GROUND

WH02X1207

No Longer Available
Item has been replaced by
NLA ITEM

381 — Diagram Number

STUD GROUNDING

WH02X1190

No Longer Available
Item has been replaced by
WH2X1190

383 — Diagram Number

PIN ALIGNMENT

WH02X1189

No Longer Available
Item has been replaced by
WH2X1189

384 — Diagram Number

Washing Machine Screw 8-15 A 3/4 SP HXW

WH01X10109

No Longer Available
Item has been replaced by
NLA ITEM

385 — Diagram Number

COVER CLIP

WH01X10422

^$6.07

Add to Cart

386 — Diagram Number

WASHING MACHINE SELF-LEVELING BAR

WH46X10094

^$45.36

Add to Cart

387 — Diagram Number

WASHING MACHINE PRESSURE CONDUIT

WH41X10036

^$6.07

Add to Cart

388 — Diagram Number

WASHING MACHINE LID SWITCH ASSEMBLY

WH12X10334

^$25.61

Temporarily Out of Stock.

391 — Diagram Number

COVER ASM FINISHED WW

WH44X10027

No Longer Available
Item has been replaced by
NLA ITEM

394 — Diagram Number

LID ASM FINISHED

WH44X10303

No Longer Available
Item has been replaced by
WH44X20021

417 — Diagram Number

Washing machine screw 8-18 B IHW 1 S

WH02X10282

^$6.07

Add to Cart

421 — Diagram Number

BASE ASSEMBLY

WH46X10145

No Longer Available
Item has been replaced by
NLA ITEM

431 — Diagram Number

LEG LEVELING

WH02X1187

No Longer Available
Item has been replaced by
WH2X1187

432 — Diagram Number

PIN ROLL

WH02X1188

No Longer Available
Item has been replaced by
NLA ITEM

559 — Diagram Number

HOUSING TERMINAL

WH12X0538

No Longer Available
Item has been replaced by
NLA ITEM

820 — Diagram Number

CLIP ANTI-SIPHON

WH01X2725

No Longer Available
Item has been replaced by
WH1X2725

825 — Diagram Number

Washing Machine 4.5' Corrugated Drain Hose

WH41X10096

^$18.26

Add to Cart

834 — Diagram Number

CLIP (DRAIN HOSE EXT.)

WH16X0513

No Longer Available
Item has been replaced by
WH16X513

835 — Diagram Number

STRAP

WH01X10218

No Longer Available
Item has been replaced by
WH1X2594

836 — Diagram Number

SCR 8-18 AB IHWP 7/8 S

WH02X10162

No Longer Available
Item has been replaced by
WH02X10002

CABINET, COVER & FRONT PANEL

(GLWN2800D0WS)

40 Results
