CONTROLS & BACKSPLASH

(GLWN2800D0WS)

28 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

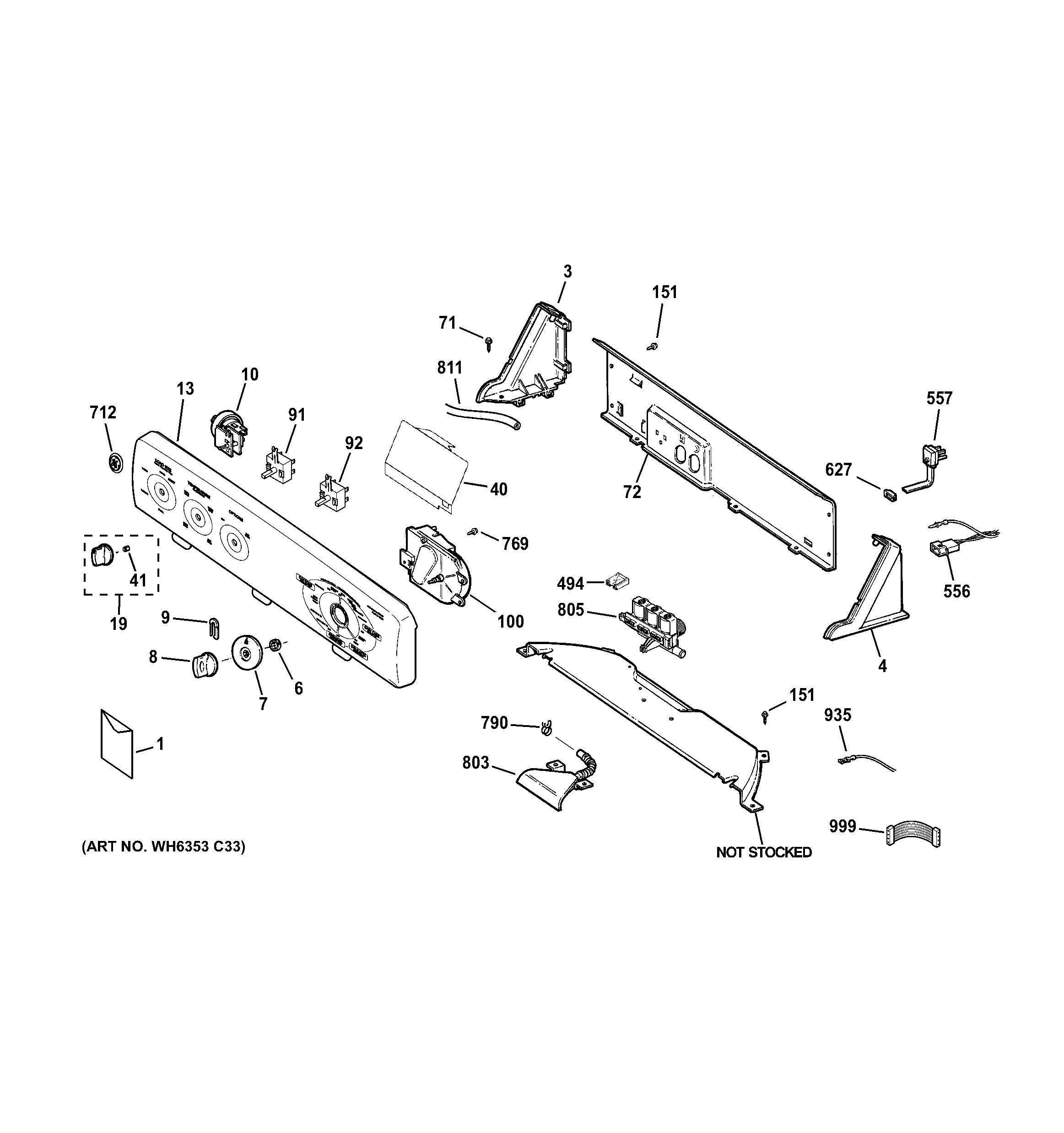

Use the diagram to find the number of the part you need.

3 — Diagram Number

ENDCAP WASHER LH

WH42X22575

^$27.87

Add to Cart

4 — Diagram Number

ENDCAP WASHER RH

WH42X22576

^$18.27

Add to Cart

6 — Diagram Number

Washing machine compression ring

WH02X10093

^$13.86

Add to Cart

7 — Diagram Number

DIAL ASM

WH11X10062

No Longer Available
Item has been replaced by
NLA ITEM

8 — Diagram Number

KNOB ASM CONTROL

WH01X10660

No Longer Available
Item has been replaced by
NLA ITEM

9 — Diagram Number

CLIP SPRING

WH01X2117

No Longer Available
Item has been replaced by
WH1X2117

10 — Diagram Number

Washing Machine Pressure Switch

WH12X10479

^$44.64

Add to Cart

13 — Diagram Number

BACKSPLASH ASM

WH42X10946

^$264.90

Add to Cart

19 — Diagram Number

KNOB AND CLIP ASM

WE1M1034

No Longer Available
Item has been replaced by
WE01X20380

40 — Diagram Number

SHIELD TIMER

WH02X10354

^$11.55

Add to Cart

41 — Diagram Number

Knob clip

WH01X10106

No Longer Available
Item has been replaced by
NLA ITEM

71 — Diagram Number

SCR 8-18 B 1/2 HXW P

WH02X1205

No Longer Available
Item has been replaced by
WH2X1205

72 — Diagram Number

Washing Machine Back Panel

WH46X10146

No Longer Available
Item has been replaced by
NLA ITEM

91 — Diagram Number

Washing Machine Temperature Rotary Switch 3 Position

WH12X10498

^$17.37

Add to Cart

92 — Diagram Number

FABRIC SOFTENER SWITCH

WH12X10477

No Longer Available
Item has been replaced by
NLA ITEM

100 — Diagram Number

Washing Machine Timer

WH12X10527

^$104.48

Add to Cart

151 — Diagram Number

WASHING MACHINE SCREW 8-18 B 1HW 1/2 SN

WH02X10126

^$6.07

Add to Cart

494 — Diagram Number

HOUSING TERMINAL

WD21X10257

No Longer Available
Item has been replaced by
WD21X10356

556 — Diagram Number

HOUSING TERMINAL

WH12X0497

No Longer Available
Item has been replaced by
NLA ITEM

557 — Diagram Number

CORD POWER ASM

WH19X10068

No Longer Available
Item has been replaced by
NLA ITEM

627 — Diagram Number

WASHING MACHINE SELF-LOCKING STRAIN RELIEF

WH12X10208

No Longer Available
Item has been replaced by
NLA ITEM

712 — Diagram Number

GE BADGE

WH01X10648

No Longer Available
Item has been replaced by
NLA ITEM

769 — Diagram Number

Refrigerator Screw 10-18 HI/LO HXW 1/2

WR01X10619

^$6.07

Temporarily Out of Stock.

790 — Diagram Number

CONNECTOR PLUG CLAMP

WH01X2036

No Longer Available
Item has been replaced by
WH1X2036

803 — Diagram Number

Clothes washer inlet fill spout

WH41X10077

^$11.84

Add to Cart

805 — Diagram Number

Washing Machine Dual Valve

WH13X10048

No Longer Available
Item has been replaced by
WH13X23974

811 — Diagram Number

Washing Machine Water Pressure Switch Hose

WH41X365

^$11.00

Add to Cart

999 — Diagram Number

HARNESS WASHER

WH19X10104

^$96.28

Add to Cart
