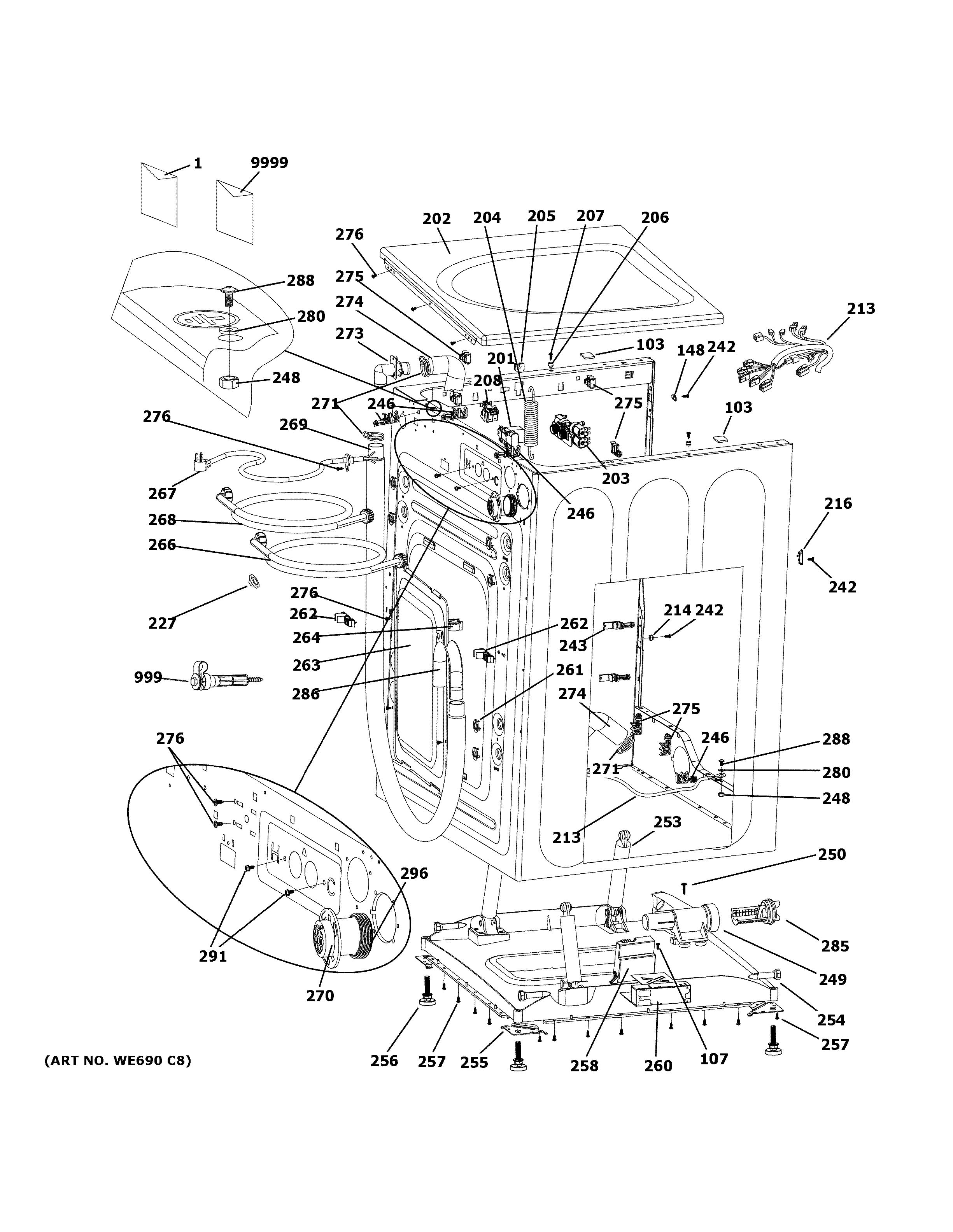

Assembly View for CABINET & TOP PANEL

103 — Diagram Number

TOP PANEL BRACKET

WH01X29351

^$22.50

Add to Cart

107 — Diagram Number

SCREW_ST4*13

WH02X10183

^$5.67

Add to Cart

148 — Diagram Number

WASHING MACHINE CONTROL PANEL PIN

WH01X20897

^$5.67

Add to Cart

201 — Diagram Number

Washing Machine EMI Filter

WH41X10301

^$64.58

Add to Cart

202 — Diagram Number

TOP PANEL SUB

WH44X10297

^$266.15

Add to Cart

203 — Diagram Number

WATER VALVE

WH13X27295

^$97.40

Add to Cart

204 — Diagram Number

SPRING - SUSPENSION

WH05X10012

^$47.73

Add to Cart

205 — Diagram Number

SPRING_HANGER

WH01X10251

No Longer Available
Item has been replaced by
NLA ITEM

206 — Diagram Number

Washing Machine Top Panel Pin

WH01X10252

^$5.40

Add to Cart

207 — Diagram Number

Screw ST 4.2x14

WH02X10187

No Longer Available
Item has been replaced by
NLA ITEM

208 — Diagram Number

WASHING MACHINE PRESSURE SWITCH

WH12X20898

^$57.73

Temporarily Out of Stock.

213 — Diagram Number

WIRE HARNESS

WH19X27943

^$146.60

Add to Cart

214 — Diagram Number

Washing Machine Front Panel Pin

WH01X10253

^$5.40

Add to Cart

216 — Diagram Number

Washing Machine Front Panel Hanger

WH16X10073

^$5.40

Add to Cart

227 — Diagram Number

INLET HOSE STRAINER

WH01X10636

^$13.86

Add to Cart

242 — Diagram Number

SCREW ST4.2*13

WH02X10182

No Longer Available
Item has been replaced by
NLA ITEM

243 — Diagram Number

Washing Machine Wire Catch

WH16X10074

^$5.00

Add to Cart

246 — Diagram Number

Washing Machine Wire Catch

WH16X10076

^$5.40

Add to Cart

248 — Diagram Number

Nut M5

WH02X10199

^$5.25

Add to Cart

249 — Diagram Number

Washing Machine Pump

WH23X25518

No Longer Available
Item has been replaced by
WH11X34740

250 — Diagram Number

SCREW_WASHER_ST4*25

WH02X10200

^$5.40

Add to Cart

253 — Diagram Number

WASHING MACHINE DAMPER

WH01X20826

^$84.81

Add to Cart

254 — Diagram Number

DAMPER_PIN

WH01X10261

No Longer Available
Item has been replaced by
NLA ITEM

255 — Diagram Number

CORNER BRACKET

WH16X10077

^$11.03

Add to Cart

256 — Diagram Number

WASHING MACHINE LEVELING LEG

WH46X20828

^$16.68

Add to Cart

257 — Diagram Number

SCREW ST4.2*13

WH02X10201

^$5.25

Add to Cart

258 — Diagram Number

INVERTER

WH12X27941

^$388.80

Add to Cart

260 — Diagram Number

SHIELD

WH01X28085

^$22.50

Add to Cart

261 — Diagram Number

COVER - SHIPPING SCREW

WH44X10206

^$5.67

Add to Cart

262 — Diagram Number

OUTSIDE_DRAIN_HOSE_CATCH

WH01X10262

^$5.67

Add to Cart

263 — Diagram Number

CABINET REAR COVER

WH46X10237

^$96.80

Add to Cart

264 — Diagram Number

INSIDE_DRAIN_HOSE_CATCH

WH01X10263

^$5.67

Add to Cart

266 — Diagram Number

MAIN_WATER_HOSE_COLD

WH41X10286

No Longer Available
Item has been replaced by
NLA ITEM

267 — Diagram Number

POWER CORD

WH19X20903

^$76.13

Add to Cart

268 — Diagram Number

MAIN_WATER_HOSE_HOT

WH41X10287

No Longer Available
Item has been replaced by
NLA ITEM

269 — Diagram Number

OUTSIDE_DRAIN_HOSE

WH41X10126

No Longer Available
Item has been replaced by
NLA ITEM

270 — Diagram Number

VENT HOSE COUPLING

WH01X10527

^$13.00

Add to Cart

271 — Diagram Number

DRAIN_HOSE_CLAMP

WH01X10265

^$6.93

Add to Cart

273 — Diagram Number

Washer Drain Hose Coupling

WH01X10266

^$7.46

Add to Cart

274 — Diagram Number

INSIDE_DRAIN_HOSE

WH41X10127

No Longer Available
Item has been replaced by
NLA ITEM

275 — Diagram Number

WIRE_CATCH_1

WH16X10078

^$8.30

Add to Cart

276 — Diagram Number

SCREW_ST4.2*11

WH02X10203

No Longer Available
Item has been replaced by
NLA ITEM

280 — Diagram Number

LOCK WASHER

WH02X10218

No Longer Available
Item has been replaced by
NLA ITEM

285 — Diagram Number

PUMP FILTER

WH23X10029

No Longer Available
Item has been replaced by
WH11X34741

286 — Diagram Number

DRAIN HOSE GUIDE U-SHAPE

WH41X10133

^$8.27

Add to Cart

288 — Diagram Number

SCREW_M5*12

WH02X10234

No Longer Available
Item has been replaced by
NLA ITEM

291 — Diagram Number

SCREW M4*8

WH02X10251

^$5.00

Add to Cart

296 — Diagram Number

SEAL VENT PIPE

WH08X10052

No Longer Available
Item has been replaced by
NLA ITEM

999 — Diagram Number

Washing Machine Shipping Bolt Kit

WH49X10077

No Longer Available
Item has been replaced by
NLA ITEM

9999 — Diagram Number

Washer/Dryer Stacking Kit for Select 27” Models

WE25X10028

^$98.00

Add to Cart

CABINET & TOP PANEL

(GFW450SSM1WW)

50 Results
