BODY PARTS

(GDT680SSH8SS)

48 Results

See Parts List

1-877-959-8688

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger  |  Change Section/Diagram

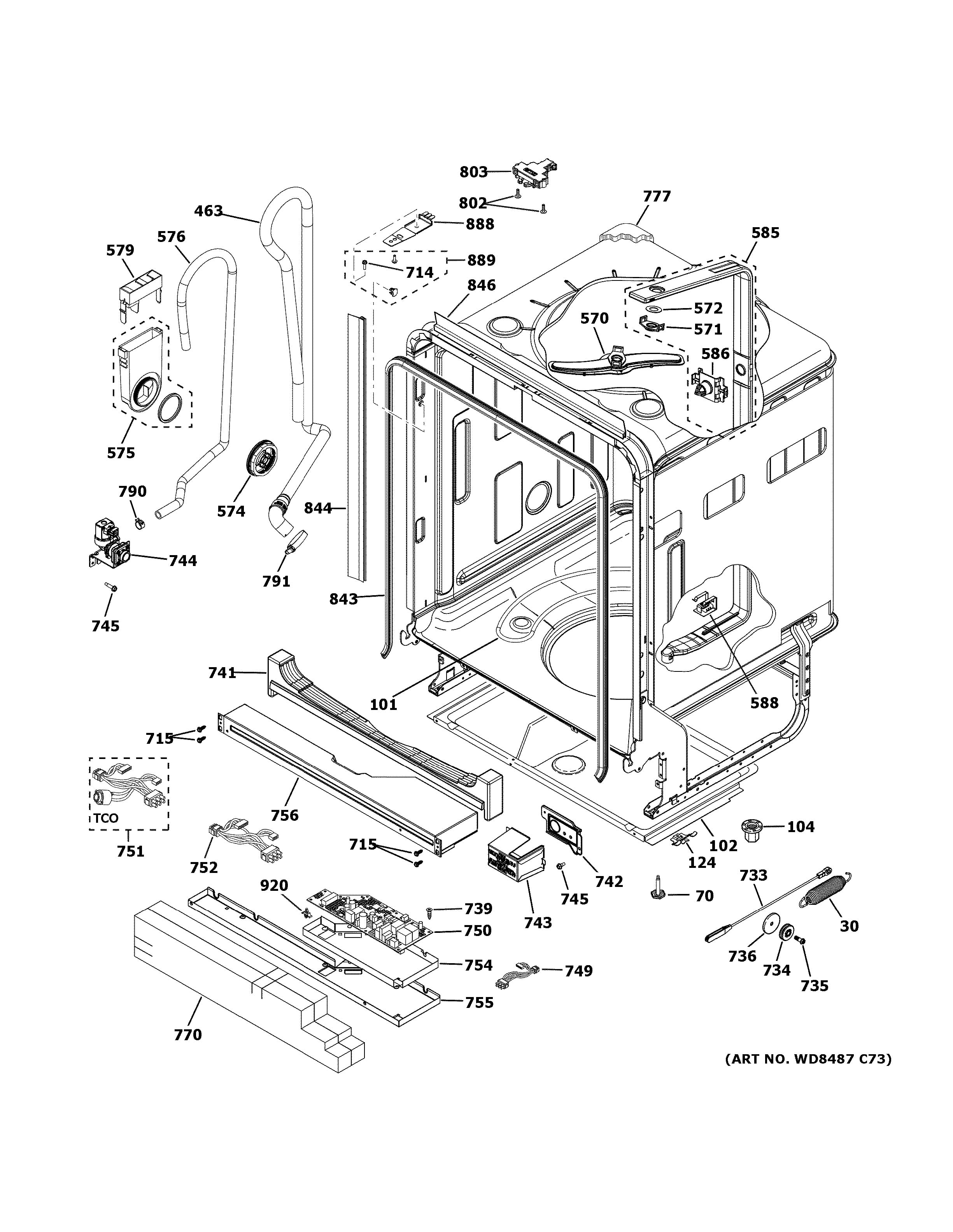

Use the diagram to find the number of the part you need.

30 — Diagram Number
Dishwasher door spring

WD03X20316

$10.23

  Add to Cart

70 — Diagram Number
DISHWASHER LEVELING SCREW

WD12X10417

No Longer Available
Item has been replaced by
WD02X31882

101 — Diagram Number
Dishwasher heating element assembly

WD05X21716

No Longer Available
Item has been replaced by
WD05X30818

102 — Diagram Number
PAN LEAK

WD18X20461

$83.03

  Add to Cart

104 — Diagram Number
DISHWASHER TOWER HEATER NUT

WD01X10070

No Longer Available
Item has been replaced by
WD02X33462

124 — Diagram Number
CLIP LEAK PAN

WD18X20464

No Longer Available
Item has been replaced by
NLA ITEM

463 — Diagram Number
Dishwasher HIGH DRAIN LOOP HOSE

WD24X10067

No Longer Available
Item has been replaced by
WD24X27778

570 — Diagram Number
UPPER SPRAY ARM ASM

WD22X22501

$17.74

  Add to Cart

571 — Diagram Number
HUB UPPER SPRAY ARM

WD12X22503

$5.61

  Add to Cart

572 — Diagram Number
GASKET UPPER SPRAY ARM

WD08X22502

$10.23

  Add to Cart

574 — Diagram Number
Dishwasher water inlet nut

WD01X20738

No Longer Available
Item has been replaced by
WD49X25081

575 — Diagram Number
Dishwasher Funnel & Gasket Assembly

WD12X21322

No Longer Available
Item has been replaced by
WD49X25081

576 — Diagram Number
Dishwasher FILL HOSE

WD24X10064

$6.07

  Add to Cart

579 — Diagram Number
CAP FILL FUNNEL

WD12X20834

$6.11

  Add to Cart

585 — Diagram Number
CONDUIT SPRAY MAIN ASSEMBLY

WD12X22783

No Longer Available
Item has been replaced by
NLA ITEM

586 — Diagram Number
Dishwasher docking port

WD12X20118

No Longer Available
Item has been replaced by
WD12X35640

Product Image
588 — Diagram Number
CLIP CONDUIT

WD01X21855

No Longer Available
Item has been replaced by
WD01X23982

714 — Diagram Number
Dishwasher Screw 8-18 B HXW .480 S

WD02X10160

$6.07

  Add to Cart

715 — Diagram Number
HEX HEAD SCREW 10-32 3/8"

WD02X10220

$6.07

  Add to Cart

733 — Diagram Number
Dishwasher DOOR CABLE

WD01X10569

$6.11

  Add to Cart

734 — Diagram Number
PULLEY HINGE

WD16X21836

$6.07

  Add to Cart

735 — Diagram Number
SCREW 10-32

WD01X21837

$6.07

  Add to Cart

736 — Diagram Number
FRICTION WASHER

WD01X20593

$13.37

  Add to Cart

Product Image
739 — Diagram Number
SCREW, GROUND

WZ05X0158

No Longer Available
Item has been replaced by
WZ5X158D

Product Image
741 — Diagram Number
SPACER TUB FRONT

WD01X21994

No Longer Available
Item has been replaced by
WD01X23558

742 — Diagram Number
Dishwasher bracket junction box

WD12X10411

No Longer Available
Item has been replaced by
WD01X32638

743 — Diagram Number
Dishwasher cover junction box

WD12X10412

$23.27

  Add to Cart

744 — Diagram Number
DISHWASHER WATER VALVE ASSEMBLY

WD15X22999

No Longer Available
Item has been replaced by
WD15X26140

745 — Diagram Number
DISHWASHER SCREW 10-32 GX IHXW 9/16 S

WD01X22514

$6.07

  Add to Cart

749 — Diagram Number
Dishwasher ac supply harness

WD21X20215

No Longer Available
Item has been replaced by
WD21X23559

750 — Diagram Number
MACHINE CONTROL GOOD

WD21X21916

No Longer Available
Item has been replaced by
WD21X24899

751 — Diagram Number
HARNESS ASM AC

WD21X22616

No Longer Available
Item has been replaced by
NLA ITEM

752 — Diagram Number
Dishwasher harness assembly DC

WD21X20124

No Longer Available
Item has been replaced by
NLA ITEM

754 — Diagram Number
DISHWASHER ELECTRIC SHIELD

WD01X21974

$16.41

  Add to Cart

755 — Diagram Number
Dishwasher CONTROL BOX BOTTOM

WD30X21714

$10.34

  Add to Cart

756 — Diagram Number
Dishwasher control box top

WD27X10390

$19.44

  Add to Cart

Product Image
770 — Diagram Number
BAG INSULATION ASM

WD01X21375

No Longer Available
Item has been replaced by
WD01X21775

777 — Diagram Number
DISHWASHER TUB INSULATION

WD01X21314

No Longer Available
Item has been replaced by
WD30X35299

790 — Diagram Number
Dishwasher Hose Clamp

WD01X22786

$6.07

  Add to Cart

791 — Diagram Number
Dishwasher HOSE CLAMP

WD01X10611

No Longer Available
Item has been replaced by
WD01X24246

802 — Diagram Number
Screw CR 8-18 AB TSQ 5/8 Stainless Steel

WR01X10380

$6.07

  Add to Cart

803 — Diagram Number
Dishwasher LATCH AND SWITCH ASSEMBLY

WD21X10490

$32.33

  Add to Cart

843 — Diagram Number
GASKET TUB SS

WD08X22095

No Longer Available
Item has been replaced by
WD08X23477

844 — Diagram Number
Dishwasher TUB TRIM (BLACK)

WD08X10095

No Longer Available
Item has been replaced by
WD01X31618

846 — Diagram Number
DISHWASHER TUB TRIM

WD08X20719

No Longer Available
Item has been replaced by
WD01X31618

888 — Diagram Number
Dishwasher COUNTERTOP BRACKET

WD01X21740

$22.52

  Add to Cart

889 — Diagram Number
Dishwasher COUNTERTOP SCREW AND BUTTONPLUG ASSEMBLY

WD35X10383

$6.07

  Add to Cart

920 — Diagram Number
DISHWASHER CONTROL BOARD CLIP

WD01X21975

$6.07

  Add to Cart
