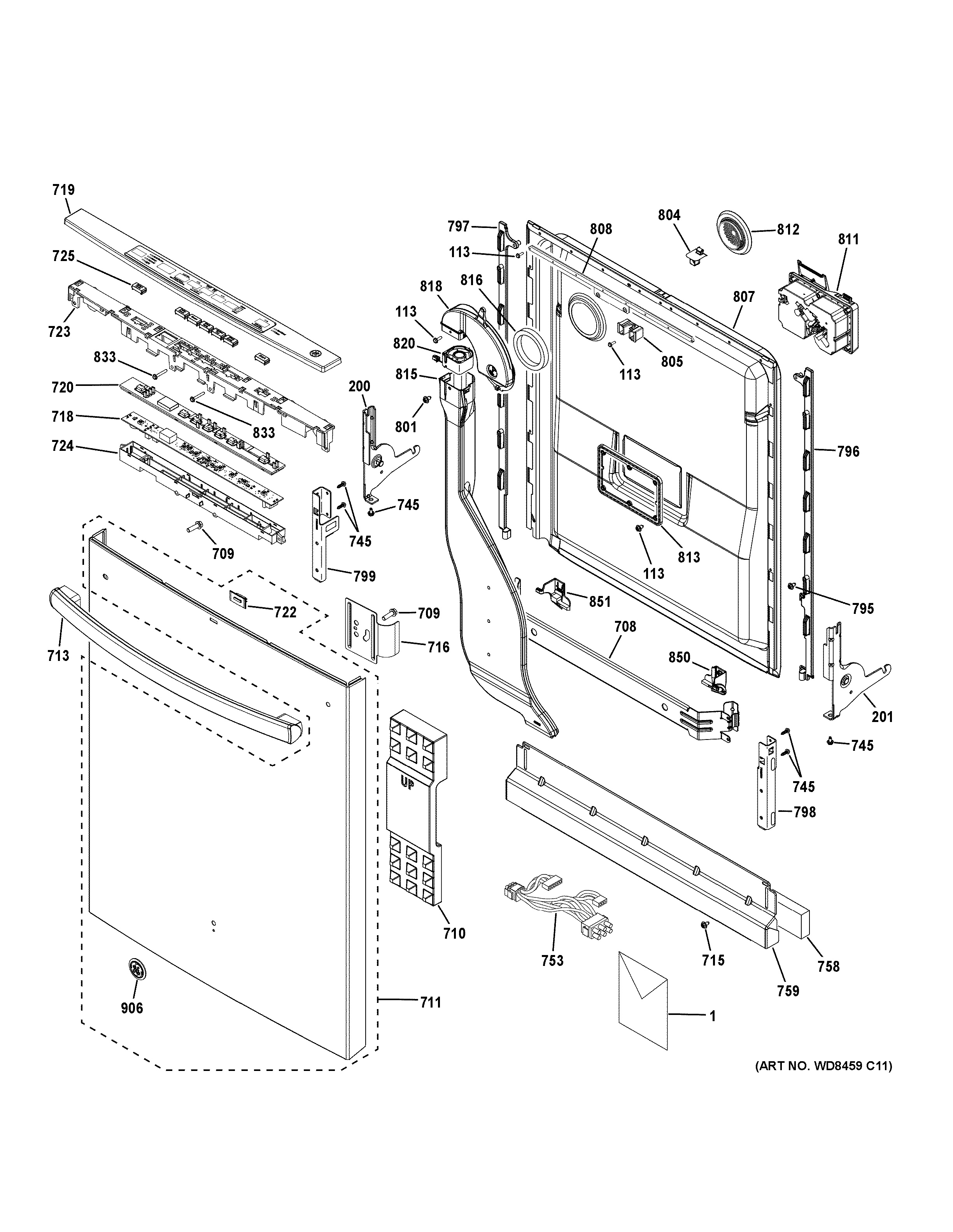

Assembly View for ESCUTCHEON & DOOR ASSEMBLY

113 — Diagram Number

Dishwasher HEX HEAD SCREW 8-16 1/2 STAINLESS STEEL

WD02X10067

^$6.07

Add to Cart

200 — Diagram Number

DISHWASHER ARM HINGE ASSEMBLY - RH

WD14X20128

^$15.84

Add to Cart

201 — Diagram Number

DISHWASHER ARM HINGE - LH

WD14X20129

^$15.84

Add to Cart

708 — Diagram Number

Dishwasher INNER DOOR BRACE

WD30X10045

^$35.35

Add to Cart

709 — Diagram Number

SCREW 1/4-28 FL IHXW 15/16

WD01X20934

^$6.07

Add to Cart

710 — Diagram Number

Dishwasher DOOR FOAM BLOCK

WD01X10585

^$7.41

Add to Cart

711 — Diagram Number

FGKIT DOOR ASM OUTER

WD34X22800

No Longer Available
Item has been replaced by
WD34X20469

713 — Diagram Number

DISHWASHER HANDLE

WD09X21321

^$79.62

Add to Cart

715 — Diagram Number

HEX HEAD SCREW 10-32 3/8"

WD02X10220

^$6.07

Add to Cart

716 — Diagram Number

Dishwasher bracket handle

WD01X20135

^$6.07

Add to Cart

718 — Diagram Number

FGINTERFACE USER TOP

WD21X22287

No Longer Available
Item has been replaced by
WD21X22177

719 — Diagram Number

Dishwasher Bevel console cover assembly

WD34X20210

^$375.60

Add to Cart

720 — Diagram Number

Dishwasher silicone light pipe

WD12X20185

No Longer Available
Item has been replaced by
NLA ITEM

722 — Diagram Number

Dishwasher Lens and Adhesive Assembly

WD09X20066

^$6.53

Add to Cart

723 — Diagram Number

Dishwasher console top control

WD12X20184

^$7.53

Add to Cart

724 — Diagram Number

Dishwasher housing bottom

WD12X10470

^$34.11

Add to Cart

725 — Diagram Number

DISHWASHER BUTTON & GRAPHICS

WD09X22799

No Longer Available
Item has been replaced by
NLA ITEM

745 — Diagram Number

DISHWASHER SCREW 10-32 GX IHXW 9/16 S

WD01X22514

^$6.07

Add to Cart

753 — Diagram Number

Dishwasher door harness assembly

WD21X20149

^$32.30

Add to Cart

758 — Diagram Number

DISHWASHER TOE KICK INSULATION

WD27X21334

^$5.46

Add to Cart

759 — Diagram Number

TOE KICK PAINTED ASM BK

WD27X10392

No Longer Available
Item has been replaced by
WD27X34579

795 — Diagram Number

SCREW T15 8-16 PLASTITE

WD02X22628

^$6.07

Add to Cart

796 — Diagram Number

Dishwasher attach strip

WD01X10633

No Longer Available
Item has been replaced by
WD01X34878

797 — Diagram Number

DISHWASHER ATTACH STRIP - LH

WD01X10634

No Longer Available
Item has been replaced by
WD01X34879

798 — Diagram Number

Dishwasher bracket support hinge assembly

WD01X22512

^$5.46

Add to Cart

799 — Diagram Number

Dishwasher bracket support hinge assembly

WD01X22513

^$5.46

Add to Cart

801 — Diagram Number

SCR 6-20 GXB IHXW 3/8 NI

WB02T10324

^$6.07

Add to Cart

804 — Diagram Number

Dishwasher LATCH STRIKE

WD13X10071

^$6.07

Add to Cart

805 — Diagram Number

Dishwasher STRIKE ADAPTER

WD13X10068

No Longer Available
Item has been replaced by
WD13X22837

807 — Diagram Number

Dishwasher door inner (stainless steel)

WD31X20237

No Longer Available
Item has been replaced by
WD31X29639

808 — Diagram Number

Dishwasher ATTACHMENT STRIP (TOP)

WD01X10639

^$16.41

Add to Cart

811 — Diagram Number

DISHWASHER DETERGENT DISPENSER SENSOR

WD12X22577

No Longer Available
Item has been replaced by
WD12X32799

812 — Diagram Number

DISHWASHER VENT COVER

WD24X20586

^$6.19

Add to Cart

813 — Diagram Number

Dishwasher DETERGENT MOUNTING PLATE

WD12X10462

^$6.09

Add to Cart

815 — Diagram Number

Dishwasher conduit vent assembly

WD12X20218

^$79.17

Add to Cart

816 — Diagram Number

DISHWASHER VENT DOOR SEAL

WD08X10092

^$19.10

Add to Cart

818 — Diagram Number

TRANSITION PIECE ASM

WD12X21356

No Longer Available
Item has been replaced by
WD12X23336

820 — Diagram Number

DISHWASHER VENT FAN

WD24X20256

^$46.22

Add to Cart

833 — Diagram Number

Dishwasher screw 10-16 PL PNT 2.25 S

WD02X20140

^$6.07

Add to Cart

850 — Diagram Number

Dishwasher Door Trim - Right

WD12X22540

^$6.07

Add to Cart

851 — Diagram Number

Dishwasher Door Trim - Left

WD12X22541

^$6.07

Add to Cart

906 — Diagram Number

GE BADGE

WR04X10181

^$7.74

Add to Cart

ESCUTCHEON & DOOR ASSEMBLY

(GDT680SSH8SS)

42 Results
