BODY PARTS (1)

(GDP665SYN2FS)

47 Results

See Parts List

1-877-959-8688

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger  |  Change Section/Diagram

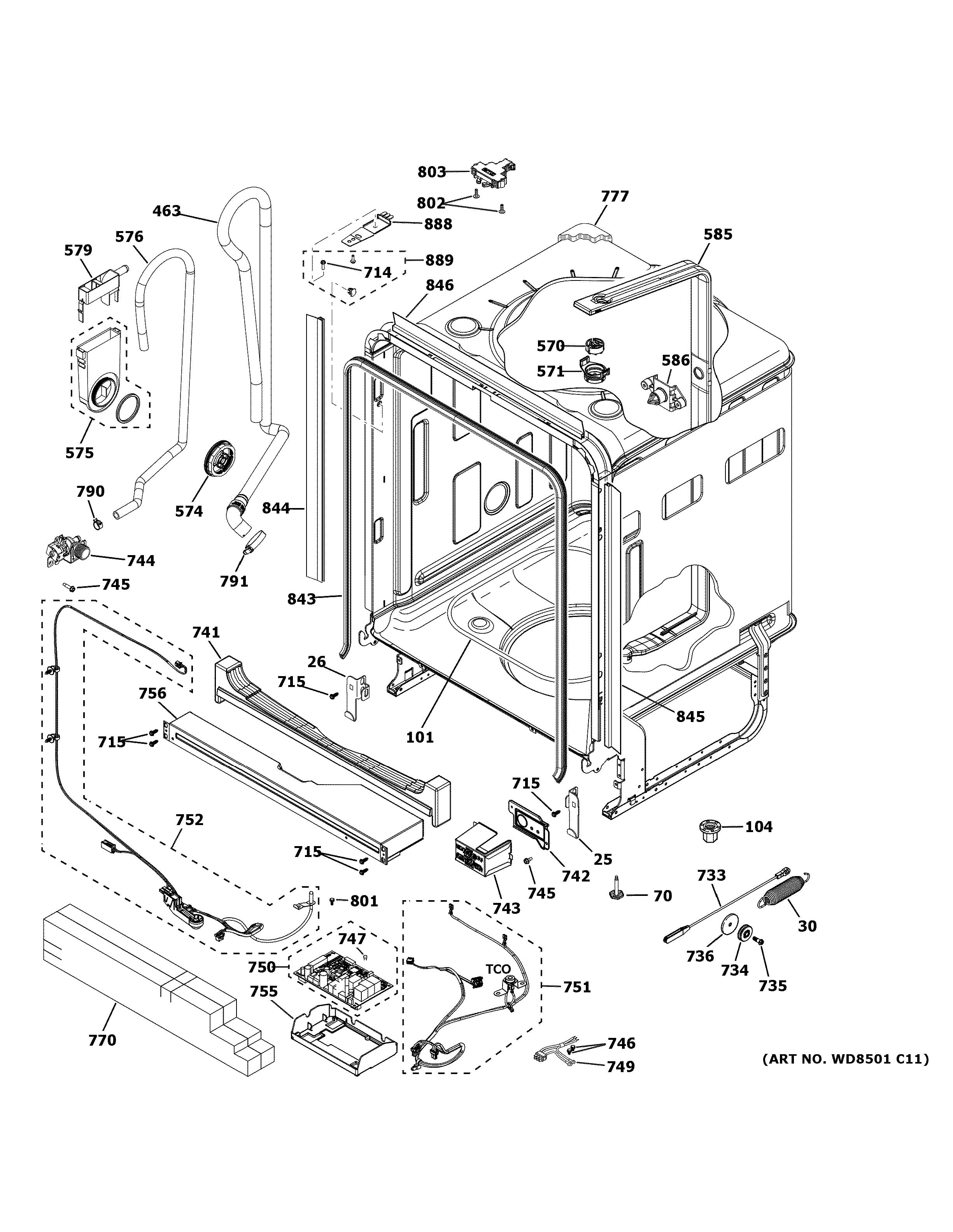

Use the diagram to find the number of the part you need.

25 — Diagram Number
Dishwasher Bracket Cable - Right

WD01X23776

$6.07

  Add to Cart

26 — Diagram Number
Dishwasher Bracket Cable - Left

WD01X23777

$6.07

  Add to Cart

30 — Diagram Number
Dishwasher door spring

WD03X20445

$7.42

Temporarily Out of Stock.

30 — Diagram Number
Dishwasher DOOR SPRING

WD03X20446

$10.12

  Add to Cart

70 — Diagram Number
Dishwasher Leveling Screw

WD12X23057

No Longer Available
Item has been replaced by
WD02X31882

Product Image
101 — Diagram Number
FGELEMENT HEATING ASM

WD05X25583

No Longer Available
Item has been replaced by
WD05X35098

104 — Diagram Number
DISHWASHER TOWER HEATER NUT

WD01X10070

No Longer Available
Item has been replaced by
WD02X33462

463 — Diagram Number
DRAIN HOSE LOOP HIGH

WD24X25280

No Longer Available
Item has been replaced by
WD24X29438

570 — Diagram Number
Dishwasher impeller

WD22X20689

$7.41

  Add to Cart

571 — Diagram Number
Dishwasher hub

WD22X20688

$8.25

  Add to Cart

574 — Diagram Number
WATER INLET NUT

WD01X25078

No Longer Available
Item has been replaced by
WD49X25081

575 — Diagram Number
FUNNEL AND GASKET ASSEMBLY

WD12X25298

No Longer Available
Item has been replaced by
WD49X25081

576 — Diagram Number
Dishwasher FILL HOSE

WD24X10064

$6.07

  Add to Cart

579 — Diagram Number
FILL FUNNEL CAP

WD12X25080

$6.07

  Add to Cart

585 — Diagram Number
MAIN CONDUIT

WD12X25680

No Longer Available
Item has been replaced by
WD12X35639

586 — Diagram Number
Dishwasher docking port

WD12X20118

No Longer Available
Item has been replaced by
WD12X35640

715 — Diagram Number
HEX HEAD SCREW 10-32 3/8"

WD02X10220

$6.07

  Add to Cart

733 — Diagram Number
DISHWASHER PULLEY CABLE

WD01X22820

No Longer Available
Item has been replaced by
WD49X30778

734 — Diagram Number
PULLEY HINGE

WD16X21836

$6.07

  Add to Cart

735 — Diagram Number
SCREW 10-32

WD01X21837

$6.07

  Add to Cart

736 — Diagram Number
FRICTION WASHER

WD01X20593

$13.37

  Add to Cart

741 — Diagram Number
DISHWASHER TUB FRONT SPACER

WD01X23558

$6.07

  Add to Cart

742 — Diagram Number
JUNCTION BOX BRACKET

WD12X25060

No Longer Available
Item has been replaced by
WD01X32638

743 — Diagram Number
Dishwasher cover junction box

WD12X10412

$23.27

  Add to Cart

744 — Diagram Number
WATER VALVE ASSEMBLY

WD15X26078

$23.26

  Add to Cart

745 — Diagram Number
DISHWASHER SCREW 10-32 GX IHXW 9/16 S

WD01X22514

$6.07

  Add to Cart

Product Image
746 — Diagram Number
SCREW 8-32 D HXW 3/8 S, 13.4

WD02X24216

No Longer Available
Item has been replaced by
WZ5X158D

747 — Diagram Number
CONTROL BOARD FUSE 4.1 AMP

WD21X25696

$6.07

Temporarily Out of Stock.

749 — Diagram Number
Dishwasher Jumper Harness

WD21X23559

$38.80

  Add to Cart

Product Image
750 — Diagram Number
CONFIGURED MACHINE CONTROL BOARD

WD21X25699

No Longer Available
Item has been replaced by
WD21X27998

751 — Diagram Number
HARNESS ASSEMBLY AC

WD21X25322

No Longer Available
Item has been replaced by
WD21X27402

Product Image
752 — Diagram Number
DC HARNESS ASM

WD21X26959

No Longer Available
Item has been replaced by
WD21X26860

755 — Diagram Number
CONTROL BOX BOTTOM

WD30X24239

$9.24

  Add to Cart

756 — Diagram Number
DISHWASHER CONTROL BOX TOP

WD27X23178

No Longer Available
Item has been replaced by
WD27X32298

770 — Diagram Number
Dishwasher BAGGED INSULATION

WD01X10621

No Longer Available
Item has been replaced by
WD30X28098

777 — Diagram Number
Dishwasher Tub Insulation Blanket

WD01X10419

No Longer Available
Item has been replaced by
WD30X28658

790 — Diagram Number
Dishwasher Hose Clamp

WD01X22786

$6.07

  Add to Cart

791 — Diagram Number
CLAMP

WD01X24246

$7.59

  Add to Cart

801 — Diagram Number
SCR 6-20 GXB IHXW 3/8 NI

WB02T10324

$6.07

  Add to Cart

802 — Diagram Number
Screw CR 8-18 AB TSQ 5/8 Stainless Steel

WR01X10380

$6.07

  Add to Cart

803 — Diagram Number
Dishwasher LATCH AND SWITCH ASSEMBLY

WD21X10490

$32.33

  Add to Cart

843 — Diagram Number
GASKET TUB SS

WD08X22095

No Longer Available
Item has been replaced by
WD08X23477

844 — Diagram Number
Dishwasher TUB TRIM

WD08X20201

No Longer Available
Item has been replaced by
WD01X31858

845 — Diagram Number
Dishwasher TUB TRIM

WD08X20199

No Longer Available
Item has been replaced by
WD01X31858

846 — Diagram Number
Dishwasher TUB TRIM

WD08X20200

No Longer Available
Item has been replaced by
WD01X31858

888 — Diagram Number
Dishwasher COUNTERTOP BRACKET

WD01X21740

$22.52

  Add to Cart

889 — Diagram Number
Dishwasher COUNTERTOP SCREW AND BUTTONPLUG ASSEMBLY

WD35X10383

$6.07

  Add to Cart
