BODY PARTS

(GDF620HMJ5ES)

49 Results

See Parts List

1-877-959-8688

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger  |  Change Section/Diagram

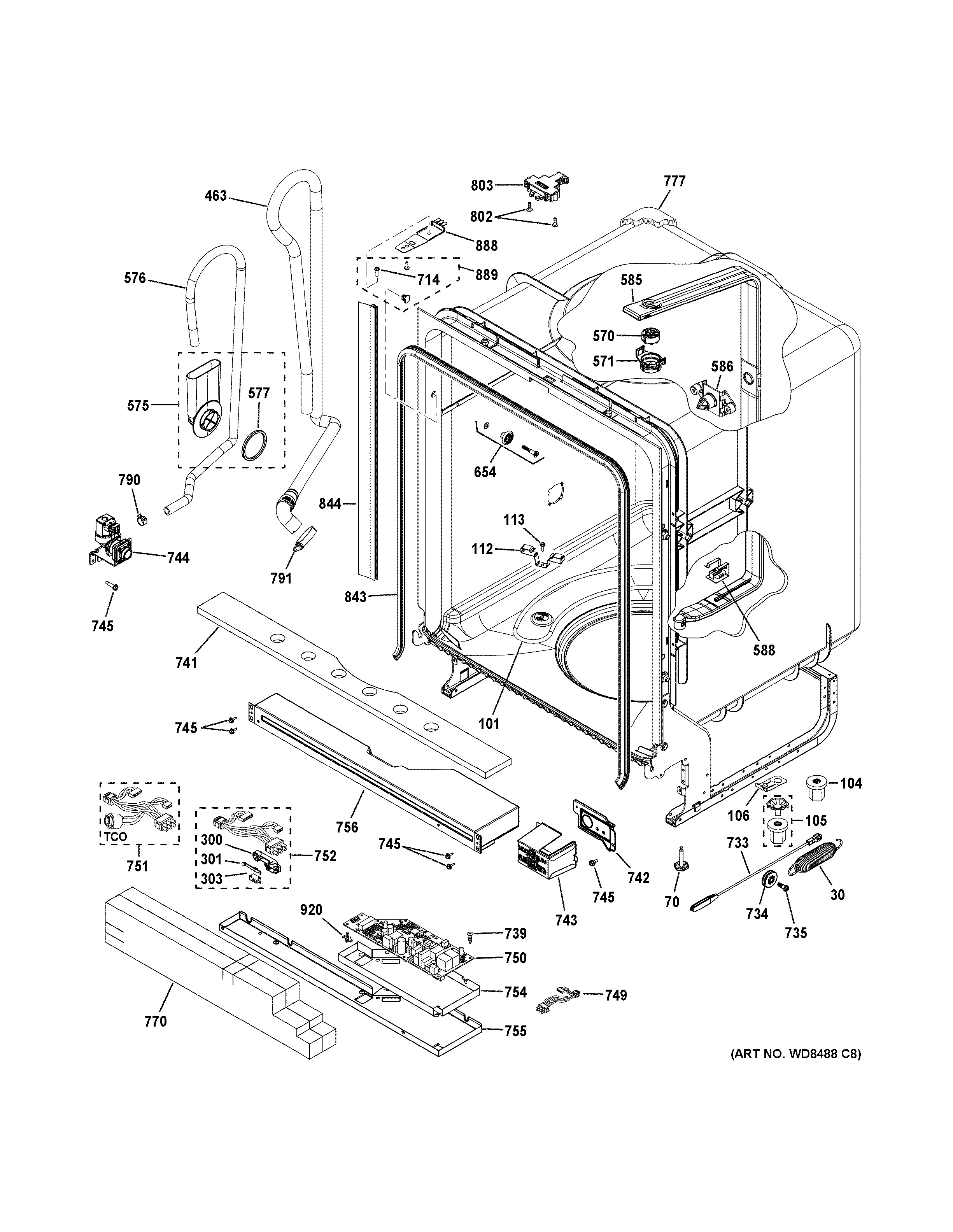

Use the diagram to find the number of the part you need.

30 — Diagram Number
Dishwasher door spring

WD03X20316

$10.23

  Add to Cart

30 — Diagram Number
Dishwasher DOOR SPRING

WD03X20446

$10.12

  Add to Cart

70 — Diagram Number
Dishwasher Leveling Screw

WD12X23057

No Longer Available
Item has been replaced by
WD02X31882

101 — Diagram Number
DISHWASHER HEATING ELEMENT ASSEMBLY

WD05X23763

No Longer Available
Item has been replaced by
WD05X30818

104 — Diagram Number
DISHWASHER TOWER HEATER NUT

WD01X10070

No Longer Available
Item has been replaced by
WD02X33462

105 — Diagram Number
Dishwasher Heater Washer

WD01X24507

No Longer Available
Item has been replaced by
WD02X28518

106 — Diagram Number
Dishwasher Grounding Plate

WD02X22780

No Longer Available
Item has been replaced by
WD02X26579

112 — Diagram Number
DISHWASHER HEATER SUPPORT

WD01X22507

$6.07

  Add to Cart

113 — Diagram Number
Dishwasher HEX HEAD SCREW 8-16 1/2 STAINLESS STEEL

WD02X10067

$6.07

  Add to Cart

300 — Diagram Number
DISHWASHER FLOOD SWITCH HOUSING

WD01X23496

No Longer Available
Item has been replaced by
NLA ITEM

301 — Diagram Number
DISHWASHER FLOOD SWITCH LEVER

WD16X23497

No Longer Available
Item has been replaced by
NLA ITEM

303 — Diagram Number
DISHWASHER FLOOD SWITCH

WD21X23498

$6.19

  Add to Cart

463 — Diagram Number
Dishwasher HIGH DRAIN LOOP HOSE

WD24X23016

No Longer Available
Item has been replaced by
WD24X27778

570 — Diagram Number
Dishwasher impeller

WD22X20689

$7.41

  Add to Cart

571 — Diagram Number
Dishwasher hub

WD22X20688

$8.25

  Add to Cart

Product Image
575 — Diagram Number
FGFUNNEL SERVICE KIT

WD12X23816

No Longer Available
Item has been replaced by
WD49X23818

576 — Diagram Number
Dishwasher FILL HOSE

WD24X10056

No Longer Available
Item has been replaced by
WD24X27659

577 — Diagram Number
O-RING

WD08X23817

$5.67

  Add to Cart

585 — Diagram Number
DISHWASHER MAIN CONDUIT

WD12X21681

$33.70

  Add to Cart

586 — Diagram Number
Dishwasher Mid Conduit Docking Port

WD12X22812

No Longer Available
Item has been replaced by
WD12X32039

588 — Diagram Number
DISHWASHER CONDUIT CLIP

WD01X23982

$6.07

  Add to Cart

654 — Diagram Number
Dishwasher TUB ROLLER AND STUD ASM

WD12X10433

$6.07

  Add to Cart

733 — Diagram Number
Dishwasher DOOR CABLE

WD01X10569

$6.11

  Add to Cart

734 — Diagram Number
PULLEY HINGE

WD16X21836

$6.07

  Add to Cart

735 — Diagram Number
SCREW 10-32

WD01X21837

$6.07

  Add to Cart

Product Image
739 — Diagram Number
SCREW, GROUND

WZ05X0158

No Longer Available
Item has been replaced by
WZ5X158D

741 — Diagram Number
Dishwasher DOOR FOAM BLOCK

WD01X22620

$8.09

  Add to Cart

742 — Diagram Number
Dishwasher bracket junction box

WD12X10411

No Longer Available
Item has been replaced by
WD01X32638

743 — Diagram Number
Dishwasher cover junction box

WD12X10412

$23.27

  Add to Cart

744 — Diagram Number
DISHWASHER WATER VALVE ASSEMBLY

WD15X22999

No Longer Available
Item has been replaced by
WD15X26140

745 — Diagram Number
DISHWASHER SCREW 10-32 GX IHXW 9/16 S

WD01X22514

$6.07

  Add to Cart

749 — Diagram Number
Dishwasher Jumper Harness

WD21X23559

$38.80

  Add to Cart

750 — Diagram Number
Dishwasher Configured Machine Control

WD21X23712

No Longer Available
Item has been replaced by
WD21X24901

751 — Diagram Number
DISHWASHER AC HARNESS ASSEMBLY

WD21X21690

$37.58

  Add to Cart

752 — Diagram Number
HARNESS ASM DC

WD21X23856

$26.57

  Add to Cart

754 — Diagram Number
DISHWASHER ELECTRIC SHIELD

WD01X21974

$16.41

  Add to Cart

755 — Diagram Number
Dishwasher CONTROL BOX BOTTOM

WD30X21714

$10.34

  Add to Cart

756 — Diagram Number
DISHWASHER CONTROL BOX TOP

WD27X23178

No Longer Available
Item has been replaced by
WD27X32298

770 — Diagram Number
Dishwasher BAGGED INSULATION

WD01X10621

No Longer Available
Item has been replaced by
WD30X28098

777 — Diagram Number
DISHWASHER TUB INSULATION

WD01X21314

No Longer Available
Item has been replaced by
WD30X35299

790 — Diagram Number
Dishwasher Hose Clamp

WD01X22786

$6.07

  Add to Cart

791 — Diagram Number
Dishwasher HOSE CLAMP

WD01X10611

No Longer Available
Item has been replaced by
WD01X24246

802 — Diagram Number
Screw CR 8-18 AB TSQ 5/8 Stainless Steel

WR01X10380

$6.07

  Add to Cart

803 — Diagram Number
Dishwasher LATCH AND SWITCH ASSEMBLY

WD21X10490

$32.33

  Add to Cart

843 — Diagram Number
DISHWASHER PLASTIC TUB GASKET

WD08X22094

No Longer Available
Item has been replaced by
WD08X23476

844 — Diagram Number
Dishwasher TUB TRIM (BLACK)

WD08X10094

No Longer Available
Item has been replaced by
WD01X29479

888 — Diagram Number
Dishwasher COUNTERTOP BRACKET

WD01X21740

$22.52

  Add to Cart

889 — Diagram Number
Dishwasher COUNTERTOP SCREW AND BUTTONPLUG ASSEMBLY

WD35X10383

$6.07

  Add to Cart

920 — Diagram Number
DISHWASHER CONTROL BOARD CLIP

WD01X21975

$6.07

  Add to Cart
