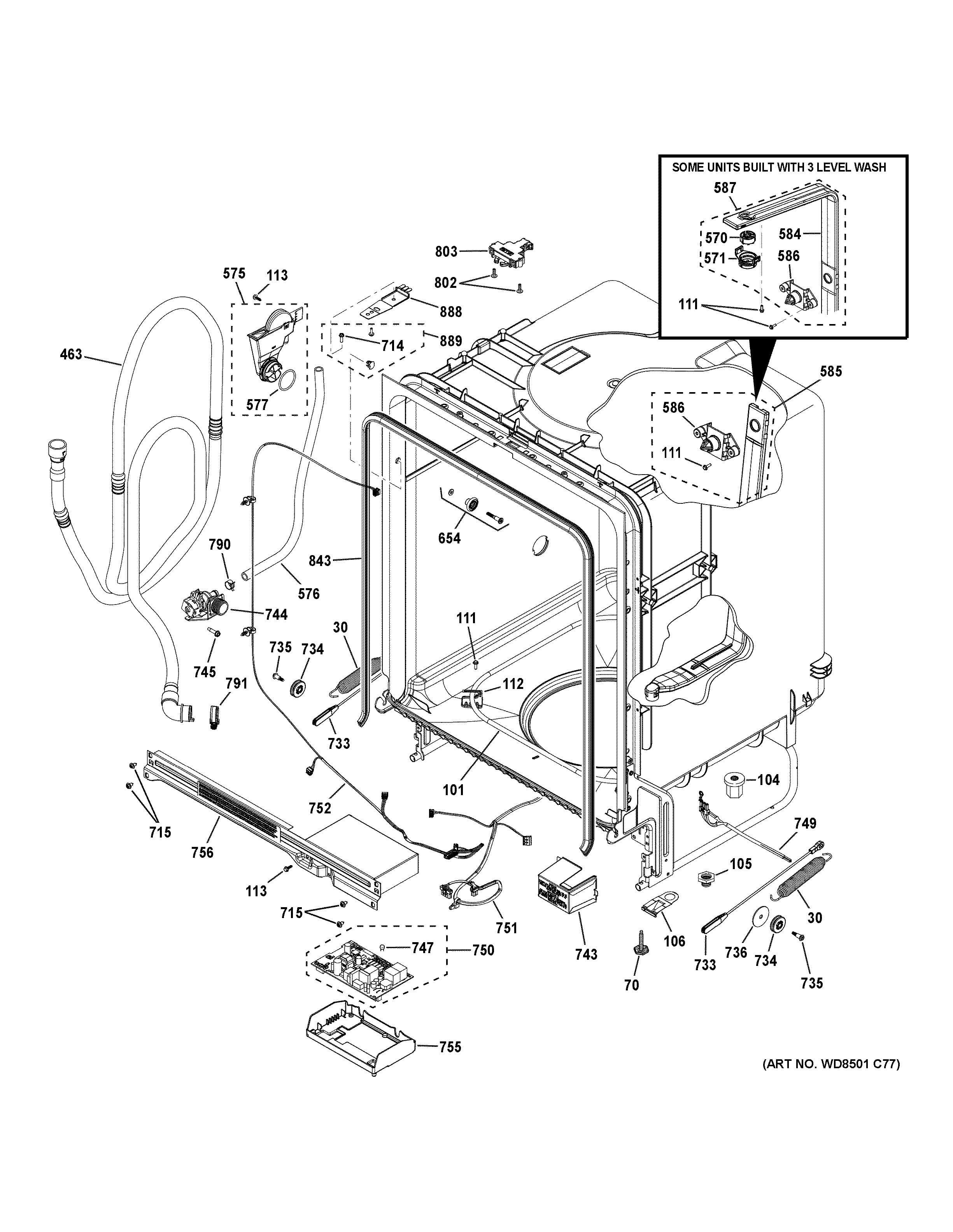

Assembly View for BODY PARTS

30 — Diagram Number

DOOR SPRING

WD02X29758

^$6.07

Add to Cart

70 — Diagram Number

Dishwasher Leveling Screw

WD12X23057

No Longer Available
Item has been replaced by
WD02X31882

101 — Diagram Number

HEATING ELEMENT

WD05X28460

No Longer Available
Item has been replaced by
WD05X35098

104 — Diagram Number

DISHWASHER TOWER HEATER NUT

WD01X10070

No Longer Available
Item has been replaced by
WD02X33462

105 — Diagram Number

HEATER NUT

WD02X28518

^$6.09

Add to Cart

106 — Diagram Number

GROUNDING PLATE

WD01X27718

^$6.82

Add to Cart

111 — Diagram Number

Dishwasher HEX HEAD SCREW 8-16 1/2 STAINLESS STEEL

WD02X10067

^$6.07

Add to Cart

112 — Diagram Number

CLIP HEATER TWIST LOCK

WD01X24381

^$6.07

Add to Cart

113 — Diagram Number

SCREW 8-18 PL HXW 1/2

WD01X27719

^$6.07

Add to Cart

463 — Diagram Number

EXTENSION DRAIN HOSE

WD24X27723

No Longer Available
Item has been replaced by
WD24X34763

570 — Diagram Number

Dishwasher impeller

WD22X20689

^$7.41

Add to Cart

571 — Diagram Number

Dishwasher hub

WD22X20688

^$8.25

Add to Cart

575 — Diagram Number

FILL FUNNEL

WD12X28478

^$6.07

Add to Cart

576 — Diagram Number

FILL FUNNEL HOSE

WD24X27726

^$6.07

Add to Cart

577 — Diagram Number

O-RING

WD08X23817

^$5.67

Add to Cart

584 — Diagram Number

MAIN CONDUIT

WD12X25680

No Longer Available
Item has been replaced by
WD12X35639

585 — Diagram Number

MAIN CONDUIT ASSEMBLY

WD12X26298

No Longer Available
Item has been replaced by
WD12X32040

586 — Diagram Number

Dishwasher Mid Conduit Docking Port

WD12X22812

No Longer Available
Item has been replaced by
WD12X32039

587 — Diagram Number

MAIN CONDUIT ASSEMBLY

WD12X26438

No Longer Available
Item has been replaced by
WD12X32041

654 — Diagram Number

Dishwasher TUB ROLLER AND STUD ASM

WD12X10433

^$6.07

Add to Cart

714 — Diagram Number

SCREW 10-32 GXTT FLP 595 S

WR01X10065

^$6.07

Add to Cart

715 — Diagram Number

HEX HEAD SCREW 10-32 3/8"

WD02X10220

^$6.07

Add to Cart

733 — Diagram Number

PULLEY CABLE

WD01X29698

No Longer Available
Item has been replaced by
WD01X30378

734 — Diagram Number

PULLEY HINGE

WD16X21836

^$6.07

Add to Cart

735 — Diagram Number

SCREW 10-32

WD01X21837

^$6.07

Add to Cart

736 — Diagram Number

FRICTION WASHER

WD01X20593

^$13.37

Add to Cart

743 — Diagram Number

Dishwasher cover junction box

WD12X10412

^$23.27

Add to Cart

744 — Diagram Number

WATER VALVE ASSEMBLY

WD15X27703

^$19.49

Add to Cart

745 — Diagram Number

DISHWASHER SCREW 10-32 GX IHXW 9/16 S

WD01X22514

^$6.07

Add to Cart

747 — Diagram Number

CONTROL BOARD FUSE 4.1 AMP

WD21X25696

^$6.07

Add to Cart

749 — Diagram Number

JUMPER HARNESS

WD21X26318

^$9.07

Add to Cart

750 — Diagram Number

CONFIGURED MACHINE CONTROL BOARD

WD27X27023

No Longer Available
Item has been replaced by
WD21X32938

751 — Diagram Number

AC HARNESS ASSEMBLY

WD21X27706

No Longer Available
Item has been replaced by
WD21X32679

752 — Diagram Number

DC HARNESS

WD21X28978

^$19.07

Add to Cart

755 — Diagram Number

CONTROL BOX BOTTOM

WD30X29079

^$12.70

Add to Cart

756 — Diagram Number

CONTROL BOX TOP

WD30X28638

^$56.53

Add to Cart

790 — Diagram Number

Dishwasher Hose Clamp

WD01X22786

^$6.07

Add to Cart

791 — Diagram Number

CLAMP

WD01X24246

^$7.59

Add to Cart

802 — Diagram Number

SCREW 8-18 AB PNP 3/4 SS

WD02X27754

^$6.08

Add to Cart

803 — Diagram Number

DOOR LATCH

WD01X29878

^$18.28

Add to Cart

843 — Diagram Number

DISHWASHER PLASTIC TUB GASKET

WD08X22094

No Longer Available
Item has been replaced by
WD08X23476

888 — Diagram Number

Countertop Bracket

WD01X27759

^$21.27

Add to Cart

889 — Diagram Number

COUNTERTOP BRACKET SCREWS ASSEMBLY

WD02X27760

No Longer Available
Item has been replaced by
WD35X35958

BODY PARTS

(GDF510PSR3SS)

43 Results
