ESCUTCHEON & DOOR ASSEMBLY

(GDF510PMD0SA)

29 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

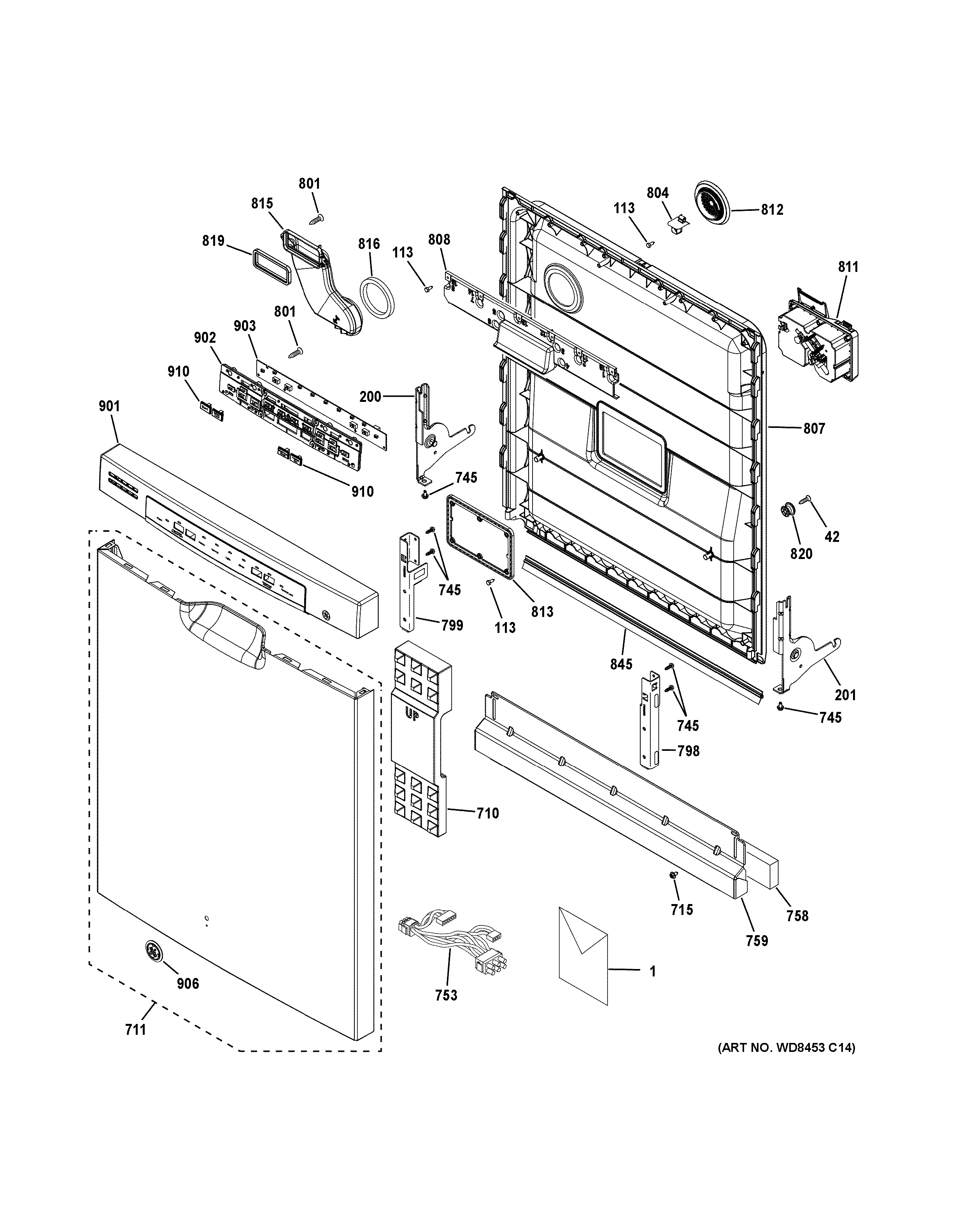

Use the diagram to find the number of the part you need.

42 — Diagram Number

Screw #8 - 3/4" long - Stainless steel - hex head - pack of 1 dozen

WD02X10110

No Longer Available
Item has been replaced by
WD02X22736

200 — Diagram Number

ARM HINGE ASM RH

WD14X10050

No Longer Available
Item has been replaced by
NLA ITEM

201 — Diagram Number

ARM HINGE ASM LH

WD14X10051

No Longer Available
Item has been replaced by
WD35X20486

710 — Diagram Number

Dishwasher DOOR FOAM BLOCK

WD01X10578

^$7.41

Add to Cart

711 — Diagram Number

DOOR OUTER SA

WD34X11838

No Longer Available
Item has been replaced by
WD34X11853

715 — Diagram Number

HEX HEAD SCREW 10-32 3/8"

WD02X10220

^$6.07

Add to Cart

745 — Diagram Number

DISHWASHER SCREW 10-32 GX IHXW 9/16 S

WD01X22514

^$6.07

Add to Cart

753 — Diagram Number

HARNESS ASM DOOR

WD21X20715

^$58.55

Add to Cart

758 — Diagram Number

Dishwasher insulation toe kick

WD01X10581

No Longer Available
Item has been replaced by
WD27X21334

759 — Diagram Number

TOE KICK PAINTED ASM BK

WD27X10392

No Longer Available
Item has been replaced by
WD27X34579

798 — Diagram Number

Dishwasher bracket support hinge assembly

WD01X20126

No Longer Available
Item has been replaced by
WD01X22513

799 — Diagram Number

Dishwasher bracket support hinge assembly

WD01X20127

No Longer Available
Item has been replaced by
WD01X22512

801 — Diagram Number

SCR 6-20 GXB IHXW 3/8 NI

WB02T10324

^$6.07

Add to Cart

804 — Diagram Number

Dishwasher LATCH STRIKE

WD13X10071

^$6.07

Add to Cart

807 — Diagram Number

DOOR INNER PLASTIC

WD31X10139

No Longer Available
Item has been replaced by
WD27X29398

808 — Diagram Number

Dishwasher pocket handle

WD12X10422

^$32.13

Add to Cart

811 — Diagram Number

MODULE DETERGENT

WD12X21054

No Longer Available
Item has been replaced by
WD12X32798

812 — Diagram Number

Dishwasher VENT COVER (GREY)

WD12X10471

^$13.51

Add to Cart

813 — Diagram Number

Dishwasher DETERGENT MOUNTING PLATE

WD12X10420

^$5.90

Add to Cart

815 — Diagram Number

DIVERTER AIR ASM

WD12X22517

No Longer Available
Item has been replaced by
WD35X20855

816 — Diagram Number

DISHWASHER VENT DOOR SEAL

WD08X10092

^$19.10

Temporarily Out of Stock.

819 — Diagram Number

Dishwasher CONSOLE VENT GASKET

WD08X22476

^$14.82

Add to Cart

820 — Diagram Number

Dishwasher SILVERWARE BASKET MOUNTING SUPPORT

WD01X10576

No Longer Available
Item has been replaced by
WD01X24424

845 — Diagram Number

Dishwasher DOOR GASKET

WD08X10090

No Longer Available
Item has been replaced by
WD08X21894

901 — Diagram Number

Dishwasher control panel assembly

WD34X11813

No Longer Available
Item has been replaced by
NLA ITEM

902 — Diagram Number

Dishwasher CONTROL SILICONE LIGHT PIPE

WD12X10441

No Longer Available
Item has been replaced by
NLA ITEM

903 — Diagram Number

Dishwasher USER INTERFACE BOARD

WD21X10488

^$94.71

Add to Cart

906 — Diagram Number

GE BADGE

WR04X10181

^$7.74

Add to Cart

910 — Diagram Number

Dishwasher BUTTON TREE

WD09X10082

^$12.50

Add to Cart
