MOTOR

(DBL333EB4WW)

19 Results

See Parts List

1-877-959-8688

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger  |  Change Section/Diagram

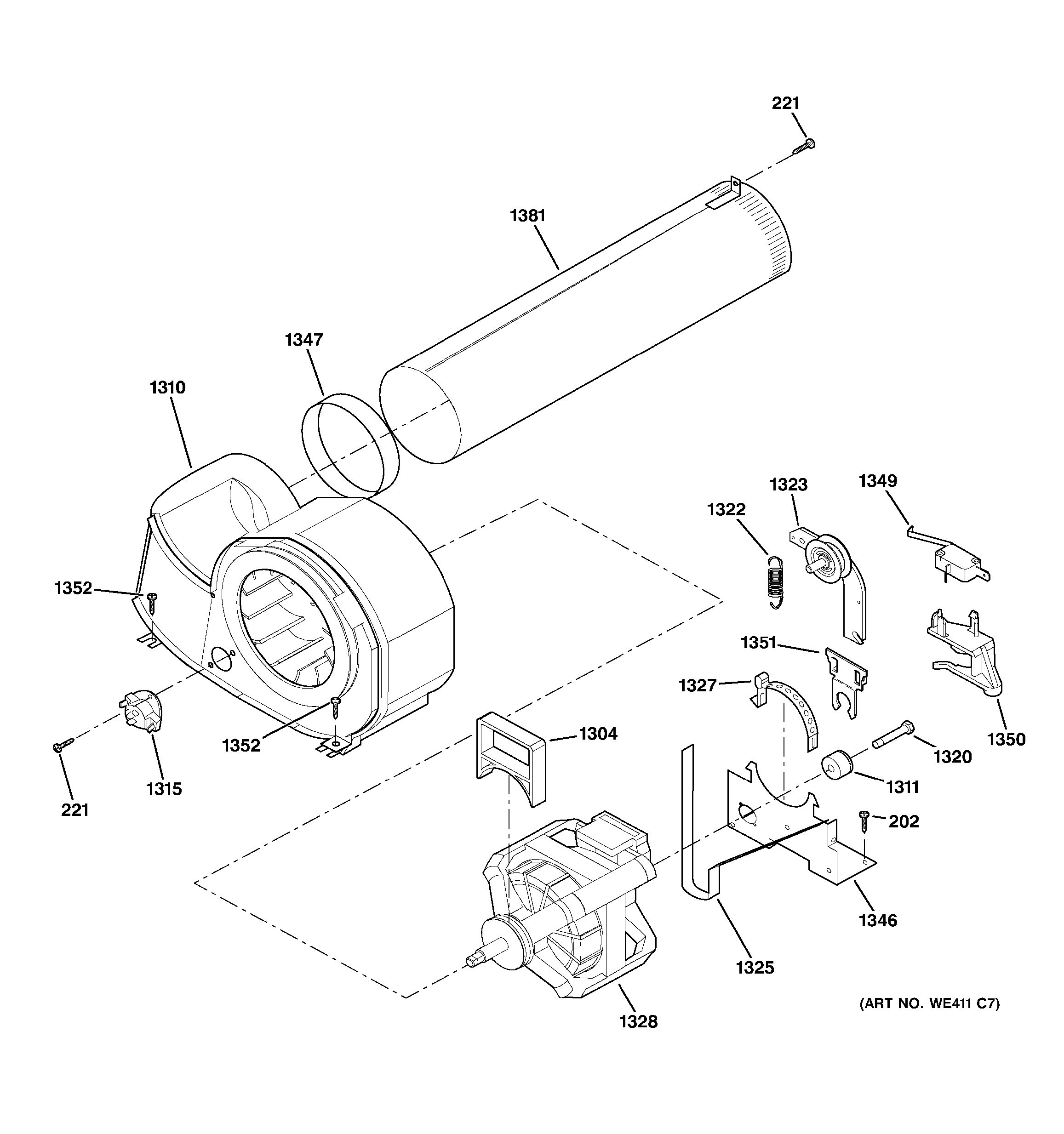

Use the diagram to find the number of the part you need.

Product Image
202 — Diagram Number
SCREW, QUAD 8-18 X 1/2

WH02X10013

No Longer Available
Item has been replaced by
NLA ITEM

221 — Diagram Number
SCREW, 8-18ABX.44

WH01X10004

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
1304 — Diagram Number
LOCKFAN HOUSING

WE01X10016

No Longer Available
Item has been replaced by
NLA ITEM

1310 — Diagram Number
BLOWER HOUSING ASM

WE14X10025

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
1311 — Diagram Number
SPACER-IDLER

WE01X10029

No Longer Available
Item has been replaced by
NLA ITEM

1315 — Diagram Number
THERMOSTAT-CONTROL

WE04X10028

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
1320 — Diagram Number
SCREW-SPACER,HEX HEAD ,1

WE02X10014

No Longer Available
Item has been replaced by
NLA ITEM

1322 — Diagram Number
IDLER SPRING

WE01X10027

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
1323 — Diagram Number
ASMY-IDLER BRKT & PULLEY

WE01X10152

No Longer Available
Item has been replaced by
NLA ITEM

1325 — Diagram Number
Dryer Drum Drive Belt

WE12X10009

$73.60

Temporarily Out of Stock.

Product Image
1327 — Diagram Number
CLAMP-MOTOR

WE01X10003

No Longer Available

Temporarily Out of Stock.

1328 — Diagram Number
Dryer Motor and Pulley

WE17X10002

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
1346 — Diagram Number
BRACKET-MOTOR

WE13X10026

No Longer Available
Item has been replaced by
NLA ITEM

1347 — Diagram Number
SEAL EXHAUST TUBE

WE09X10003

No Longer Available
Item has been replaced by
NLA ITEM

1349 — Diagram Number
SWITCH-BELT

WE04X10096

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
1350 — Diagram Number
BRACKET-BELT SWITCH

WE13X10008

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
1351 — Diagram Number
CLIP-RETENTION

WE02X10053

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
1352 — Diagram Number
SCREW-BRACKET 10-16X.625

WH02X10028

No Longer Available
Item has been replaced by
NLA ITEM

Product Image
1381 — Diagram Number
ASM-BURNER TUBE/SENSOR

WE14X10007

No Longer Available
Item has been replaced by
NLA ITEM
