CABINET & DRUM

(DBL333EB4WW)

29 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

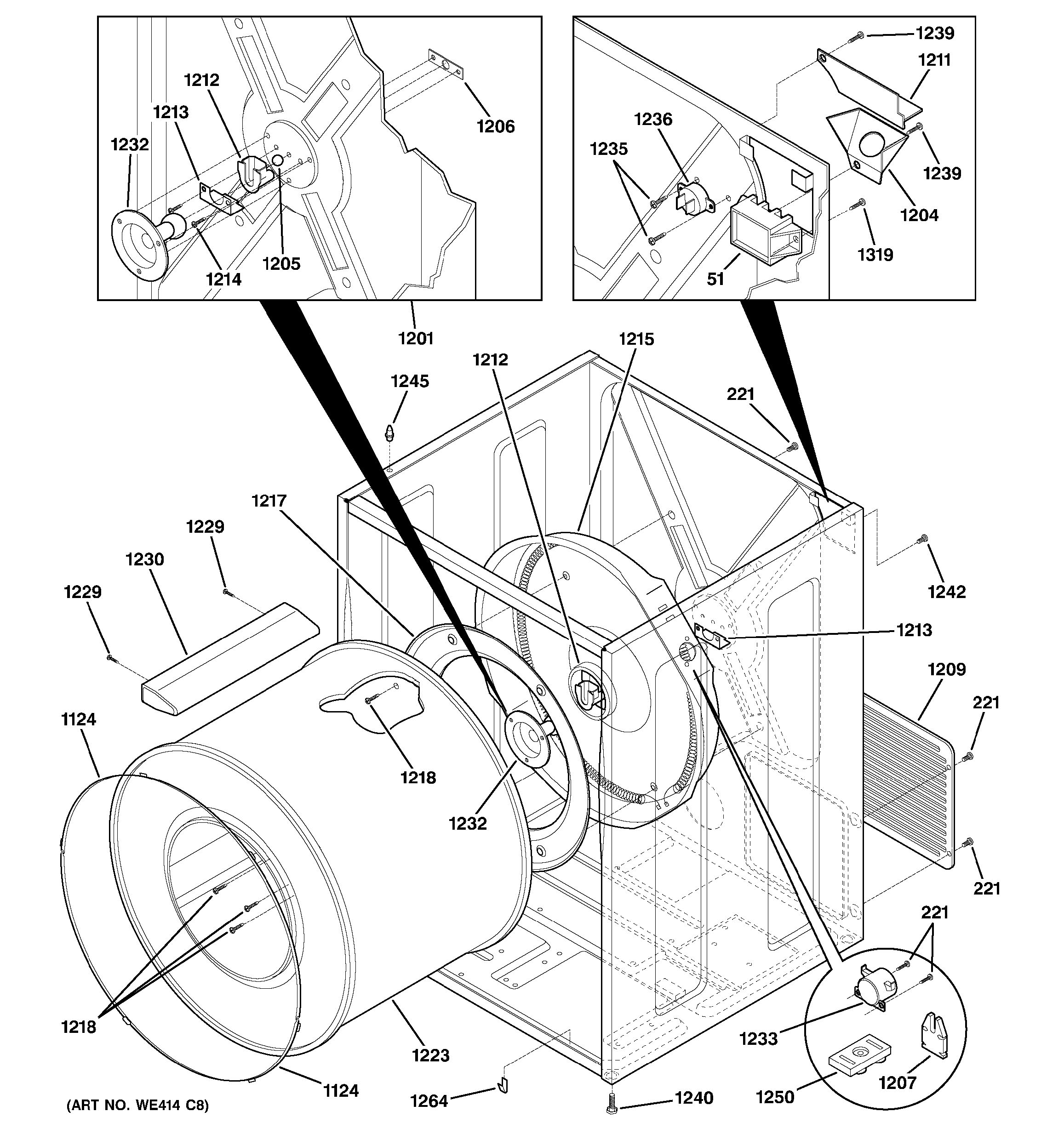

Use the diagram to find the number of the part you need.

51 — Diagram Number

BLOCK-TERMINAL

WE04X10095

No Longer Available
Item has been replaced by
NLA ITEM

221 — Diagram Number

SCREW, 8-18ABX.44

WH01X10004

No Longer Available
Item has been replaced by
NLA ITEM

1124 — Diagram Number

DRYER DRUM GLIDE/BEARING

WE03X10007

^$64.49

Add to Cart

1201 — Diagram Number

DRYER REAR BEARING KIT

WE25X10001

^$129.50

Add to Cart

1204 — Diagram Number

BRACKET-CORD

WE13X10010

No Longer Available
Item has been replaced by
NLA ITEM

1205 — Diagram Number

BALL

WE01X1152

No Longer Available
Item has been replaced by
NLA ITEM

1207 — Diagram Number

INSULATOR,HEATER HSG

WE04X10026

No Longer Available
Item has been replaced by
NLA ITEM

1209 — Diagram Number

ACCESS PANEL

WE20X10009

No Longer Available

Temporarily Out of Stock.

1211 — Diagram Number

COVER-TERM BLOCK

WE20X10005

No Longer Available
Item has been replaced by
NLA ITEM

1212 — Diagram Number

BEARING-SHAFT

WE03X10002

No Longer Available
Item has been replaced by
NLA ITEM

1213 — Diagram Number

DRYER BEARING BRACKET

WE13X10009

No Longer Available
Item has been replaced by
WE13X28680

1214 — Diagram Number

SCREW-BRACKET,10-16B X 1

WE02X10005

No Longer Available
Item has been replaced by
NLA ITEM

1215 — Diagram Number

Dryer Heating Element and Housing Assembly

WE14X10015

No Longer Available
Item has been replaced by
NLA ITEM

1217 — Diagram Number

BAFFLE-HEATER

WE14X0202

No Longer Available
Item has been replaced by
NLA ITEM

1218 — Diagram Number

Dryer Screw 10-16 X 375

WE02X10006

No Longer Available
Item has been replaced by
NLA ITEM

1223 — Diagram Number

DRUM ASSEMBLY

WE21X10013

No Longer Available
Item has been replaced by
NLA ITEM

1229 — Diagram Number

SCREW-VANE,QUADREX HEAD

WE02X10007

No Longer Available
Item has been replaced by
NLA ITEM

1230 — Diagram Number

VANE DRUM

WE21X0069

No Longer Available
Item has been replaced by
NLA ITEM

1232 — Diagram Number

DRYER SUPPORT SHAFT

WE13X10011

^$101.54

Add to Cart

1233 — Diagram Number

THERMOSTAT-SAFETY

WE04X10002

No Longer Available
Item has been replaced by
WE4X757

1235 — Diagram Number

SCREW 6-20 X .230

WE02X10033

No Longer Available
Item has been replaced by
NLA ITEM

1236 — Diagram Number

THERMAL LIMITER

WE04X10094

^$68.87

Temporarily Out of Stock.

1239 — Diagram Number

SCREW 8-18 X .375

WE02X10011

No Longer Available
Item has been replaced by
NLA ITEM

1240 — Diagram Number

FOOT-CABINET

WE02X10056

No Longer Available
Item has been replaced by
NLA ITEM

1242 — Diagram Number

SCREWN 8-18 AB X .44

WH02X10038

No Longer Available
Item has been replaced by
NLA ITEM

1245 — Diagram Number

PIN-LOCATING

WE01X10035

No Longer Available

Temporarily Out of Stock.

1250 — Diagram Number

BLOCK-TERMINAL,HEATER HS

WE04X10027

No Longer Available
Item has been replaced by
NLA ITEM

1264 — Diagram Number

DRYER BOTTOM CLIP

WE02X10013

No Longer Available
Item has been replaced by
NLA ITEM

1319 — Diagram Number

SCREW-DOOR,10-16X.75

WE02X10017

No Longer Available
Item has been replaced by
NLA ITEM
