FRESH FOOD SHELVES

(CYE22TSHPSS)

25 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

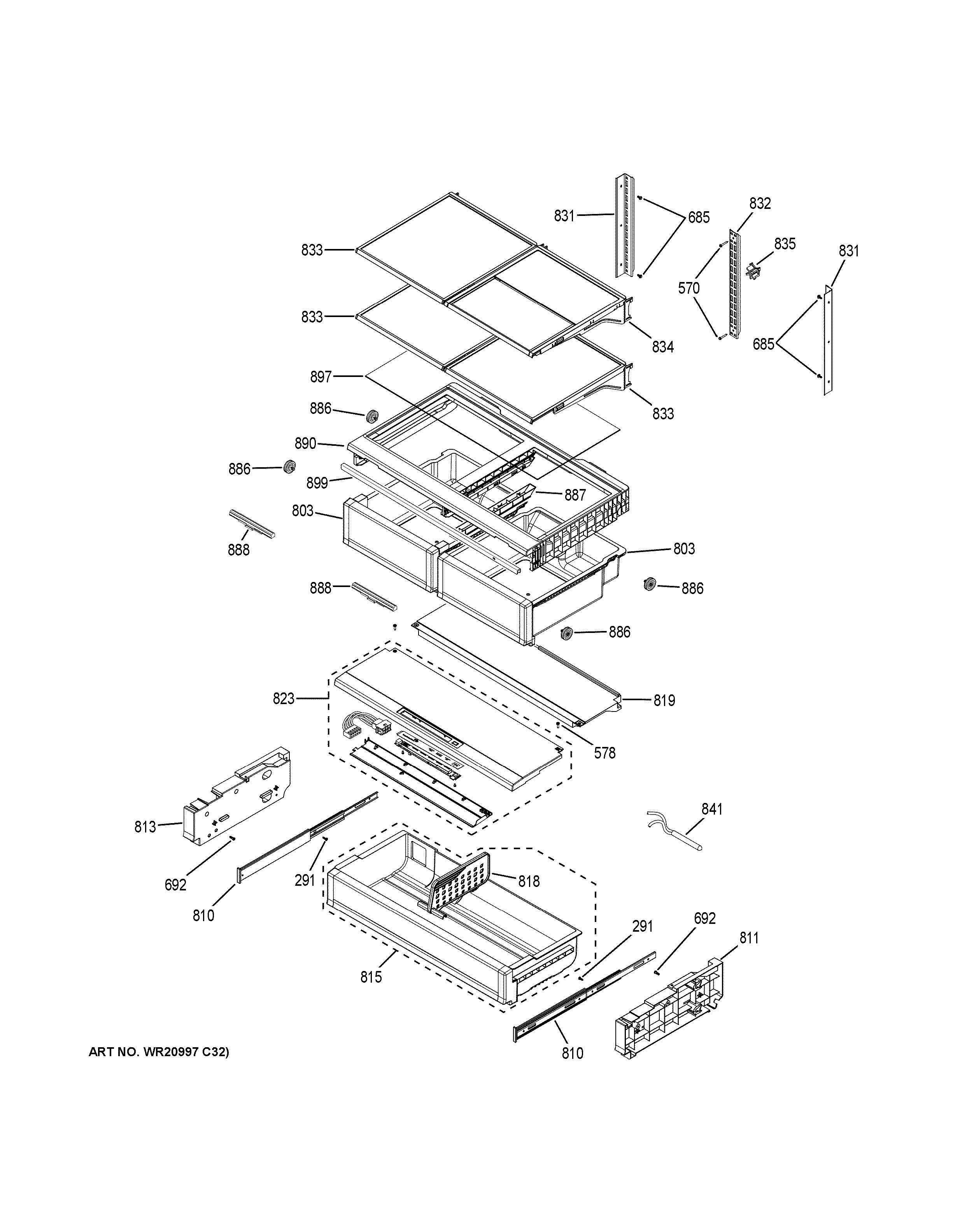

Use the diagram to find the number of the part you need.

291 — Diagram Number

SCR 8-10 PL PNP 1/2 S

WR01X10649

^$5.46

Add to Cart

570 — Diagram Number

Screw

WR01X1757

No Longer Available
Item has been replaced by
WR01X10626

578 — Diagram Number

Refrigerator 1/4" hex head approx. 9/16" long mounting screw used in multiple locations

WR01X11012

^$6.07

Add to Cart

685 — Diagram Number

SCREW, ICE SHELF

WR01X1804

No Longer Available
Item has been replaced by
WR01X10606

692 — Diagram Number

SCREW 8-18 AB HXW 3/4

WZ04X0416

^$350.00

Temporarily Out of Stock.

803 — Diagram Number

Refrigerator vegetable pan assembly-left

WR32X24228

No Longer Available
Item has been replaced by
WR32X32031

810 — Diagram Number

SLIDE ASM MEAT PAN

WR72X23063

No Longer Available
Item has been replaced by
WR72X29093

811 — Diagram Number

Refrigerator support slide - right

WR72X10456

^$35.28

Add to Cart

813 — Diagram Number

Refrigerator support slide - left

WR72X10461

^$39.21

Add to Cart

815 — Diagram Number

Refrigerator meat pan assembly

WR32X24232

No Longer Available
Item has been replaced by
WR32X32028

818 — Diagram Number

Refrigerator meat pan divider

WR17X13193

^$16.41

Add to Cart

819 — Diagram Number

COVER MP TOP BACK

WR72X23040

No Longer Available
Item has been replaced by
WR72X31329

823 — Diagram Number

COVER MP FRONT ASSEMBLY

WR32X24044

^$540.63

Add to Cart

831 — Diagram Number

TRACK SIDE FF

WR72X21071

^$14.60

Add to Cart

832 — Diagram Number

Refrigerator center track mounted to the fresh food liner for adjustable shelves to mount on

WR72X10429

^$24.16

Add to Cart

833 — Diagram Number

Refrigerator shelf assembly with trim

WR32X24234

No Longer Available
Item has been replaced by
WR32X32029

834 — Diagram Number

Refrigerator tuck away shelf assembly

WR32X24235

No Longer Available
Item has been replaced by
WR32X32035

835 — Diagram Number

Refrigerator fresh food center cant track support spacer. Located on the back of the fresh food

WR02X13679

^$6.09

Add to Cart

841 — Diagram Number

SENSOR TEMPERATURE

WR55X11141

No Longer Available
Item has been replaced by
WR55X10025

886 — Diagram Number

Refrigerator fresh food bin roller mounted to supports

WR02X13658

^$6.13

Add to Cart

887 — Diagram Number

Refrigerator vegetable pan roller guide

WR72X10447

^$8.68

Add to Cart

888 — Diagram Number

DAMPER VEG PAN

WR17X24925

^$6.37

Add to Cart

890 — Diagram Number

Refrigerator art frame VP assembly

WR32X10910

^$111.35

Temporarily Out of Stock.

897 — Diagram Number

Refrigerator glass vegetable pan

WR32X10911

^$24.15

Add to Cart

899 — Diagram Number

Refrigerator Reinforcement Bar

WR02X21803

^$22.58

Add to Cart
