ICE MAKER & DISPENSER

(CYE22TP2MES1)

26 Results

See Parts List

Parts Questions? Call 1-877-959-8688
Mon–Fri 8:00 am – 8pm EST

View Larger | Change Section/Diagram

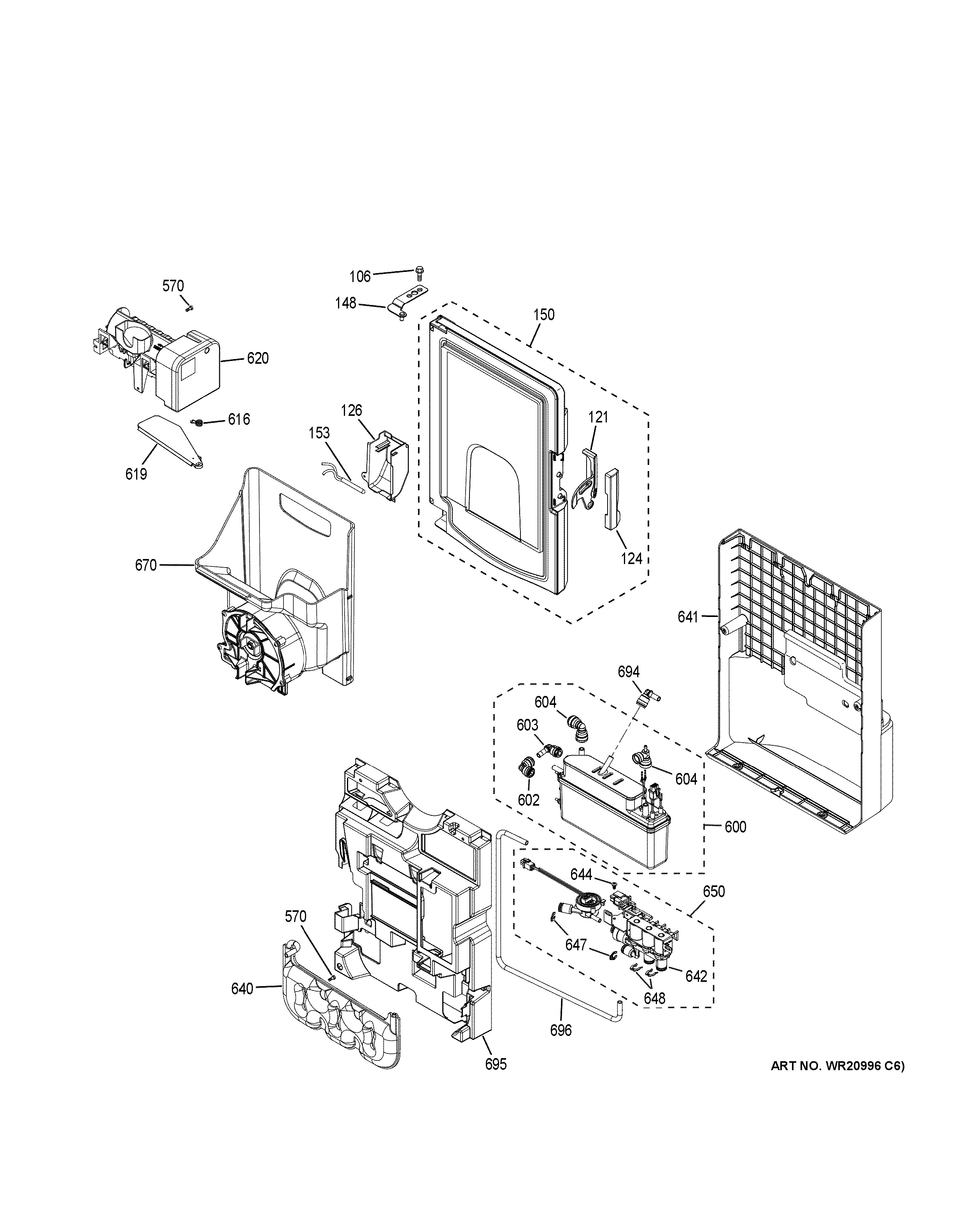

Use the diagram to find the number of the part you need.

106 — Diagram Number

Refrigerator white 1/2" long T15 Torx head screw

WR01X11054

^$6.07

Add to Cart

121 — Diagram Number

Refrigerator icebox latch door

WR11X10031

^$6.32

Add to Cart

124 — Diagram Number

Refrigerator left fresh food door ice box door latch handle cover

WR02X23032

^$6.17

Add to Cart

126 — Diagram Number

Refrigerator fresh food left door, inside the ice box, white cover that hides both electrical connectors for the icemaker and auger motor

WR17X13067

No Longer Available
Item has been replaced by
WR17X32870

148 — Diagram Number

Refrigerator top hinge for ice box door in left fresh food door

WR13X10972

^$13.37

Temporarily Out of Stock.

150 — Diagram Number

FGICEBOX DOOR ASM

WR78X25914

No Longer Available
Item has been replaced by
WR78X26087

153 — Diagram Number

SENSOR TEMPERATURE

WR55X11142

No Longer Available
Item has been replaced by
WR55X10025

570 — Diagram Number

Screw

WR01X1757

No Longer Available
Item has been replaced by
WR01X10626

600 — Diagram Number

TANK HOT WATER ASM

WR17X26291

^$260.62

Add to Cart

602 — Diagram Number

Refrigerator connector 90 degree 5/16 HT

WR02X13753

^$11.80

Add to Cart

603 — Diagram Number

Refrigerator connector 5/6 stem HT

WR02X13754

^$26.41

Add to Cart

604 — Diagram Number

Refrigerator connector 90 3/8-5/16 HT

WR02X13755

^$14.16

Add to Cart

616 — Diagram Number

SPRING FEELER ARM

WR29X10112

No Longer Available
Item has been replaced by
WR01X11033

619 — Diagram Number

Refrigerator freezer shelves section ice maker feeler arm

WR29X10110

^$31.98

Add to Cart

620 — Diagram Number

FGICEMAKER

WR30X29369

No Longer Available
Item has been replaced by
WR49X31524

640 — Diagram Number

REFRIGERATOR COILED COLD WATER TANK

WR17X27627

^$37.76

Add to Cart

641 — Diagram Number

FGCOVER VALVE AND TANK ASM

WR02X28026

No Longer Available
Item has been replaced by
WR13X24981

642 — Diagram Number

VALVE TRI WATER

WR57X10101

No Longer Available
Item has been replaced by
WR57X10102

644 — Diagram Number

Refrigerator screw M4X1.59 MCH P 10MM S

WR01X11019

^$5.90

Temporarily Out of Stock.

647 — Diagram Number

Refrigerator Security clip for 1/4" water line quick connectors

WR01X11041

^$6.11

Add to Cart

648 — Diagram Number

Refrigerator quick clip connecter 5/16

WR01X11040

^$6.07

Add to Cart

650 — Diagram Number

VALVE TRI WATER W FM ASM

WR57X24974

^$140.82

Add to Cart

670 — Diagram Number

ICE BUCKET & CRUSHER

WR30X10174

^$232.69

Add to Cart

694 — Diagram Number

CONNECTOR 5/16 STEM HT

WR02X24977

^$9.32

Add to Cart

695 — Diagram Number

HOUSING TRAY VALVE TANK

WR13X25912

^$26.73

Add to Cart

696 — Diagram Number

TUBE 3WAY VALVE TO HOT WATER TANK

WR02X24975

^$9.32

Add to Cart
