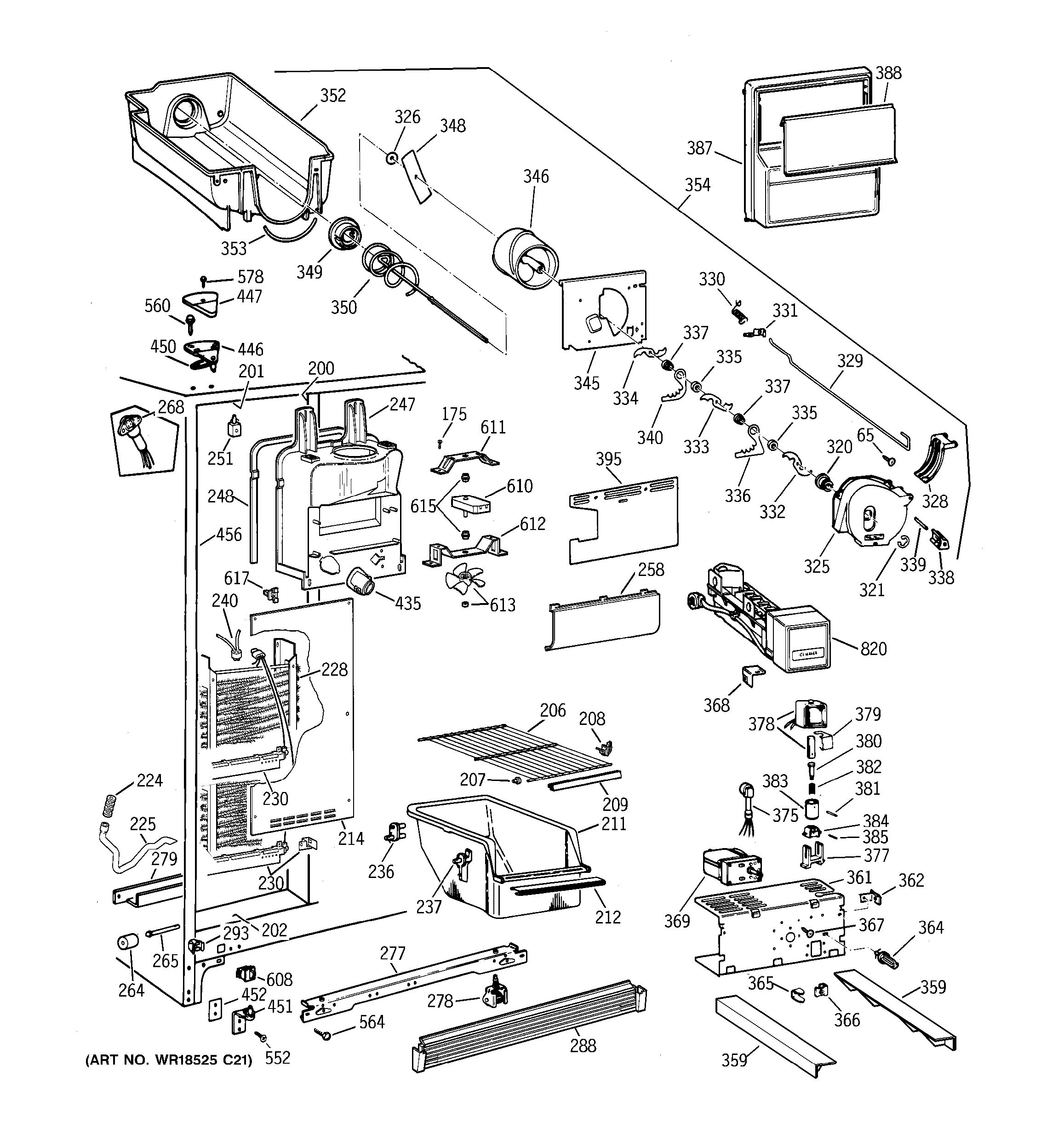

Assembly View for FREEZER SECTION

65 — Diagram Number

SCREW 8-15 A PA 3/8 SS

WZ04X0230

No Longer Available
Item has been replaced by
WZ4X230D

175 — Diagram Number

SCREW 8-18 AB IHW 5/8 S

WR01X10035

No Longer Available
Item has been replaced by
WR01X10652

200 — Diagram Number

BREAKER STRIP R/S FZ

WR40X1741

No Longer Available

Temporarily Out of Stock.

201 — Diagram Number

BREAKER STRIP TOP FZ

WR40X1742

No Longer Available

Temporarily Out of Stock.

202 — Diagram Number

BREAKER STRIP BTM FZ

WR40X1743

No Longer Available

Temporarily Out of Stock.

206 — Diagram Number

FREEZER SHELF

WR71X1888

No Longer Available
Item has been replaced by
NLA ITEM

207 — Diagram Number

GROMMET SHELF

WR02X4676

No Longer Available
Item has been replaced by
NLA ITEM

208 — Diagram Number

SUPPORT SHELF

WR02X4674

No Longer Available
Item has been replaced by
NLA ITEM

212 — Diagram Number

TRIM HANDLE BASKET FZ

WR17X4036

No Longer Available

Temporarily Out of Stock.

214 — Diagram Number

CLIP EVAP COVER

WR01X10064

No Longer Available

Temporarily Out of Stock.

225 — Diagram Number

TUBE DRAIN

WR02X10395

No Longer Available

Temporarily Out of Stock.

228 — Diagram Number

LOW SIDE ASM

WR85X0282

No Longer Available
Item has been replaced by
WR87X28949

230 — Diagram Number

Refrigerator Defrost Heater and Thermostat Kit

WR51X10031

No Longer Available
Item has been replaced by
NLA ITEM

230 — Diagram Number

HEATER & BRACKET ASM

WR51X10032

No Longer Available
Item has been replaced by
WR51X10101

237 — Diagram Number

SUPPORT BASKET-FRONT

WR02X7036

No Longer Available
Item has been replaced by
NLA ITEM

240 — Diagram Number

THERMOSTAT DEF

WR50X0122

No Longer Available
Item has been replaced by
WR50X122

247 — Diagram Number

ORIFICE EVAP FAN

WR17X10226

No Longer Available

Temporarily Out of Stock.

258 — Diagram Number

Refrigerator Light Lens

WR17X3484

No Longer Available
Item has been replaced by
NLA ITEM

264 — Diagram Number

REAR ROLLER

WR02X3594

No Longer Available
Item has been replaced by
WR2X3594

265 — Diagram Number

AXLE WHEEL REAR

WR02X4742

No Longer Available
Item has been replaced by
WR2X3595

268 — Diagram Number

IM RECEPTACLE

WR23X0312

No Longer Available
Item has been replaced by
NLA ITEM

277 — Diagram Number

RAIL MACH MTG FRT

WR17X3136

No Longer Available

Temporarily Out of Stock.

279 — Diagram Number

RAIL MACH MTG REAR

WR17X10437

No Longer Available

Temporarily Out of Stock.

288 — Diagram Number

GRILLE BASE WH

WR74X0217

No Longer Available
Item has been replaced by
NLA ITEM

321 — Diagram Number

RETAINER RING E

WR01X1367

No Longer Available
Item has been replaced by
WR1X1367D

325 — Diagram Number

HOUSING CRUSHER DISPLAY

WR17X2061

^$32.34

Add to Cart

326 — Diagram Number

WASHER

WR01X1366

No Longer Available
Item has been replaced by
WR1X1366D

328 — Diagram Number

DEFLECTOR ICE DISP

WR17X2059

No Longer Available
Item has been replaced by
NLA ITEM

328 — Diagram Number

SPRING ICE DEFLECTOR

WR02X4561

No Longer Available
Item has been replaced by
WR2X4561

328 — Diagram Number

PIN DEFLECTOR DISP

WR02X4143

No Longer Available
Item has been replaced by
WR2X4143

329 — Diagram Number

WIRE ACTUATOR DISP

WR17X2060

No Longer Available

Temporarily Out of Stock.

330 — Diagram Number

SPRING DEFLECTOR

WR02X4145

No Longer Available
Item has been replaced by
NLA ITEM

331 — Diagram Number

RETAINER ACTUATOR WIRE

WR02X4251

No Longer Available
Item has been replaced by
NLA ITEM

332 — Diagram Number

BLADES MOVING DISPLAY

WR17X1361

^$10.00

Add to Cart

333 — Diagram Number

BLADES MOVING DISPLAY

WR17X1362

^$14.16

Add to Cart

334 — Diagram Number

BLADES MOVING DISPLAY

WR17X1363

^$8.66

Add to Cart

337 — Diagram Number

SPACER CRUSHER STATIONAR

WR02X4138

No Longer Available
Item has been replaced by
WR2X4138

338 — Diagram Number

BLADE REST DISP

WR02X4140

No Longer Available
Item has been replaced by
WR2X4140

340 — Diagram Number

REFRIGERATOR ICE CRUSHER STATIONARY BLADE

WR17X2058

^$12.02

Add to Cart

345 — Diagram Number

Ice bucket front plate

WR17X2760

No Longer Available
Item has been replaced by
NLA ITEM

346 — Diagram Number

Refrigerator Front Helix

WR17X4207

^$32.25

Add to Cart

348 — Diagram Number

BLADE IN DISP

WR02X7351

No Longer Available
Item has been replaced by
NLA ITEM

349 — Diagram Number

CUP DRIVE DISPENSER

WR02X4550

No Longer Available
Item has been replaced by
WR2X4550

350 — Diagram Number

AUGER HELIX DISP (1 PC)

WR17X4309

No Longer Available
Item has been replaced by
NLA ITEM

352 — Diagram Number

BUCKET ICE DISP

WR30X0257

No Longer Available
Item has been replaced by
WR30X257

353 — Diagram Number

BUCKET SEAL DISP

WR02X7905

No Longer Available
Item has been replaced by
WR2X7905

354 — Diagram Number

Refrigerator Ice Bucket Assembly

WR17X4310

^$385.30

Add to Cart

359 — Diagram Number

Refrigerator ice bucket shelf, left hand side

WR71X10196

No Longer Available

Temporarily Out of Stock.

359 — Diagram Number

Refrigerator ice bucket shelf, right hand side

WR71X10197

No Longer Available

Temporarily Out of Stock.

365 — Diagram Number

DRIVE AUGER DISPENSER

WR02X4854

No Longer Available
Item has been replaced by
NLA ITEM

366 — Diagram Number

NUT J

WR01X1547

No Longer Available
Item has been replaced by
NLA ITEM

367 — Diagram Number

SCREW MOTOR MOUNT

WR01X1788

No Longer Available
Item has been replaced by
WR01X10618

369 — Diagram Number

MOTOR CRUSHER DISP

WR60X0202

No Longer Available
Item has been replaced by
WR60X10262

377 — Diagram Number

SADDLE SOLENOID

WR02X7309

No Longer Available
Item has been replaced by
WR2X7309

378 — Diagram Number

SOLENOID ARM ASM

WR62X0058

No Longer Available
Item has been replaced by
WR62X23154

379 — Diagram Number

Refrigerator Shroud Solenoid

WR17X1063

^$5.00

Add to Cart

380 — Diagram Number

Refrigerator Ice Crusher Solenoid Plunger

WR17X1064

No Longer Available
Item has been replaced by
WR62X26536

381 — Diagram Number

PIN SPIRAL

WR02X4257

No Longer Available
Item has been replaced by
WR62X26536

382 — Diagram Number

SPRING SOLENOID LINKAGE

WR02X4258

No Longer Available
Item has been replaced by
WR62X26536

383 — Diagram Number

COLLAR SOLENOID DISPLAY

WR17X1065

No Longer Available
Item has been replaced by
WR62X26536

384 — Diagram Number

STIRRUP SOLENOID DISPLAY

WR17X1066

No Longer Available
Item has been replaced by
WR62X26536

385 — Diagram Number

PIN SPIRAL

WR02X4259

No Longer Available
Item has been replaced by
WR62X26536

387 — Diagram Number

COVER BUCKET ASM

WR17X10375

No Longer Available

Temporarily Out of Stock.

388 — Diagram Number

Ice maker - ice storage bucket door

WR17X10273

No Longer Available
Item has been replaced by
NLA ITEM

395 — Diagram Number

SHIELD FAN

WR17X10220

No Longer Available

Temporarily Out of Stock.

435 — Diagram Number

SOCKET, LIGHT

WR02X9391

No Longer Available
Item has been replaced by
WR2X9391

435 — Diagram Number

Bulbs - 60W soft white - 2 pack

60A

No Longer Available
Item has been replaced by
40A15

435 — Diagram Number

LAMP 60W

STD372402

No Longer Available
Item has been replaced by
40A15

451 — Diagram Number

Refrigerator door hinge kit bottom pin and cam assembly

WR13X10020

^$45.85

Add to Cart

552 — Diagram Number

SCR 12-24 TT IH .975 S

WR01X10034

No Longer Available
Item has been replaced by
WR01X10600

560 — Diagram Number

Screw

WR01X2140

No Longer Available
Item has been replaced by
NLA ITEM

578 — Diagram Number

SCREW 8-32 X 3/8

WZ02X0464

No Longer Available
Item has been replaced by
WZ2X464D

608 — Diagram Number

SWITCH LIGHT WH

WR23X0368

No Longer Available
Item has been replaced by
WR23X427

610 — Diagram Number

MOTOR EVAP FAN

WR60X10007

No Longer Available
Item has been replaced by
WR60X10008

611 — Diagram Number

BRACKET EVAP FAN SM.

WR02X10100

No Longer Available
Item has been replaced by
NLA ITEM

612 — Diagram Number

BRACKET EVAP FAN LG.

WR02X10101

No Longer Available
Item has been replaced by
NLA ITEM

613 — Diagram Number

BLADE EVAP FAN ASM

WR60X10011

No Longer Available
Item has been replaced by
NLA ITEM

613 — Diagram Number

COMP. RING, EVAP. FAN

WR02X3198

No Longer Available
Item has been replaced by
WR60X114

615 — Diagram Number

Refrigerator Grommet

WR02X10098

^$6.07

Add to Cart

617 — Diagram Number

WASHING MACHINE GROMMET SCR CLOSED

WR02X8349

No Longer Available
Item has been replaced by
WR2X8349

820 — Diagram Number

IM CRESCENT

WR30X0327

No Longer Available
Item has been replaced by
WR30X10093

FREEZER SECTION

(CSX22GRBKWW)

81 Results
