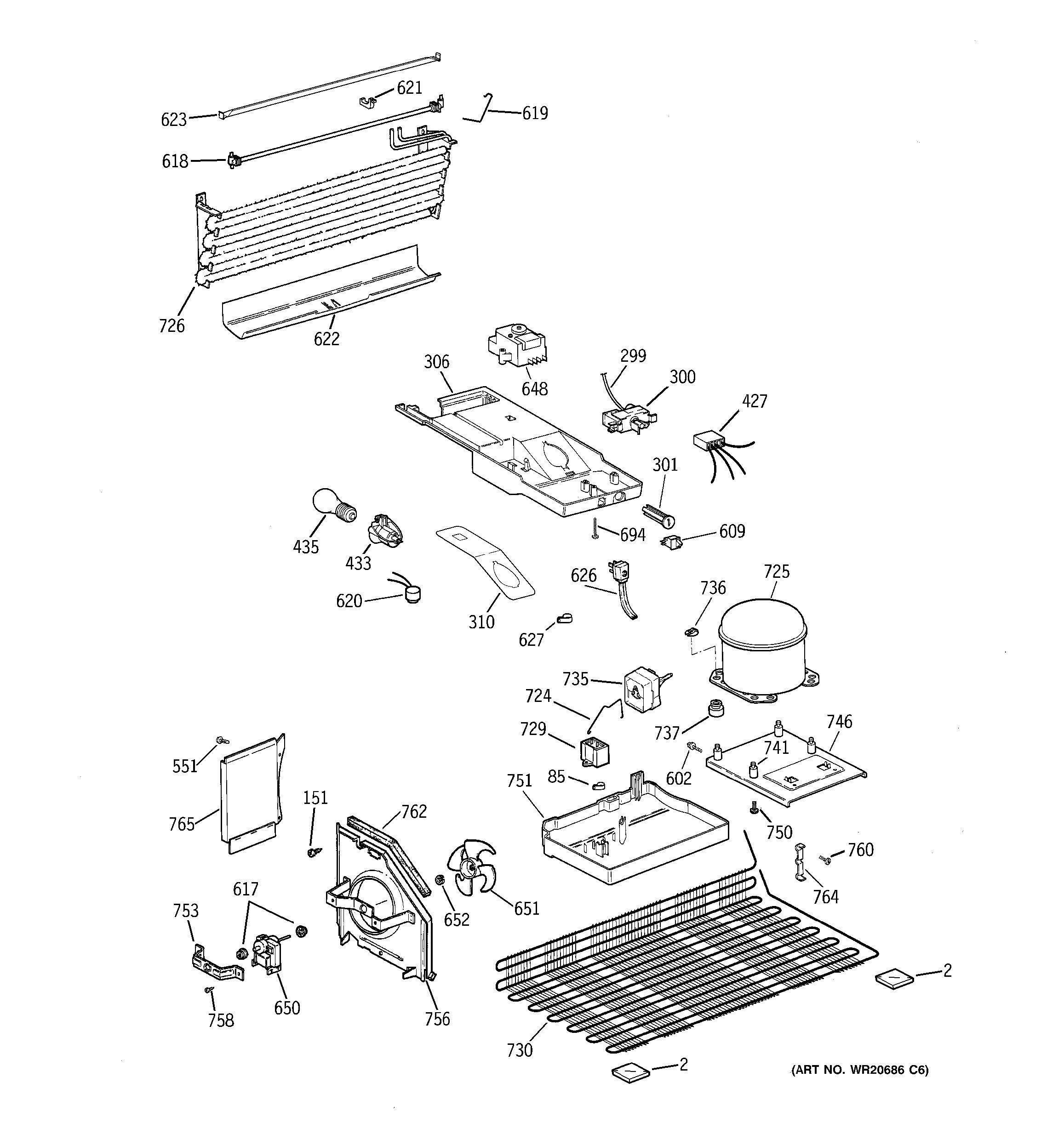

Assembly View for UNIT PARTS

2 — Diagram Number

REFRIGERATOR CONDENSER FELT TAPE

WR02X10534

No Longer Available
Item has been replaced by
NLA ITEM

151 — Diagram Number

Refrigerator Screw

WR01X10588

^$6.07

Add to Cart

299 — Diagram Number

SLEEVE VINYL

WR02X8344

No Longer Available
Item has been replaced by
WR2X8344

300 — Diagram Number

CONTROL TEMP

WR09X10042

No Longer Available
Item has been replaced by
WR09X20002

301 — Diagram Number

KNOB CONTROL

WR02X13355

No Longer Available
Item has been replaced by
NLA ITEM

306 — Diagram Number

HOUSING CONTROL

WR17X12852

^$51.12

Add to Cart

310 — Diagram Number

SHIELD REFLECTOR

WR02X11597

No Longer Available

Temporarily Out of Stock.

427 — Diagram Number

HARNESS CONT MODULE

WR23X10502

No Longer Available
Item has been replaced by
NLA ITEM

433 — Diagram Number

SOCKET & TERMINAL ASM

WR02X11460

No Longer Available
Item has been replaced by
WR02X10591

435 — Diagram Number

Bulb - 40 watt

40A15

^$6.20

Add to Cart

551 — Diagram Number

Refrigerator 8-18 ab rndw 5/8 Screw

WR01X10789

^$5.67

Add to Cart

602 — Diagram Number

SCR 1/4-14 AB IHW 3/4 S

WR01X10592

No Longer Available
Item has been replaced by
WR01X10617

609 — Diagram Number

Refrigerator Light Switch

WR23X10143

No Longer Available
Item has been replaced by
WR23X37285

617 — Diagram Number

Refrigerator Grommet

WR02X10098

^$6.07

Add to Cart

618 — Diagram Number

Refrigerator Defrost Heater

WR51X10038

^$70.66

Temporarily Out of Stock.

619 — Diagram Number

HEATER CONDUCTION

WR51X10102

No Longer Available
Item has been replaced by
NLA ITEM

620 — Diagram Number

THERMOSTAT DEF

WR50X10078

No Longer Available
Item has been replaced by
WR50X10073

621 — Diagram Number

HOLDER ELEMENT ASM

WR02X10518

^$6.27

Add to Cart

622 — Diagram Number

TROUGH DRAIN

WR17X11657

No Longer Available

Temporarily Out of Stock.

623 — Diagram Number

SHIELD DRIP

WR17X12812

^$5.00

Temporarily Out of Stock.

626 — Diagram Number

CORD POWER ASM

WR23X10301

No Longer Available
Item has been replaced by
WR23X10300

627 — Diagram Number

CLAMP CABLE

WR01X5278

No Longer Available
Item has been replaced by
WR1X5278

648 — Diagram Number

Refrigerator Defrost Control

WR09X10049

No Longer Available
Item has been replaced by
WR9X502

650 — Diagram Number

MOTOR COND FAN ASM

WR60X10238

^$50.11

Add to Cart

650 — Diagram Number

FAN HOUSING ASM

WR17X12210

No Longer Available
Item has been replaced by
NLA ITEM

651 — Diagram Number

Refrigerator Condenser Fan Blade

WR60X10207

No Longer Available
Item has been replaced by
WR60X46085

652 — Diagram Number

Refrigerator Compression Ring

WR02X12149

^$6.07

Add to Cart

694 — Diagram Number

SCREW 8-19 HI/LO PNP SS

WR01X1792

No Longer Available
Item has been replaced by
NLA ITEM

724 — Diagram Number

CLIP RETAINER MEI

WR02X11999

^$13.26

Add to Cart

725 — Diagram Number

COMP. REPL. KIT R134A

WR87X10096

No Longer Available
Item has been replaced by
WR87X10224

726 — Diagram Number

EVAP LOW SIDE

WR85X10020

No Longer Available
Item has been replaced by
WR87X28948

729 — Diagram Number

CAPACITOR

WR62X0079

No Longer Available
Item has been replaced by
WR55X24064

730 — Diagram Number

COND TUBE & WIRE ASM

WR84X10077

No Longer Available
Item has been replaced by
NLA ITEM

735 — Diagram Number

OVERLOAD PTCR COMBO

WR07X10133

^$40.91

Add to Cart

736 — Diagram Number

CLIP COMPRESSOR MOUNT

WR02X8583

No Longer Available
Item has been replaced by
WR2X8583

737 — Diagram Number

GROMMET COMP MTG

WR02X7238

No Longer Available
Item has been replaced by
NLA ITEM

741 — Diagram Number

STUD MTG COMPR

WR01X1779

No Longer Available
Item has been replaced by
WR1X1779

746 — Diagram Number

REFRIGERATOR COMPRESSOR MOUNTING PLATE

WR17X10195

No Longer Available
Item has been replaced by
NLA ITEM

750 — Diagram Number

SCREW 10-32 TR 1/2

WR01X1786

No Longer Available
Item has been replaced by
WR1X1786

751 — Diagram Number

DPO DRAIN PAN

WR32X10455

No Longer Available
Item has been replaced by
NLA ITEM

753 — Diagram Number

Refrigerator Bracket for Condenser Fan

WR02X11863

^$6.07

Add to Cart

758 — Diagram Number

Screw 8-32 TT HXW 3/8 S

WR01X10860

^$6.07

Add to Cart

760 — Diagram Number

SCREW 8-32 CA HXW 1/2

WR01X10317

^$5.67

Add to Cart

760 — Diagram Number

SCREW 10-32 GX HXW 9/16 S

WR01X10641

No Longer Available
Item has been replaced by
NLA ITEM

762 — Diagram Number

BTM GRILL BAFFLE

WR14X0313

No Longer Available
Item has been replaced by
WR14X313

764 — Diagram Number

CLIP, CONDENSER MOUNT

WR02X9000

No Longer Available
Item has been replaced by
WR2X9000

765 — Diagram Number

BAFFLE FAN

WR17X10463

No Longer Available

Temporarily Out of Stock.

UNIT PARTS

(A3316ABSHRWW)

47 Results
